Chapter 14 PLC Function |C200 Series
14-5

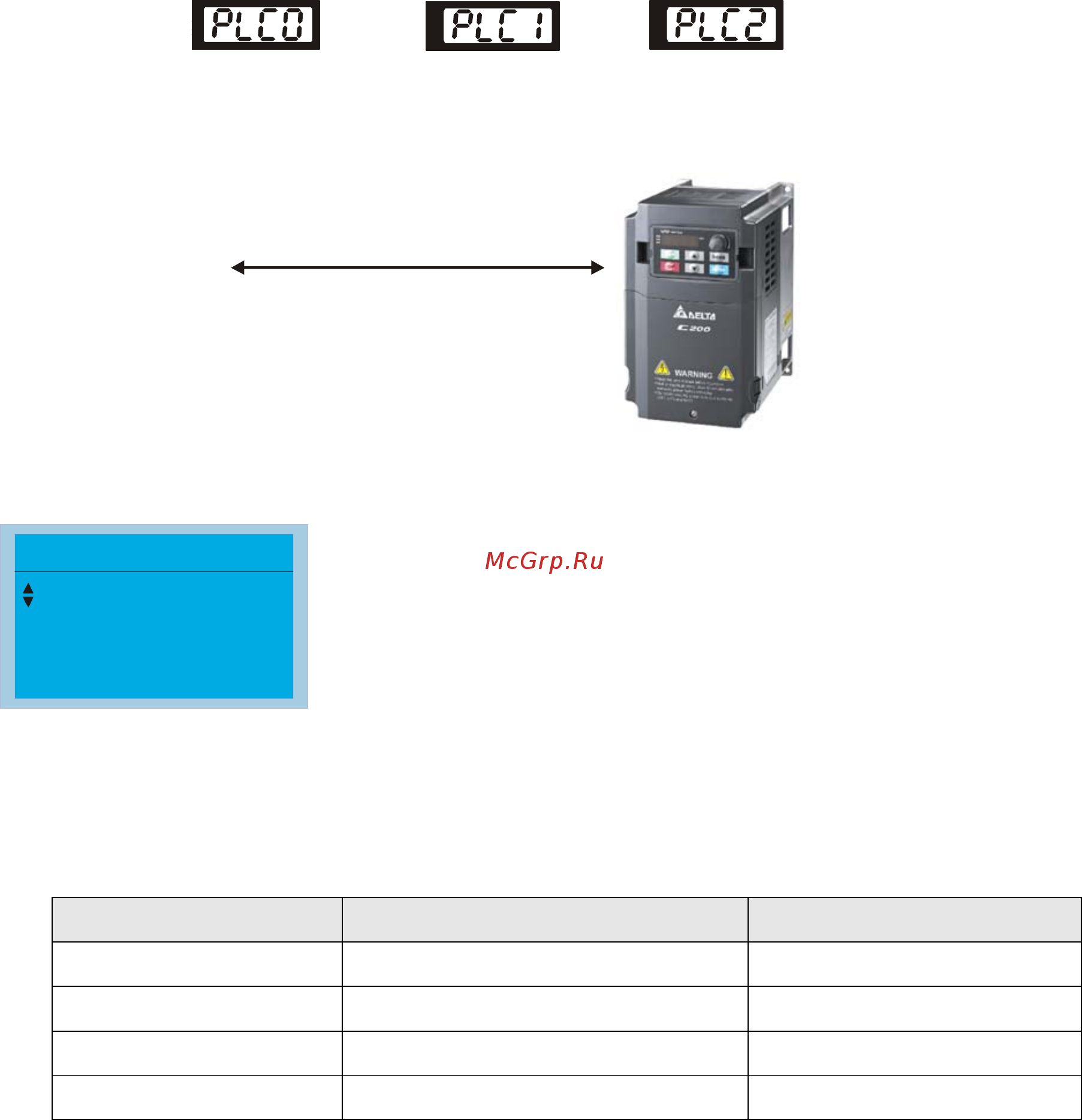

14.3 Start-up
14.3.1 The Steps for PLC Execution
Please operate PLC functions by following the steps indicate below:
When using KPC-CE01 series digital keypad, switch the mode to PLC2 for program
download/upload:
A. Press MODE key and select ‘PLC’.
B. Press ‘UP’ key and look for ‘PLC2’ then press ‘ENTER’.
C. If succeed, display ‘END’ for one to two seconds and return to ‘PLC2’ page.
The PLC warning that is displayed before program downloaded to C2000 can be ignored, please
continue the operation.
Disable
Run PLC
PLC Stop
iACdi
1. Connection: Connect RJ-45 of AC motor drive to the computer by using RS485.
RS485
C200
2. Run the program.
PLC
1.Disable
2.PLC Run
3.PLC Stop
PLC function, select function 2 (PLC Run).
1: Disable (PLC0)
2: PLC Run (PLC1)
3: PLC Stop (PLC2)
Optional accessories: Digital keypad KPC-CE01, display
PLC function as shown in the ( ).
When external input terminals (MI1~MI8) are set to PLC Mode select bit0 (51) or PLC Mode
select bit1 (52), it will force to switch to PLC mode regardless the terminal is ON or OFF.
Meanwhile, switching via keypad is disabled. Please refer to the chart below:
PLC Mode PLC Mode select bit1(52) PLC Mode select bit0 (51)
Disable (PLC 0) OFF OFF
PLC Run (PLC 1) OFF ON
PLC Stop (PLC 2) ON OFF
Previous state ON ON
When KPE-LE02 execute PLC function:
1. When switching the page from PLC to PLC1, it will execute PLC. The motion of PLC
