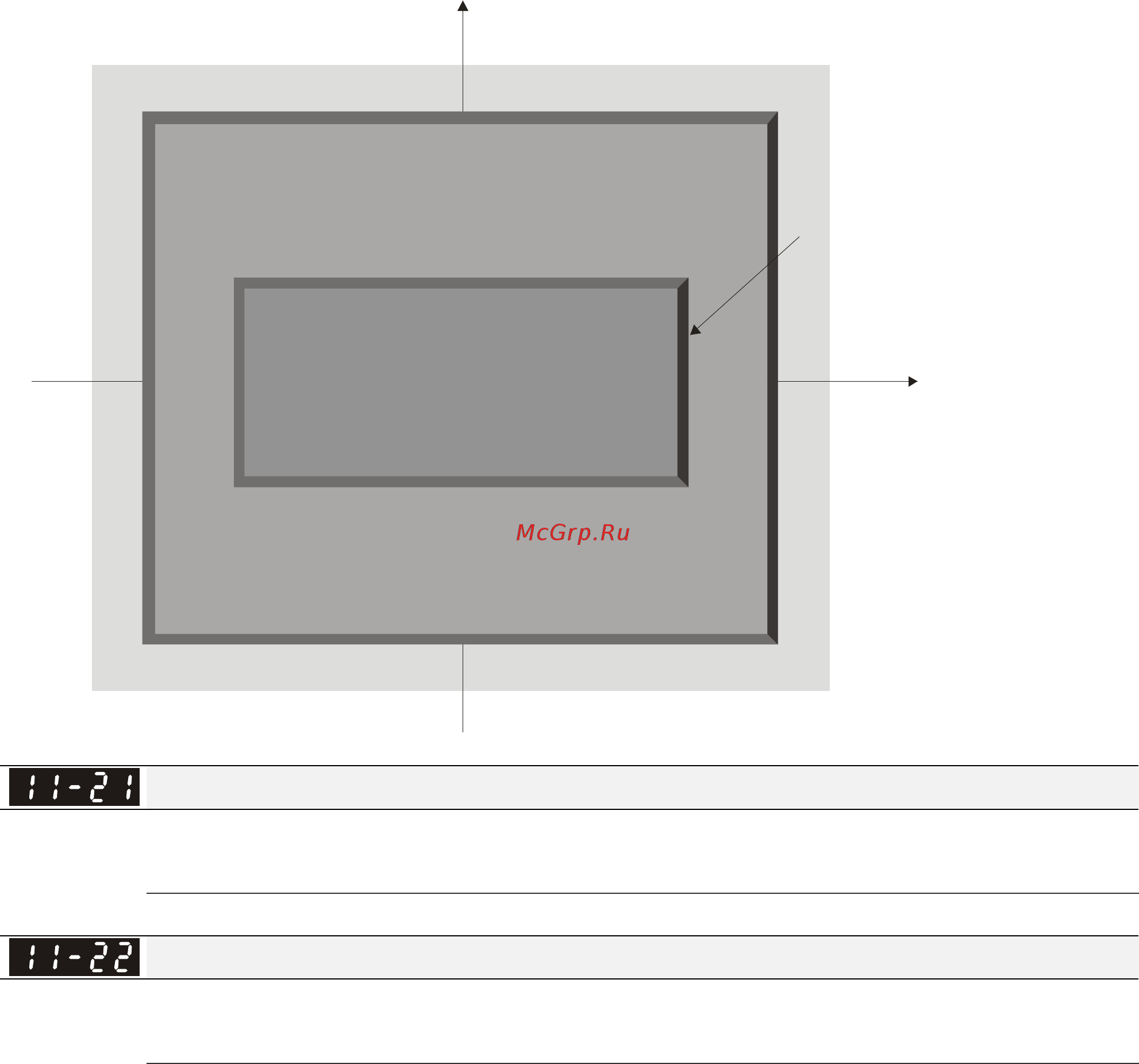

Chapter 11 Description of Parameter Settings|C200 Series
11-143
Positive
to rque
Negative
torque
speed
06-12 current limit
06-12 current limit
06-12 current limit 06-12 current limit
Reverse motor mode
Forward motor mode
Forward motor mode
Reverse motor mode
The level o f torque limit will be
th e min. va lu e of following thre e values
Exte rnal analog t erminals
Pr.03-00~02
7: positive torque limit
10: positive/negative torque limit
9: regen erative torque limit
External analog terminals
Pr.03-00~02
7: po sitive torque limit
10: positive/ne gative torque limit
External ana log termin als
Pr.03-00~03-02
8: negative torque limit
10: positive/negative torque limit
External analog terminals
Pr.03-00~03-02
8: negative torque limit
10: positive/ne gative torque limit
Pr.11-19
Reverse regenerative
torque limit
Pr.11-17
Forward motor
torque limit
Pr.11-18
Forward regenerative
torque limit
Pr.11-20
Reverse motor
torque limit
Quadrant I
Quadrant II
Quadrant III
Quadrant IV
speed
Gain Value of Flux Weakening Curve for Motor 1
Factory Setting: 90
Settings 0~200%
Gain Value of Flux Weakening Curve for Motor 2
Factory Setting: 90
Settings 0~200%
Pr.11-21 and 11-22 are used to adjust the output voltage of flux weakening curve.
For the spindle application, the adjustment method is
1. It is used to adjust the output voltage when exceeding rated frequency.
2. Monitor the output voltage
3. Adjust Pr.11-21 (motor 1) or Pr.11-22 (motor 2) setting to make the output voltage reach motor
rated voltage.
4. The larger number it is set, the larger output voltage you will get.
