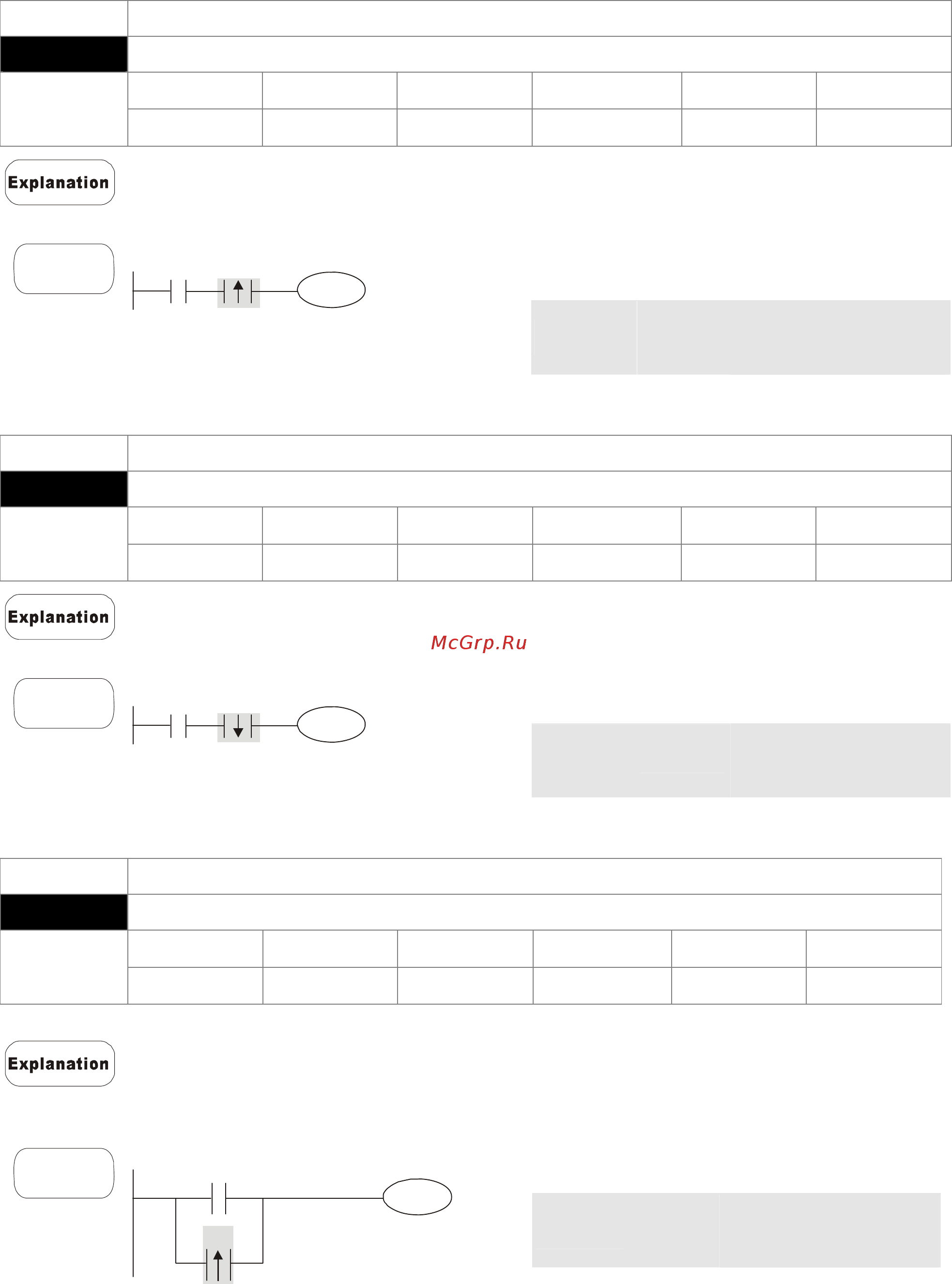

Chapter 14 PLC Function |C200 Series
14-36
Mnemonic Function
ANDP Rising-edge series connection
X0~X17 Y0~Y17 M0~M799 T0~159 C0~C79 D0~D399
Operand
9 9 9 9 9
－
ANDP command is used in the series connection of the contacts’ rising-edge detection.
Command code:
Operation:
LD X0
Load A contact of X0
ANDP
X1
X1 rising-edge
detection in series
connection
Example
Ladder diagram:
X1
Y1
X0
OUT Y1
Drive Y1 coil
Mnemonic Function
ANDF Falling-edge series connection
X0~X17 Y0~Y17 M0~M799 T0~159 C0~C79 D0~D399
Operand
9 9 9 9 9
－
ANDF command is used in the series connection of the contacts’ falling-edge detection.
Command code: Operation:
LD X0
Load A contact of X0
ANDF
X1
X1 falling-edge
detection in series
connection
Example
Ladder diagram:
X1
Y1
X0
OUT Y1
Drive Y1 coil
Mnemonic Function
ORP Rising-edge parallel connection
X0~X17 Y0~Y17 M0~M799 T0~159 C0~C79 D0~D399
Operand
9 9 9 9 9
－
The ORP commands are used in the parallel connection of the contact’s
rising-edge detection.
Command code: Operation:
LD X0
Load A contact of X0
ORP
X1
X1 rising-edge
detection in parallel
connection
Example
Ladder diagram:
X0
X1
Y1
OUT Y1
Drive Y1 coil
