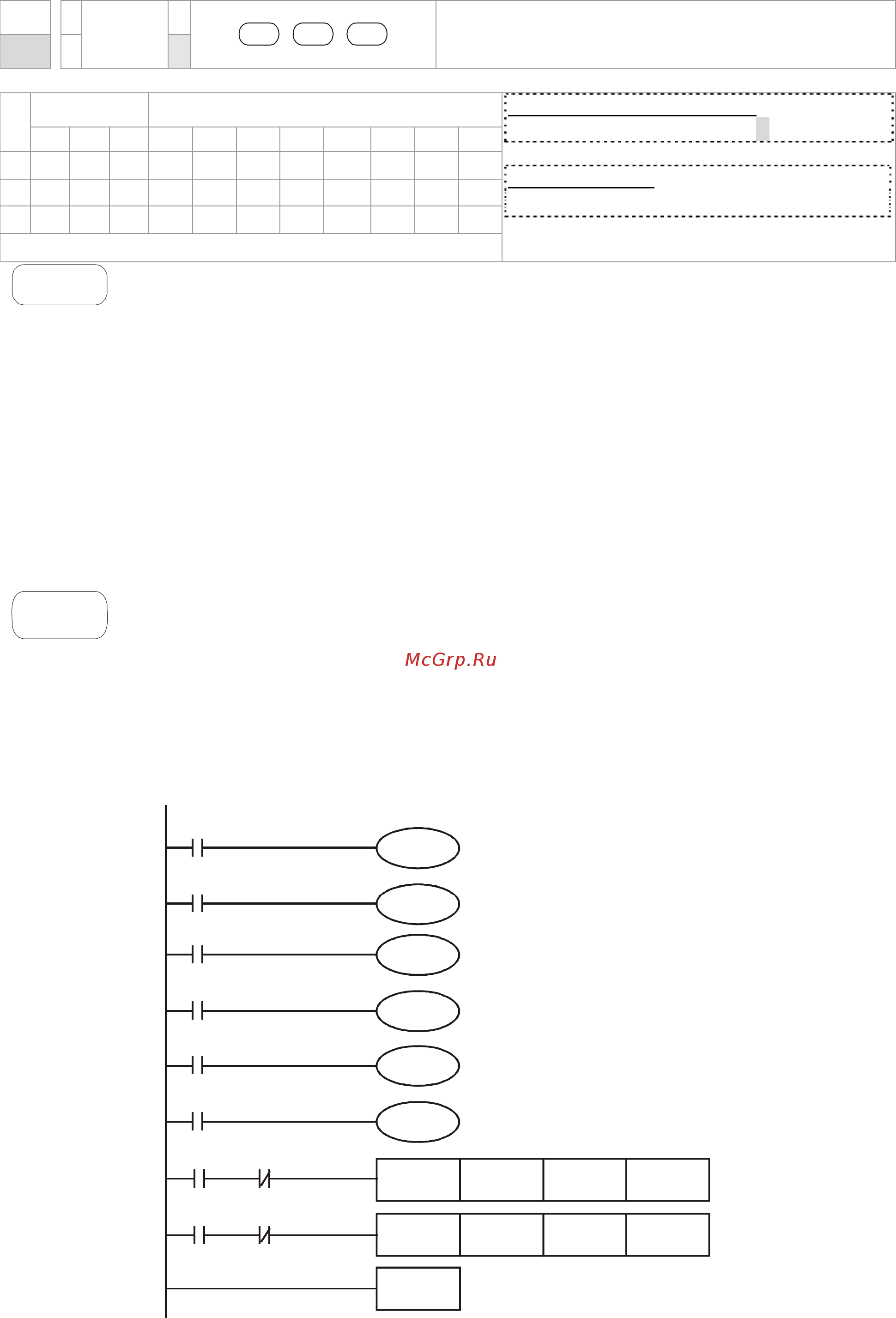

Chapter 14 PLC Function |C200 Series
14-64
API
142
FREQ
P
S1 S2 S3
Operation control of the AC motor drive
Bit Devices Word Devices
X Y M K H KnX KnY KnM T C D
S
1
＊ ＊
＊
S2
＊ ＊
＊
S3
＊ ＊
＊
Operands: None
16-bit command (7 STEPS)
FREQ
FREQP
32-bit command
－ － － －
Flag signal: M1028
Explanation
1. S
1
: frequency command, S
2
: acceleration time, S
3
: deceleration time
2. This command FREQ can control frequency command, acceleration time and
deceleration time of the AC motor drive. Special register control is shown as
following:
M1025: controls RUN (On)/STOP (Off) of the drive. (Run is valid when Servo
On (M1040 On).)
M1026: Operation directions FWD (On)/REV (Off) of the drive.
M1040: controls Servo On (On)/ Servo Off (Off).
M1042: enable quick stop(ON)/ disable quick stop(Off)
M1044: enable Stop (On)/ disable stop(Off)
M1052: frequency locked (On)/ disable frequency locked(Off)
Example
1. M1025: controls RUN (On)/STOP (Off) of the drive. M1026: operation direction
FWD (On)/REV (Off) of the drive. M1015: frequency attained.
2. When M10=ON, setting frequency command of the AC motor drive to
K300(3.00Hz) and acceleration/deceleration time is 0.
3. When M11=ON, setting frequency command of the AC motor drive to
K3000(30.00Hz), acceleration time is 50 and deceleration time is 60.
END
M13
M1044
M14
M1052
FREQP K300 K0 K0
FREQ
K3000 K50 K60
M11
M10
M10M11
M1000
M1040
M12
M1042
M1000
M1025
M11
M1026
