English
23
X299 Steel Legend

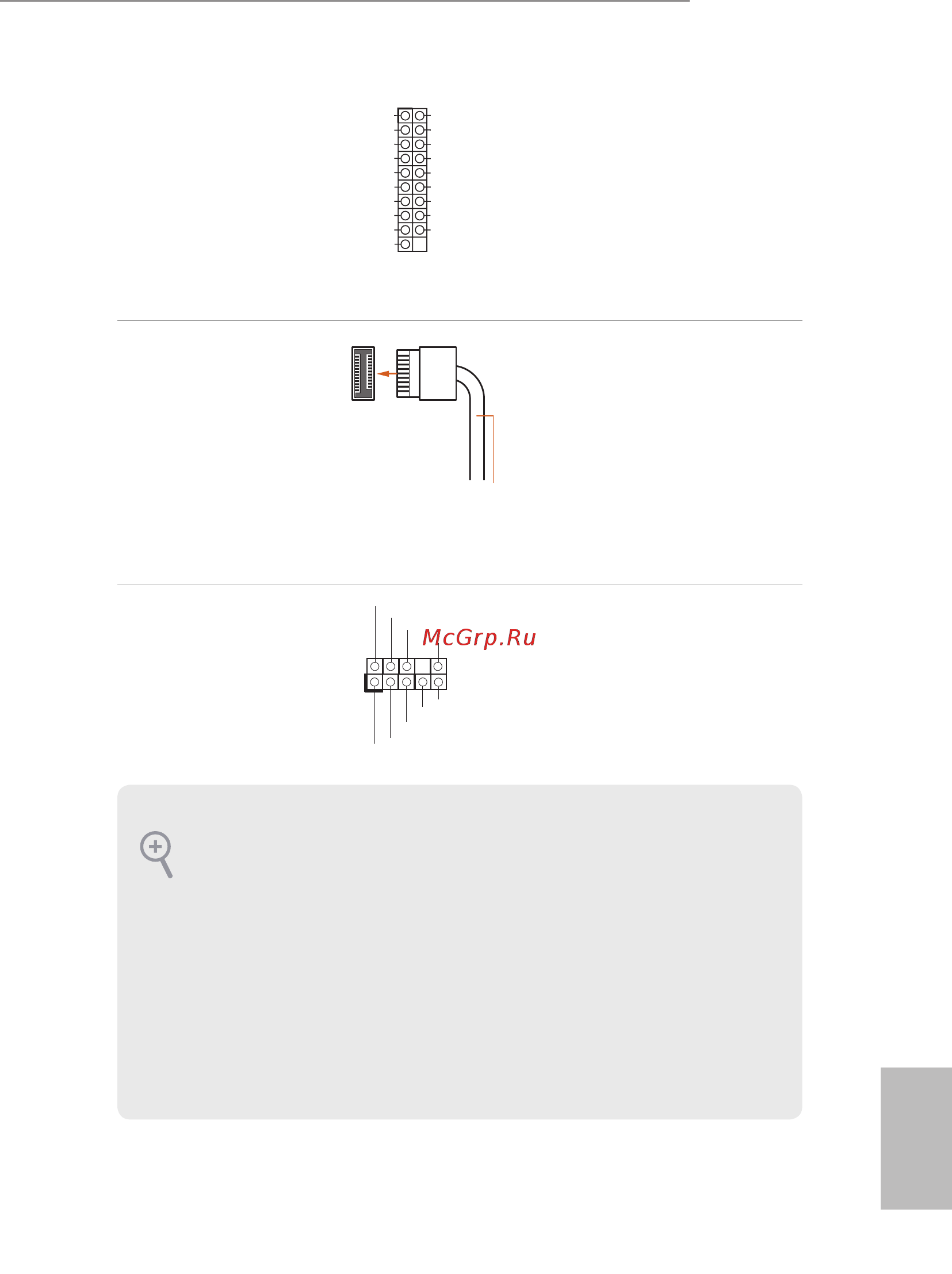

USB 3.2 Gen1 Header
(19-pin USB3_4_5)
(see p.1, No. 15)
ere is one header on
this motherboard. is
USB 3.2 Gen1 header can
support two ports.
Front Panel Type C USB
3.2 Gen1 Header
(20-pin F_USB_3_TC1)
(see p.1, No. 13)
ere is one Front
Panel Type C USB 3.2
Gen1 Header on this
motherboard. is header
is used for connecting a
USB 3.2 Gen1 module for
additional USB 3.2 Gen1
ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 33)
is header is for
connecting audio devices
to the front audio panel.
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must sup-
port HDA to function correctly. Please follow the instructions in our manual and chassis
manual to install your system.
2. If you use an AC’97 audio panel, please install it to the front panel audio header by the
steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to connect
them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and
adjust “Recording Volume”.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusV
V
bus
IntA_PA_SSRX-
IntA_P
A_SSRX+
GND
IntA_PA_SSTX-
IntA_P
A_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
USB Type-C Cable
