X299 Steel Legend

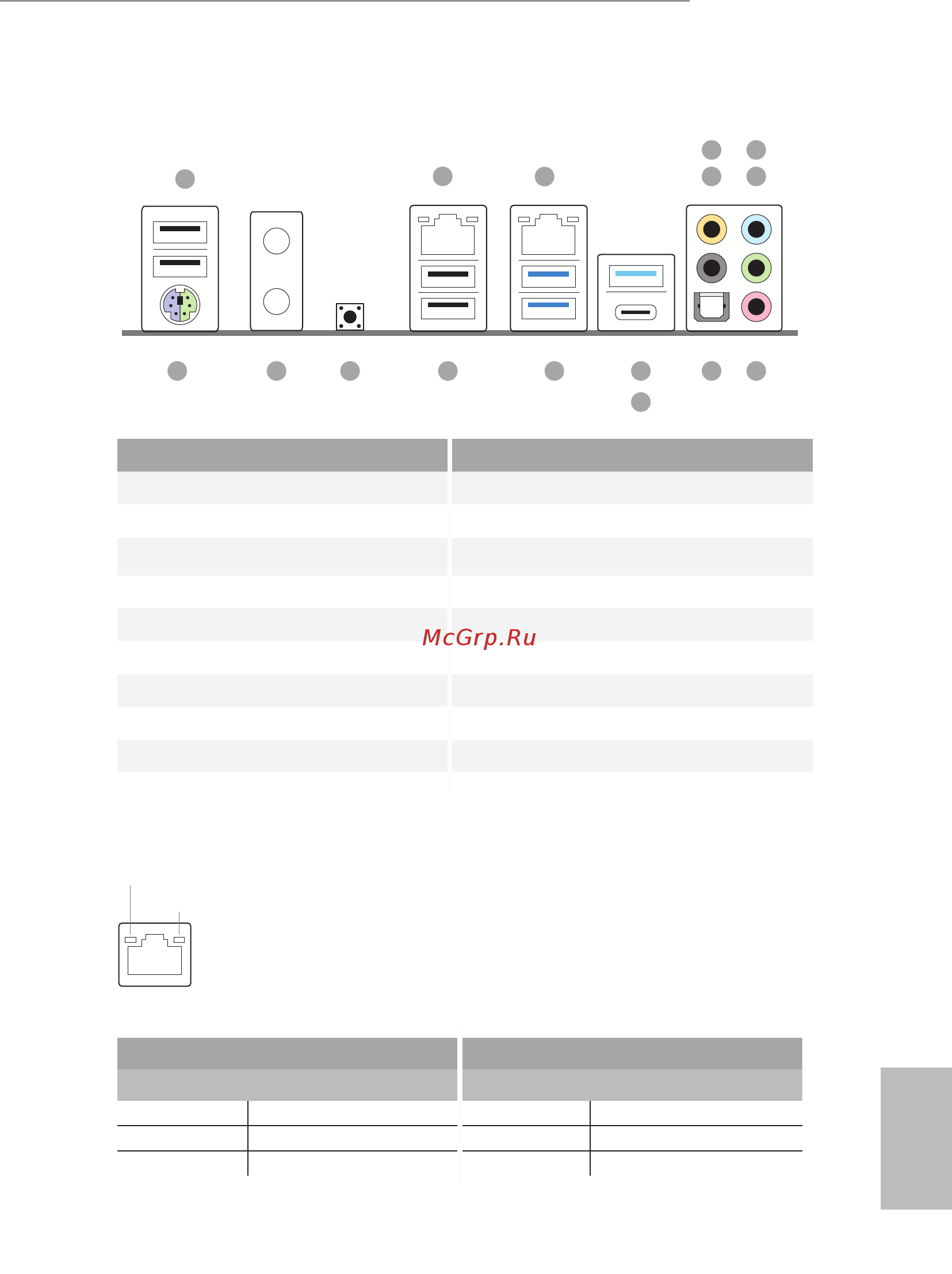

I/O Panel

No. Description No. Description

1 USB 2.0 Port (USB_12) 10 USB 3.2 Gen1 Port (USB3_3)

2 LAN RJ-45 Port (Intel® I219V)* 11 USB 3.2 Gen2x2 Type-C Port

3 LAN RJ-45 Port (Intel® I211AT)* (USB31_TC_1)

4 Central / Bass (Orange) 12 USB 3.2 Gen1 Ports (USB3_12)

5 Rear Speaker (Black) 13 USB 2.0 Port (USB_34)

6 Line In (Light Blue) 14 Clear CMOS Button

7 Front Speaker (Lime)** 15 Antenna Bracket (on I/O Panel Shield)

8 Microphone (Pink) 16 PS/2 Mouse/Keyboard Port

9 Optical SPDIF Out Port

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

16 131415
