ROMED8HM3
20 21
English
2.6 Jumper Setup

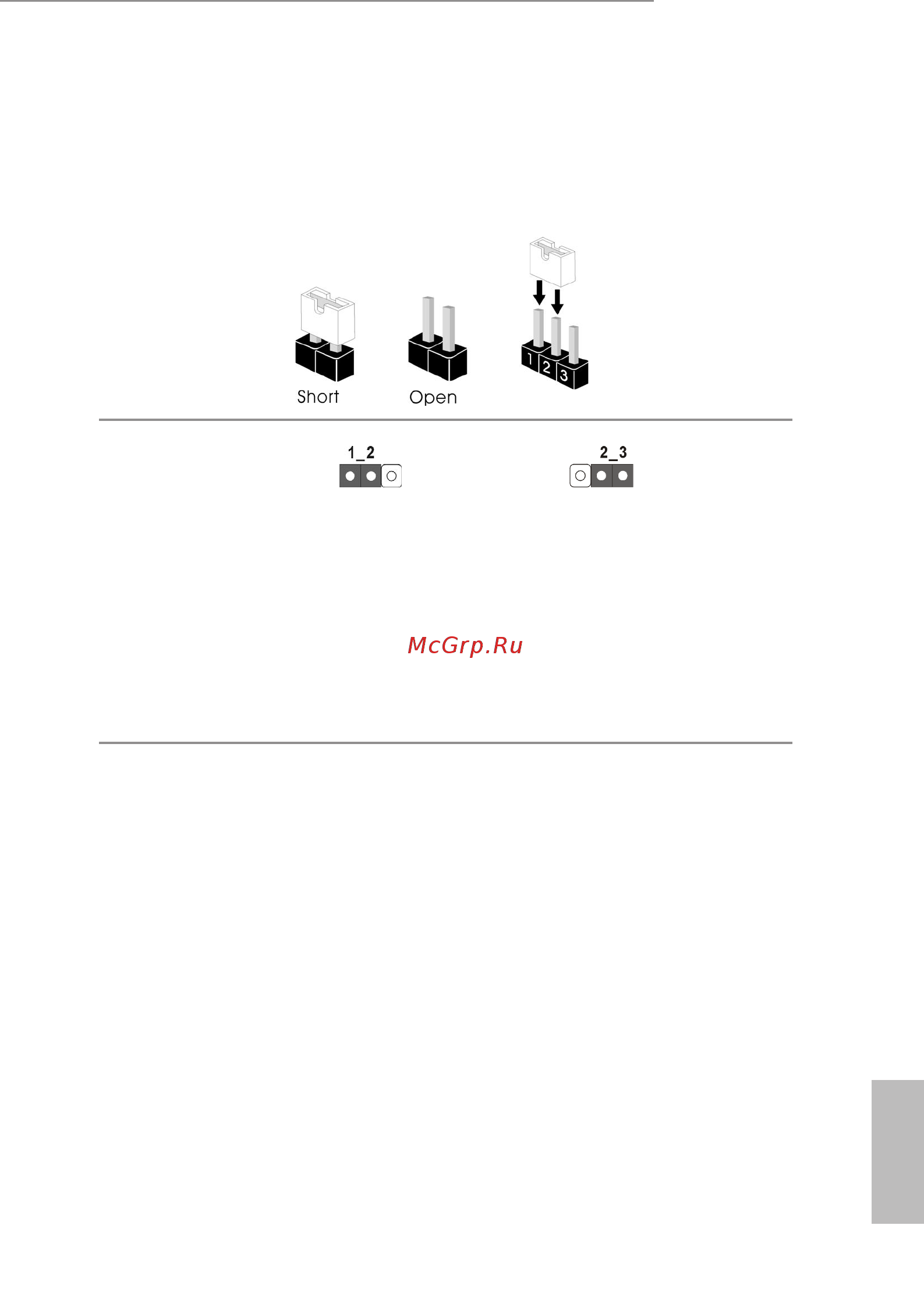

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
NVDIMM Power Support
Jumpers
(3-pin NV12V_1)
(see p.6, No. 38)
(3-pin NV12V_2)
(see p.6, No. 8)
(3-pin NV12V_3)
(see p.6, No. 39)
(3-pin NV12V_4)
(see p.6, No. 7)
No support for NVDIMM
power (Default)
Support NVDIMM power
