ASRock ROMED8HM3 [54/77] English
![ASRock ROMED8HM3 [54/77] English](/views2/1694142/page54/bg36.png)
48 49
English

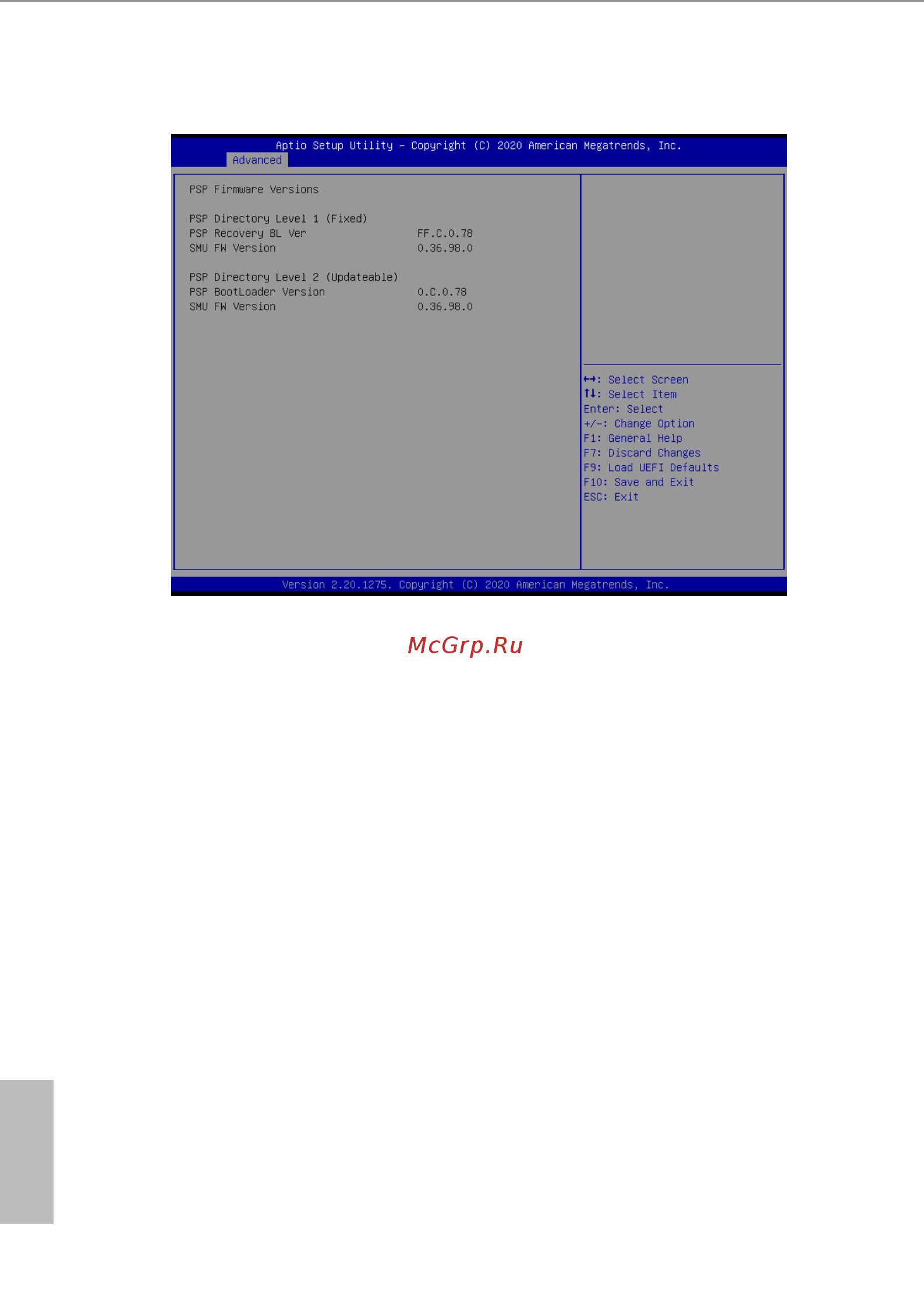

3.3.11 PSP Firmware Versions
The PSP Firmware Verions displays the version information of PSP Recovery BL, PSP
BootLoader, SMU FW, ABL, APCB, APDB, and APPB.
