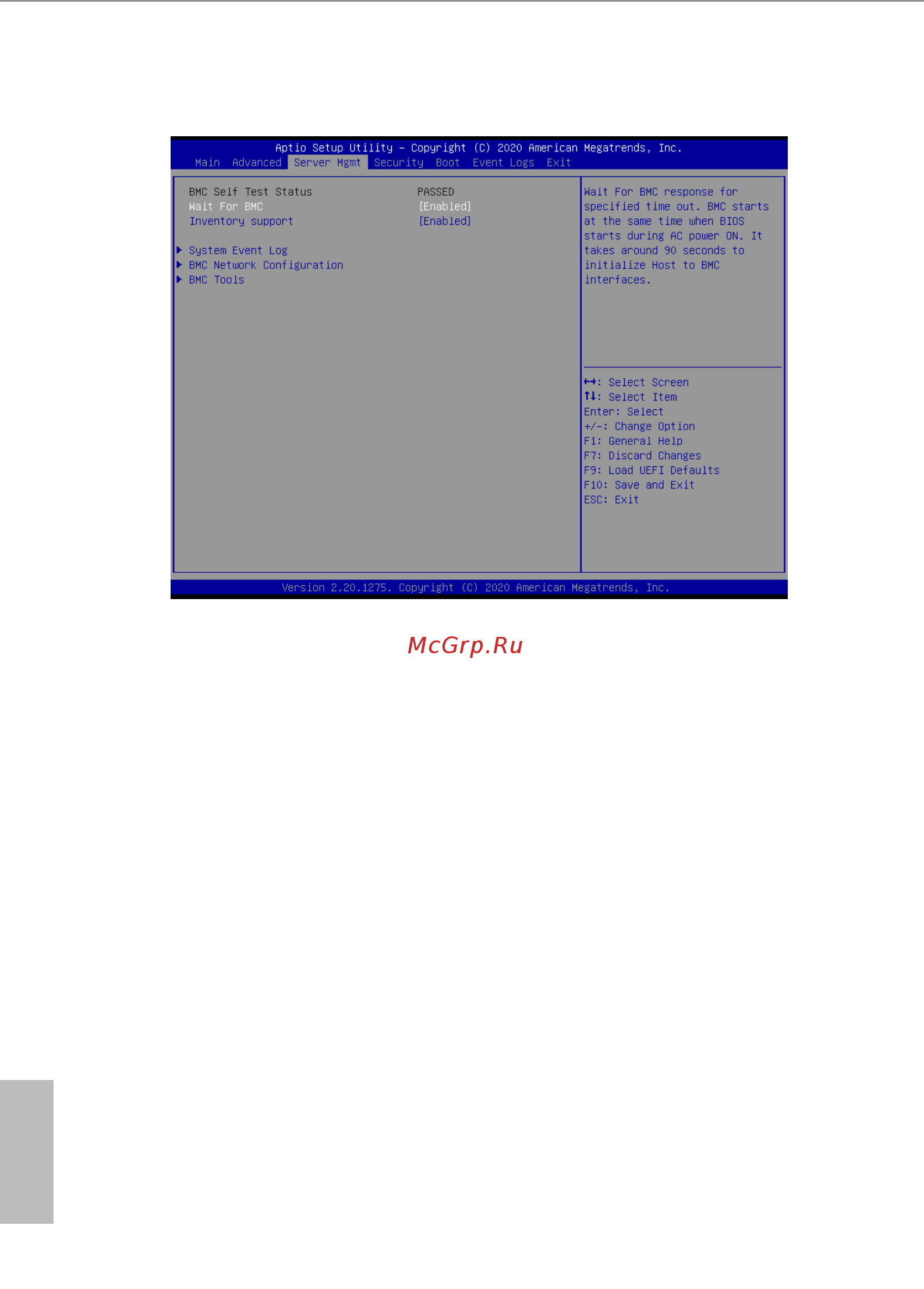

3.4 Server Mgmt
Wait For BMC
Wait For BMC response for specified time out. BMC starts at the same time when
BIOS starts during AC power ON. It takes around 90 seconds to initialize Host to BMC
interfaces.
