ASRock ROMED8HM3 [60/77] Bmc tools
![ASRock ROMED8HM3 [60/77] Bmc tools](/views2/1694142/page60/bg3c.png)
54 55
English

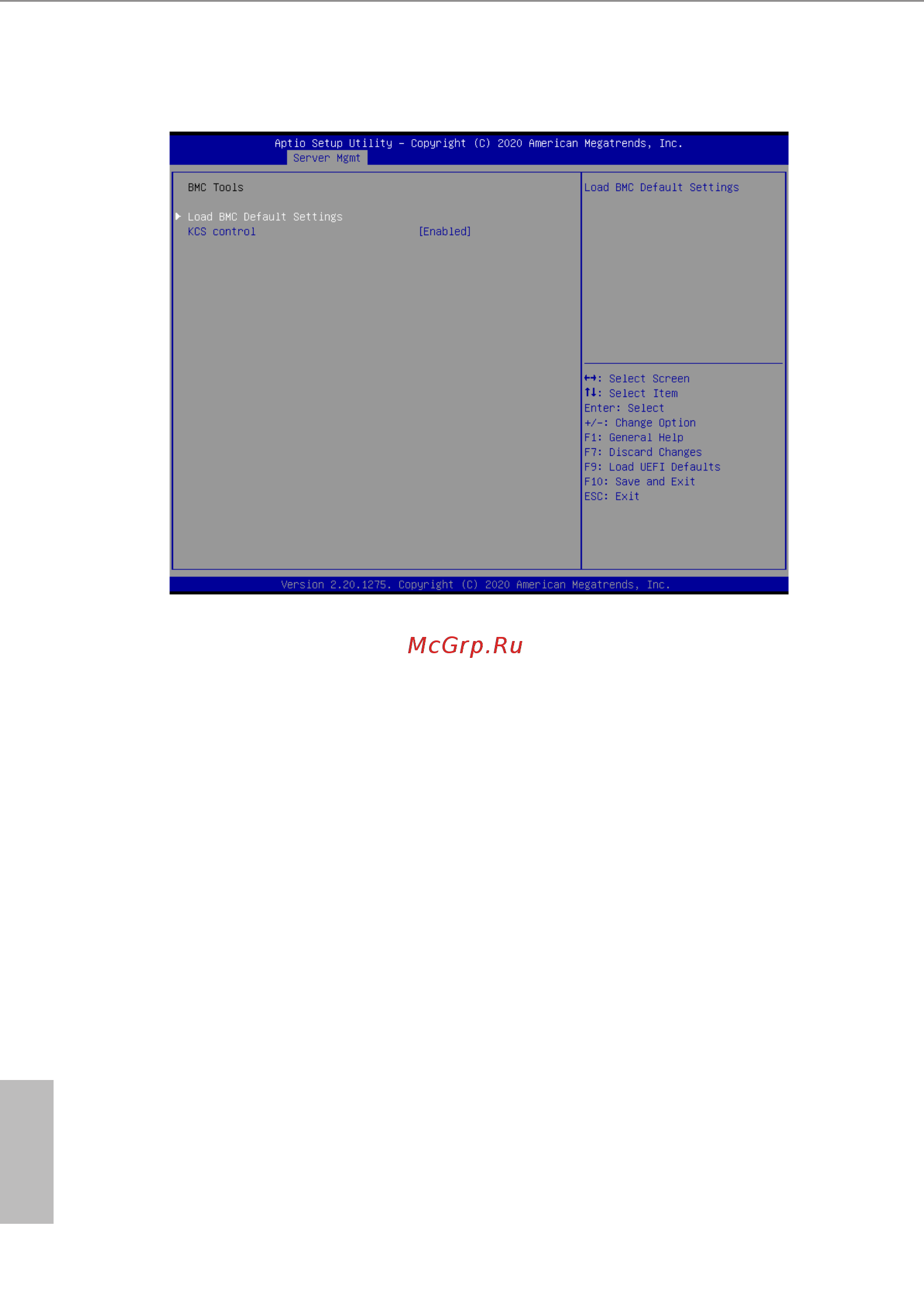

3.4.3 BMC Tools
Load BMC Default Settings
Use this item to Load BMC Default Settings.
KCS Control
Use this item to congure KCS Settings.
