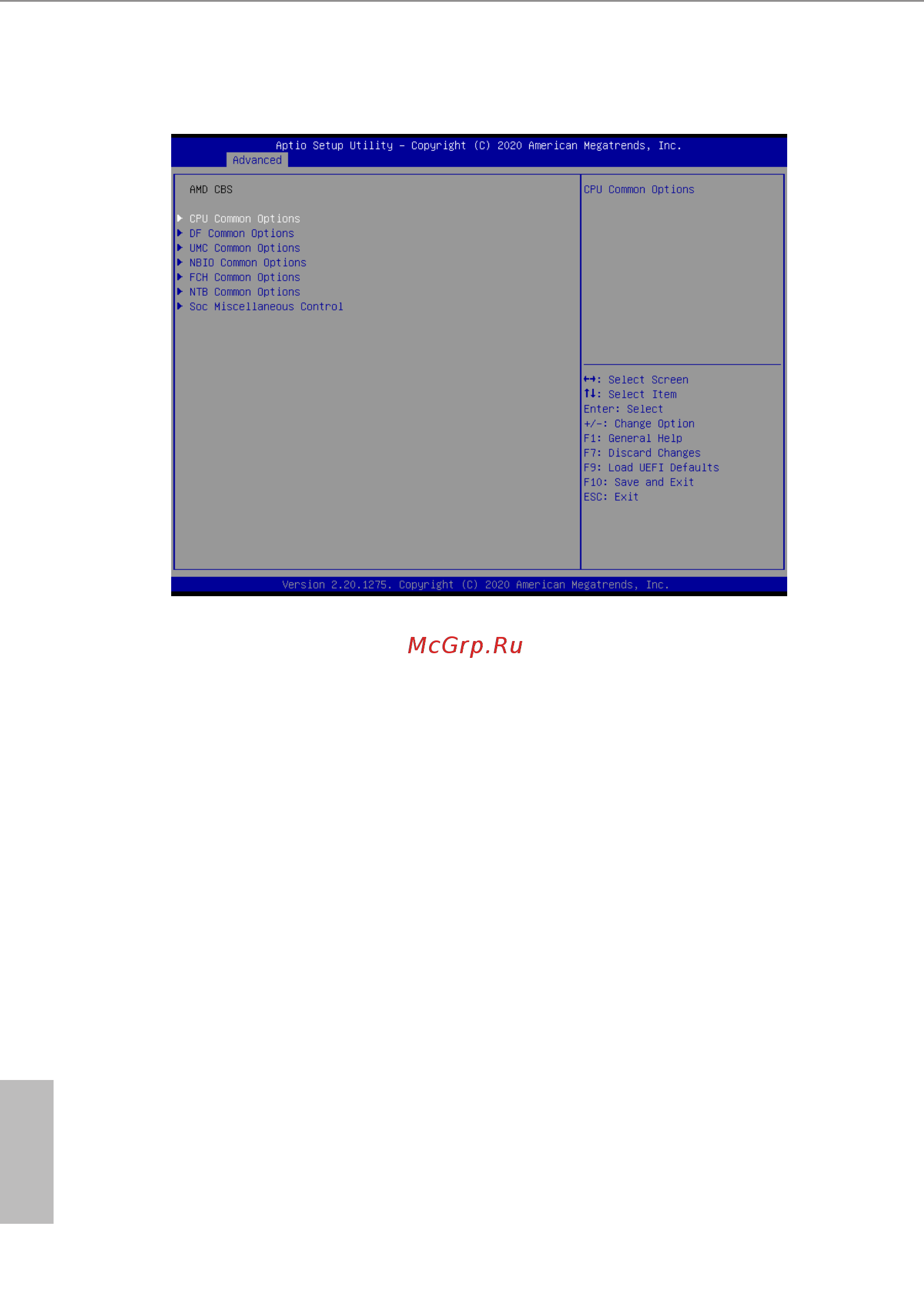

3.3.9 AMD CBS
CPU Common Options
Use this item to congure CPU Common options.
DF Common Options
Use this item to congure DF Common options.
UMC Common Options
Use this item to congure UMC Common options.
NBIO Common Options
Use this item to congure NBIO Common options.
FCH Common Options
Use this item to congure FCH Common options.
NTB Common Options
Use this item to congure NTB Common options.
Soc Miscellaneous Control
Use this item to congure Soc Miscellaneous Control options.
