ASRock ROMED8HM3 [40/77] Advanced screen
![ASRock ROMED8HM3 [40/77] Advanced screen](/views2/1694142/page40/bg28.png)
34 35
English
Setting wrong values in this section may cause the system to malfunction.

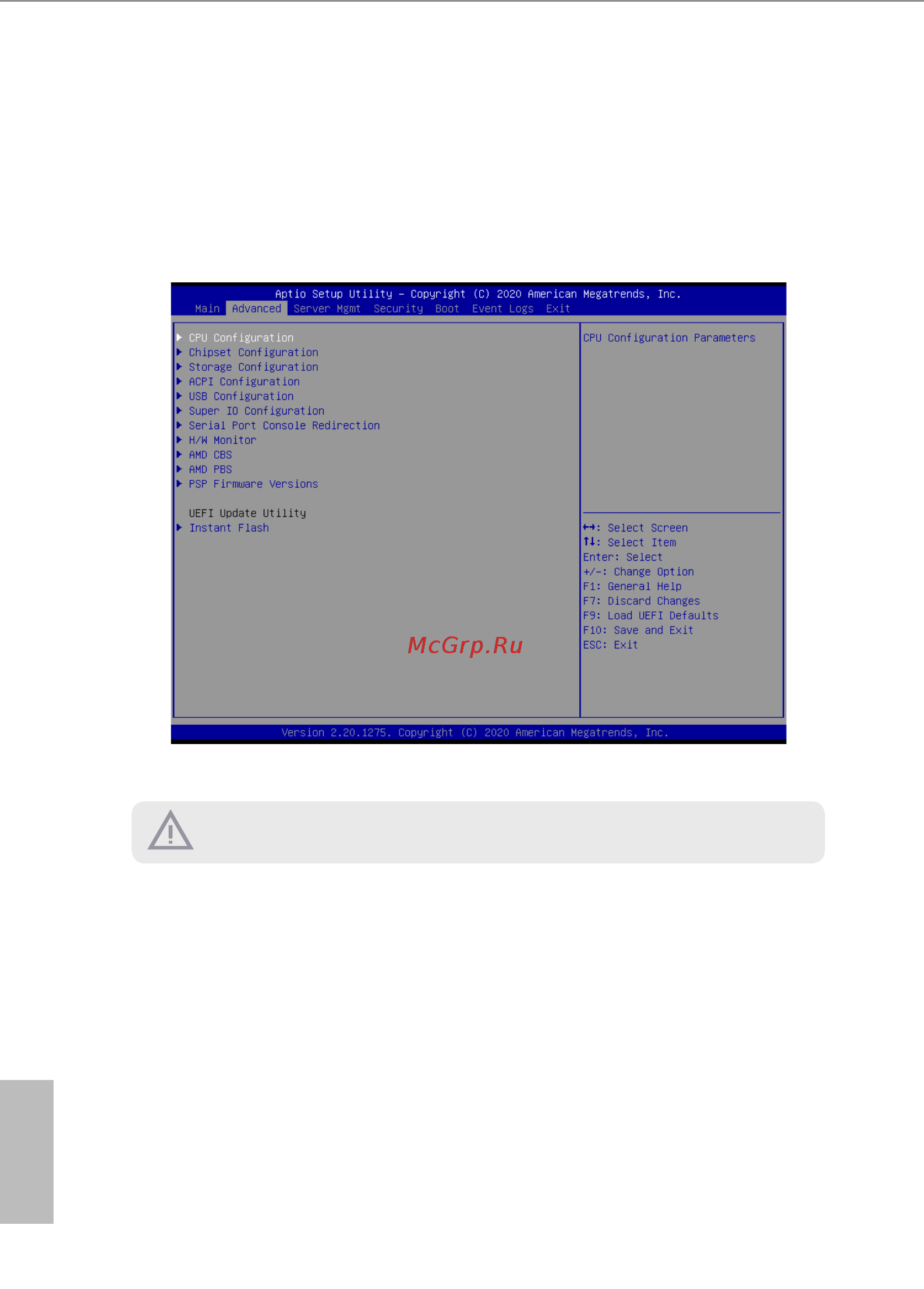

3.3 Advanced Screen
In this section, you may set the congurations for the following items: CPU Conguration,
Chipset Conguration, Storage Conguration, ACPI Conguration, USB Conguration,
Super IO Conguration, Serial Port Console Redirection, H/W Monitor, AMD CBS, AMD
PBS, PSP Firmware Versions and Instant Flash.
