ROMED8HM3
44 45
English

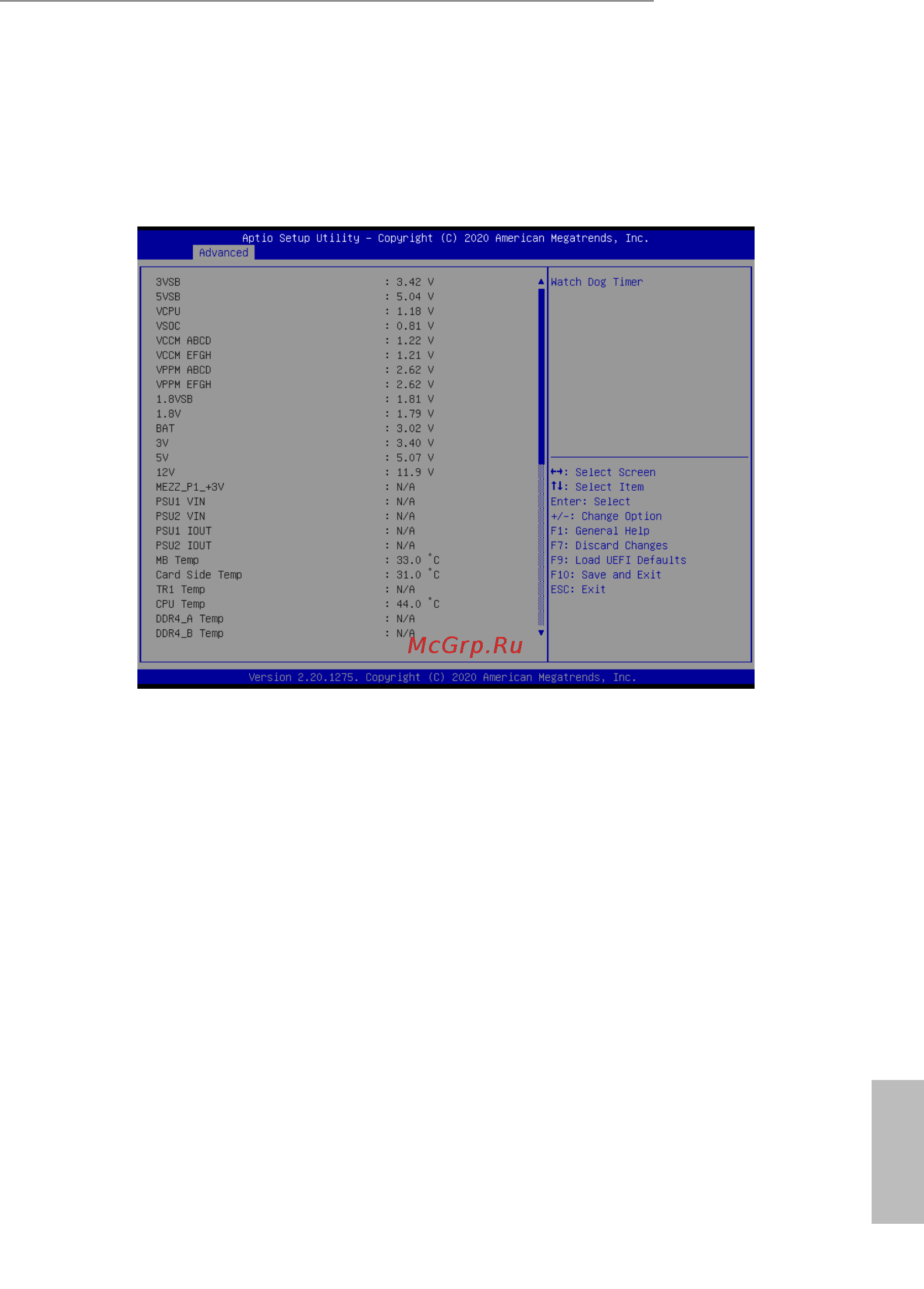

3.3.8 H/W Monitor
In this section, it allows you to monitor the status of the hardware on your system, includ-
ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed,
chassis fan speed, and the critical voltage.
Watch Dog Timer
is allows you to enable or disable the Watch Dog Timer. e default value is [Auto].
