ASRock ROMED8HM3 [46/77] Usb configuration
![ASRock ROMED8HM3 [46/77] Usb configuration](/views2/1694142/page46/bg2e.png)
40 41
English

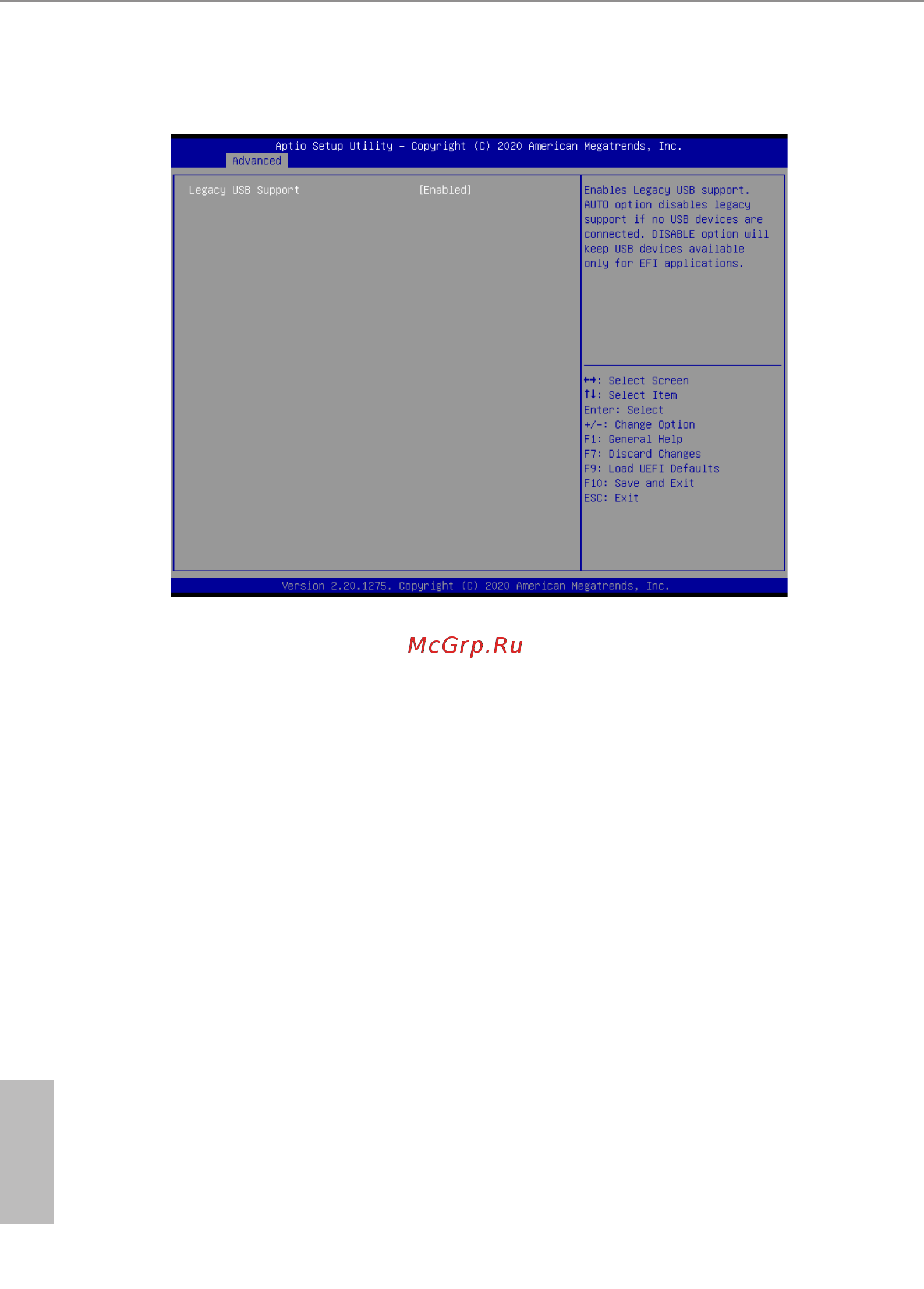

3.3.5 USB Conguration
Legacy USB Support
Use this option to enable or disable legacy support for USB devices. e default value is
[Enabled].
