24 25
English

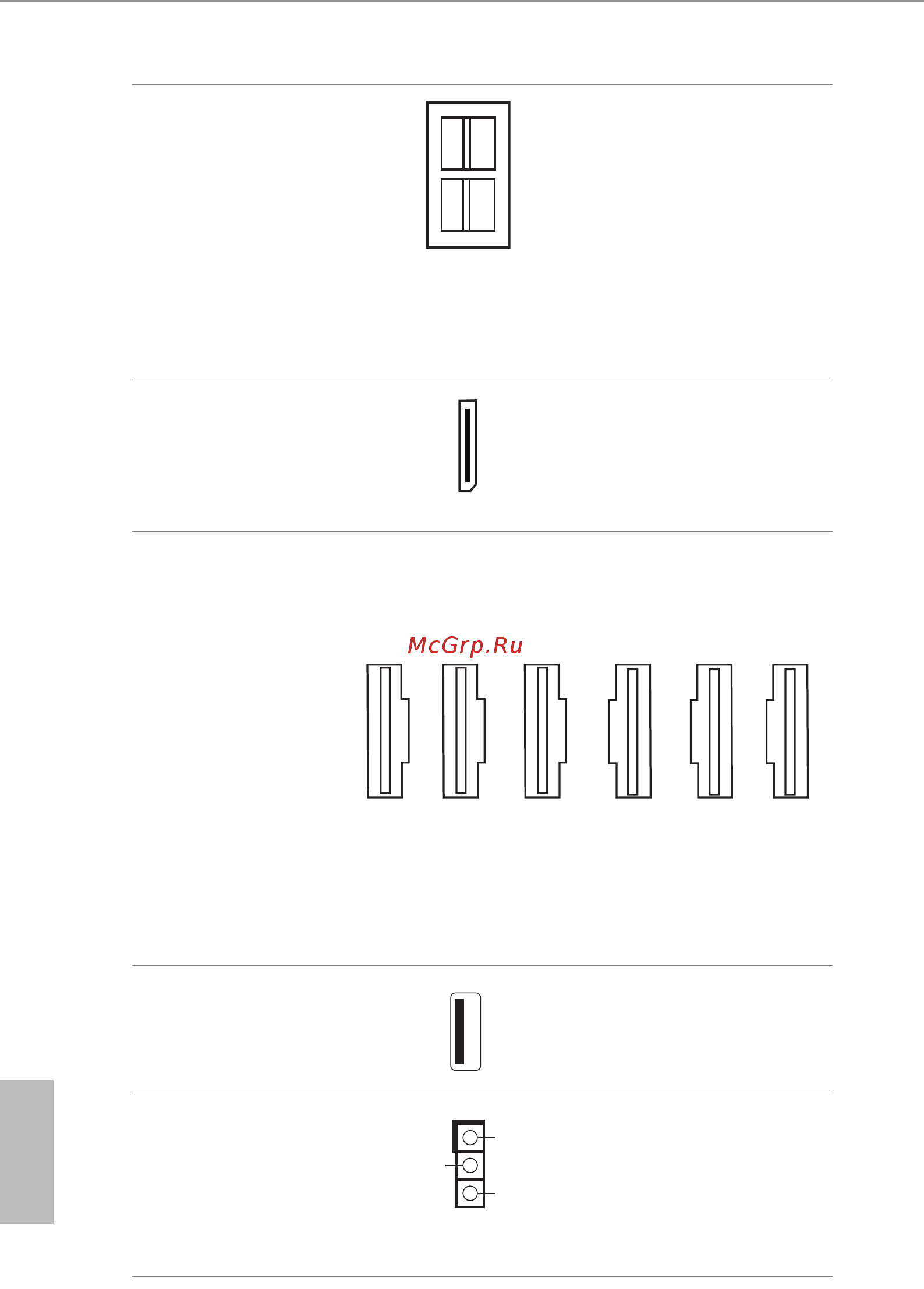

Mini SAS HD Connector
(SATA_0_7)
(see p.6, No. 32)
SA TA_0_7
is Mini SAS HD connector
supports SAS/SATA data
cables for internal storage
devices. e current SAS3/
SATA3 interface allows up to
12.0 Gb/s data transfer rate.
For connecting SAS HDDs,
please contact SAS data cable
dealers.
OCuLink Connector
(OCU1)
(see p.6, No. 45)
OCU1
Please connect PCIE SSDs to
the connector.
SLIMLINE NVMe x8
Connectors
(SLIM1)
(see p.6, No. 36)
(SLIM2)
(see p.6, No. 37)
(SLIM3)
(see p.6, No. 35)
(SLIM4)
(see p.6, No. 14)
(SLIM5)
(see p.6, No. 13)
(SLIM6)
(see p.6, No. 12)
ese connectors are used for
the NVME PCIE devices.
USB 2.0 Connector
(USB_1)
(see p.6, No. 24)
ermal Sensor Header
(3-pin TR1)
(see p.6, No. 1)
1
TR1
TR1
GND
Please connect the thermal
sensor cable to either pin 1-2
or pin 2-3 and the other end to
the device which you wish to
monitor its temperature.
SLIM 4
SLIM 5
SLIM 6
SLIM 3
SLIM 1
SLIM 2
