ASRock ROMED8HM3 [45/77] Acpi configuration
![ASRock ROMED8HM3 [45/77] Acpi configuration](/views2/1694142/page45/bg2d.png)
ROMED8HM3
38 39
English

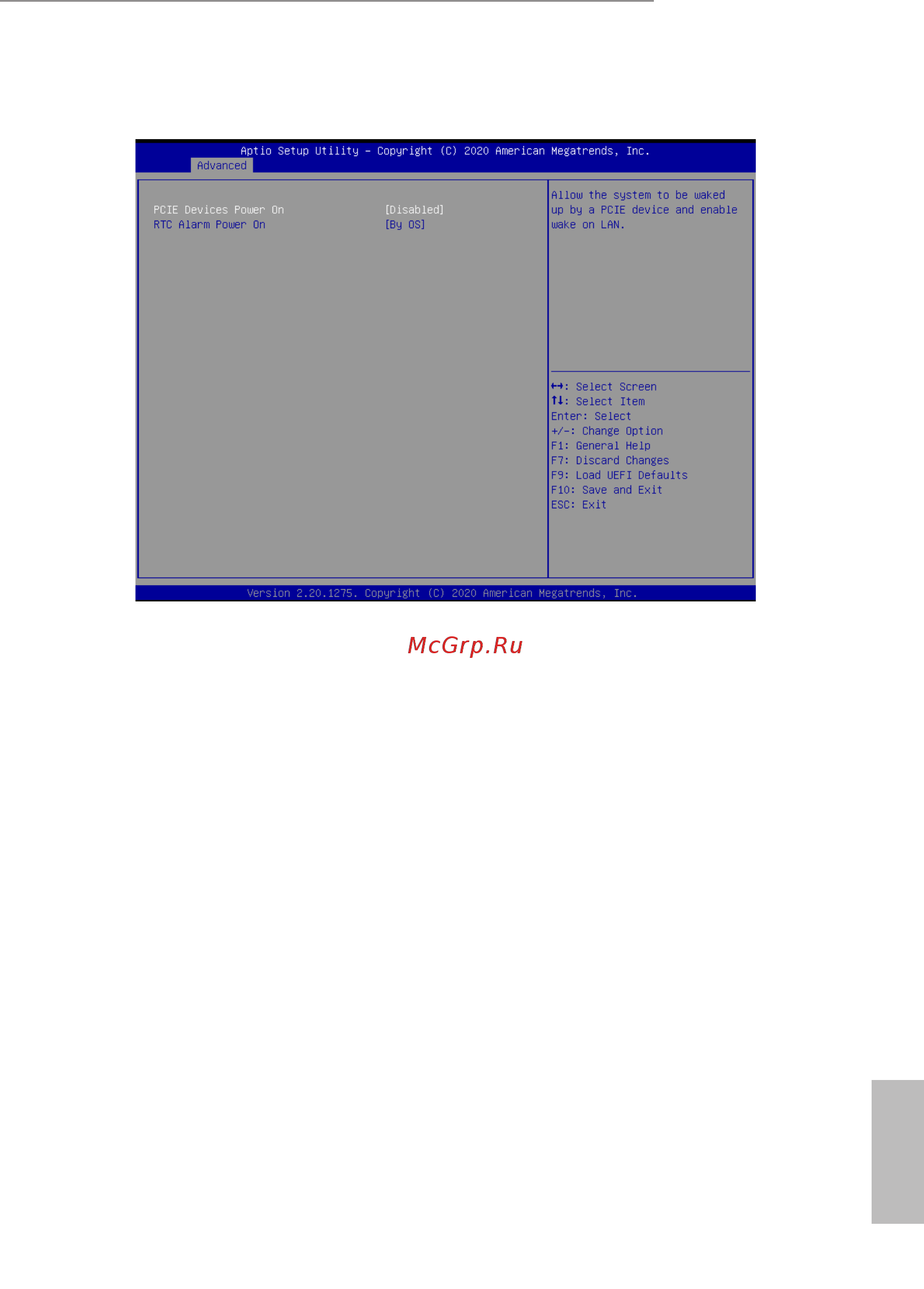

3.3.4 ACPI Conguration
PCIE Devices Power On
Allow the system to be waked up by a PCIE device and enable wake on LAN.
RTC Alarm Power On
Use this item to enable or disable RTC (Real Time Clock) to power on the system.
