E3C246D4U / E3C242D4U / C246M WS
26 27
English
2.7 Jumper Setup

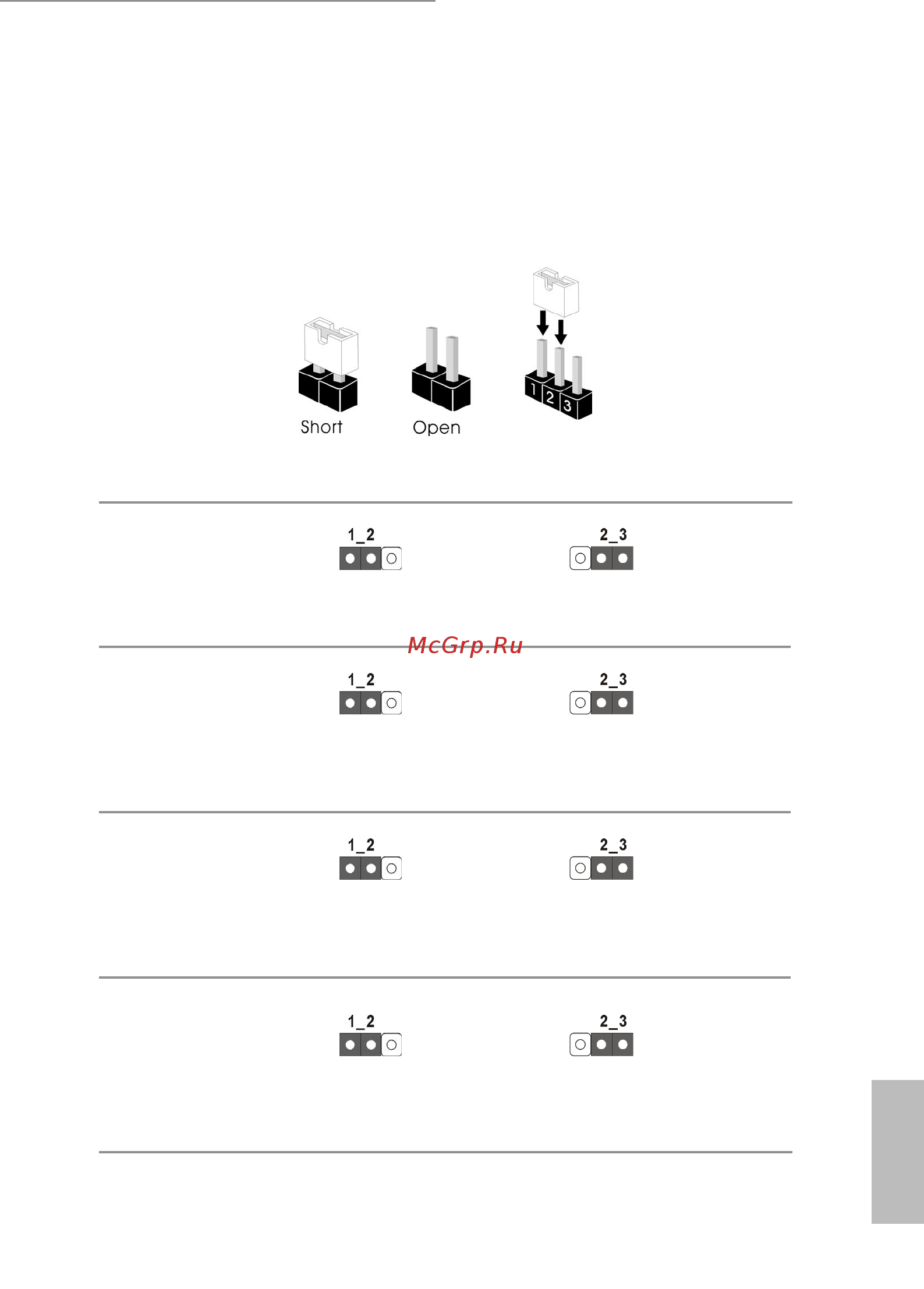

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
ME Recovery Jumper
(3-pin ME_RECOVERY1)
(for E3C246D4U / E3C242D4U
only)
Normal Mode (Default)
ME force update
CPU PECI Mode Jumper
(3-pin PECI1)
(for E3C246D4U / E3C242D4U
only)
CPU PECI connected to
PCH
CPU PECI connected to
BMC (Default)
PCI Express Graphics
Conguration Jumper
(3-pin PEG_CFG1)
Normal Mode (Default)
PCIE6 force @ x8 x8
(CPU Lanes x8 x8)
Security Override Jumper
(3-pin SEC_OR1)
(for E3C246D4U / E3C242D4U
only)
Descriptor Security
Override
Not override (Default)
