60 61
English

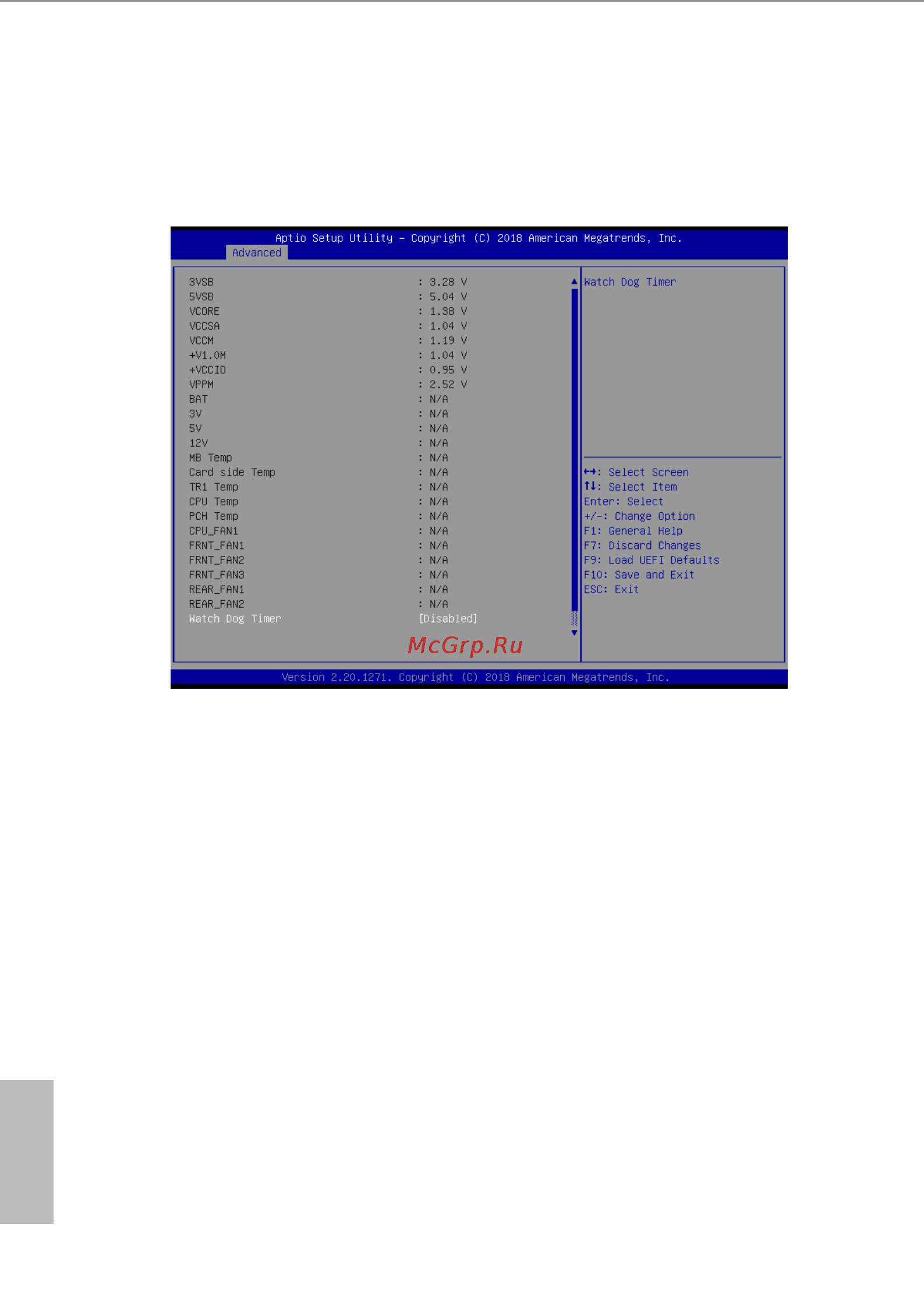

3.3.10 H/W Monitor
In this section, it allows you to monitor the status of the hardware on your system, includ-
ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed,
chassis fan speed, and the critical voltage.
Watch Dog Timer
is allows you to enable or disable the Watch Dog Timer. e default value is [Disabled].
Fan Control
If [Auto] is selected, the fan speed will controlled by BMC.
If [Manual] is selected, congure the items below.
CPU1_FAN1
is allows you to set the CPU fan1’s speed. e default value is [Smart Fan].
REAR_FAN 1
is allows you to set the rear fan 1’s speed. e default value is [Smart Fan].
REAR_FAN 2
is allows you to set the rear fan 2’s speed. e default value is [Smart Fan].
FRNT_FAN 1
is allows you to set the front fan 1’s speed. e default value is [Smart Fan].
