28 29
English

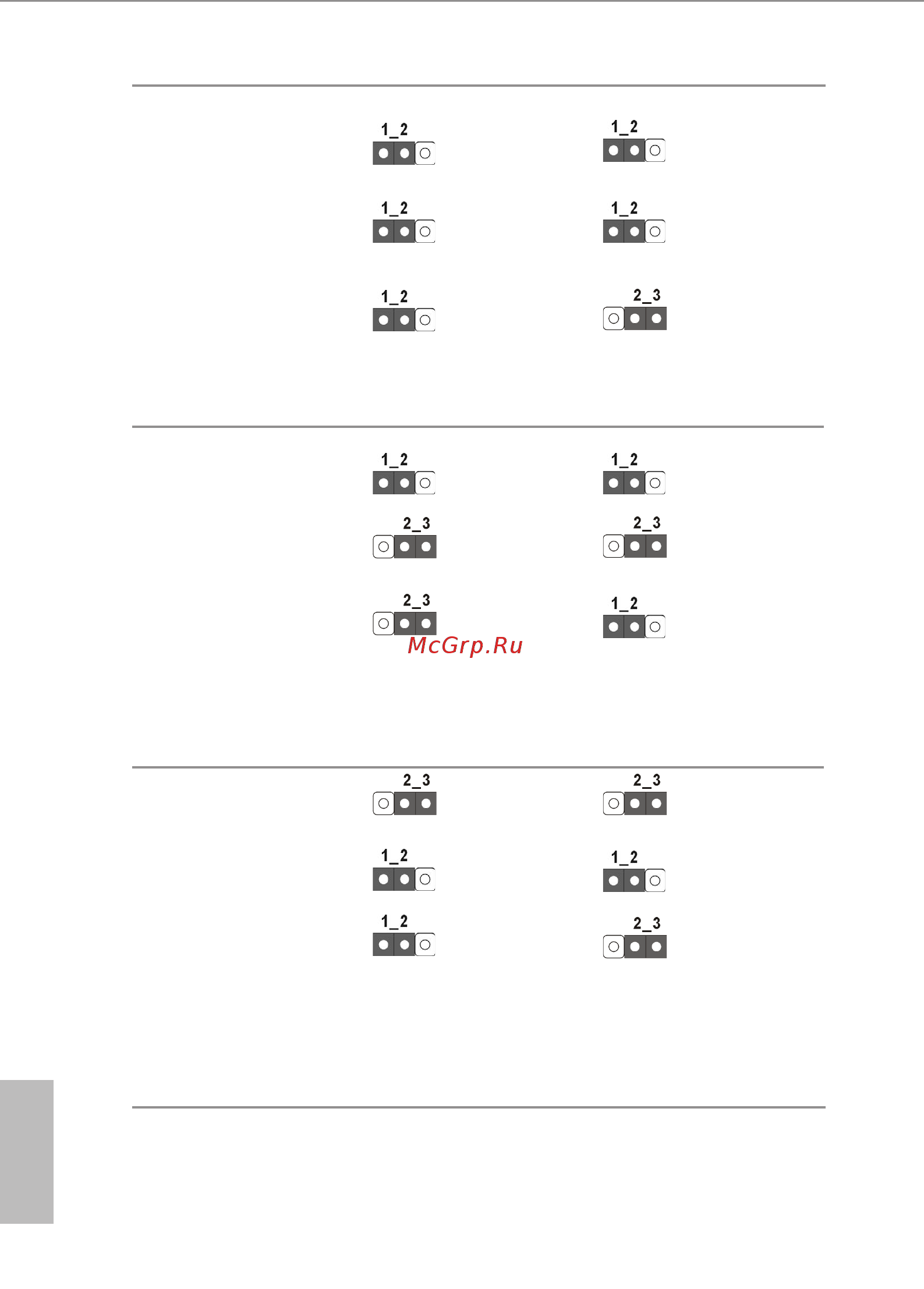

Chassis ID0 Jumper
(3-pin CHASSIS_ID0)
(see p.6, No. 32)
Chassis ID1 Jumper
(3-pin CHASSIS_ID1)
(see p.6, No. 35)
Chassis ID2 Jumper
(3-pin CHASSIS_ID2)
(see p.6, No. 34)
(for E3C246D4U / E3C242D4U
only)
Board Level SKU (Default) For 3U8G system, passive
GPGPU
Chassis ID0 Jumper
(3-pin CHASSIS_ID0)
(see p.6, No. 32)
Chassis ID1 Jumper
(3-pin CHASSIS_ID1)
(see p.6, No. 35)
Chassis ID2 Jumper
(3-pin CHASSIS_ID2)
(see p.6, No. 34)
(for E3C246D4U / E3C242D4U
only)
For 3U8G system, active
GPGPU
Reserved for system level
use
Chassis ID0 Jumper
(3-pin CHASSIS_ID0)
(see p.6, No. 32)
Chassis ID1 Jumper
(3-pin CHASSIS_ID1)
(see p.6, No. 35)
Chassis ID2 Jumper
(3-pin CHASSIS_ID2)
(see p.6, No. 34)
(for E3C246D4U / E3C242D4U
only)
Reserved for system level
use
Reserved for system level
use
