56 57
English

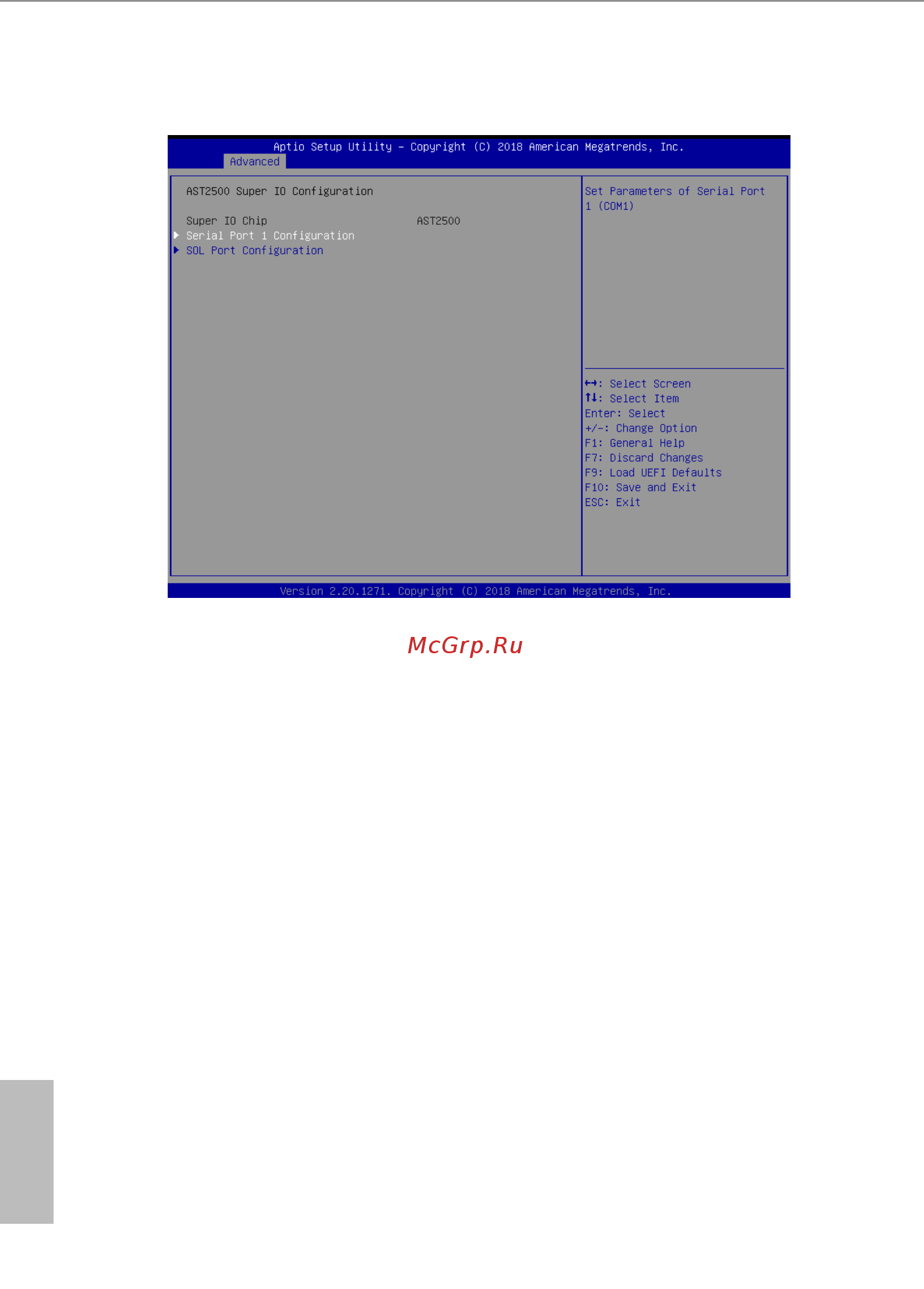

3.3.8 Super IO Conguration
Serial Port 1 Conguration
Use this item to congure the onboard serial port 1.
Select and enter the "Serial Port 1 Conguration" and you will see the followings:
Serial Port
Use this item to enable or disable the onboard serial port.
Serial Port Address
Use this item to select an optimal setting for Super IO device.
SOL Conguration
Use this item to set parameters of SOL.
Select and enter the ""SOL Conguration" and you will see the followings:
SOL Port
Use this item to enable or disable the SOL port.
SOL Port Address
Use this item to select an optimal setting for Super IO device.
