ASRock E3C246D4U [60/87] Acpi configuration
![ASRock E3C246D4U [60/87] Acpi configuration](/views2/1694725/page60/bg3c.png)
54 55
English

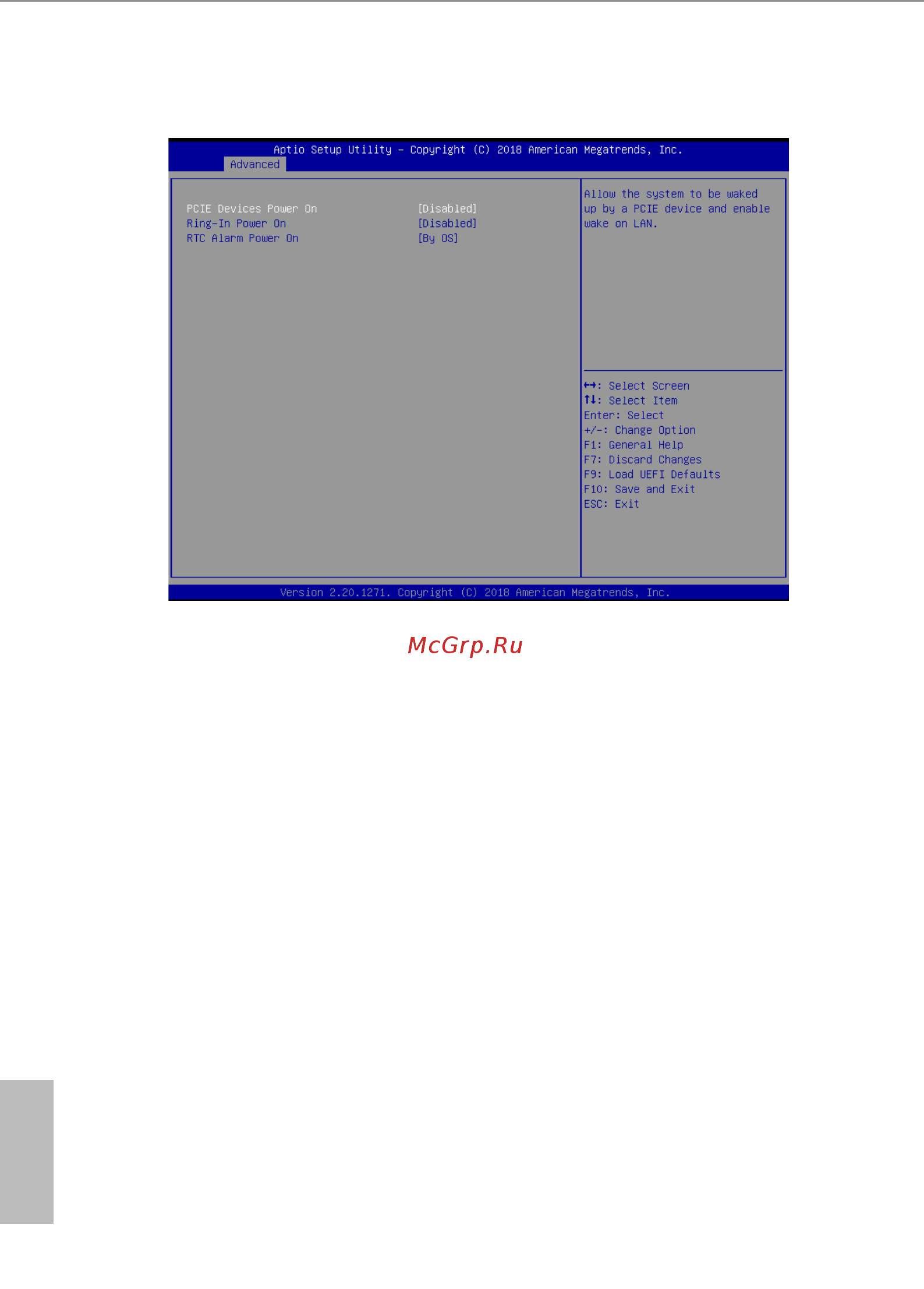

3.3.6 ACPI Conguration
PCIE Devices Power On
Use this item to enable or disable PCIE devices to turn on the system from the power-so-
o mode.
Ring-In Power On
Use this item to enable or disable Ring-In signals to turn on the system from the power-
so-o mode.
RTC Alarm Power On
Use this item to enable or disable RTC (Real Time Clock) to power on the system.
