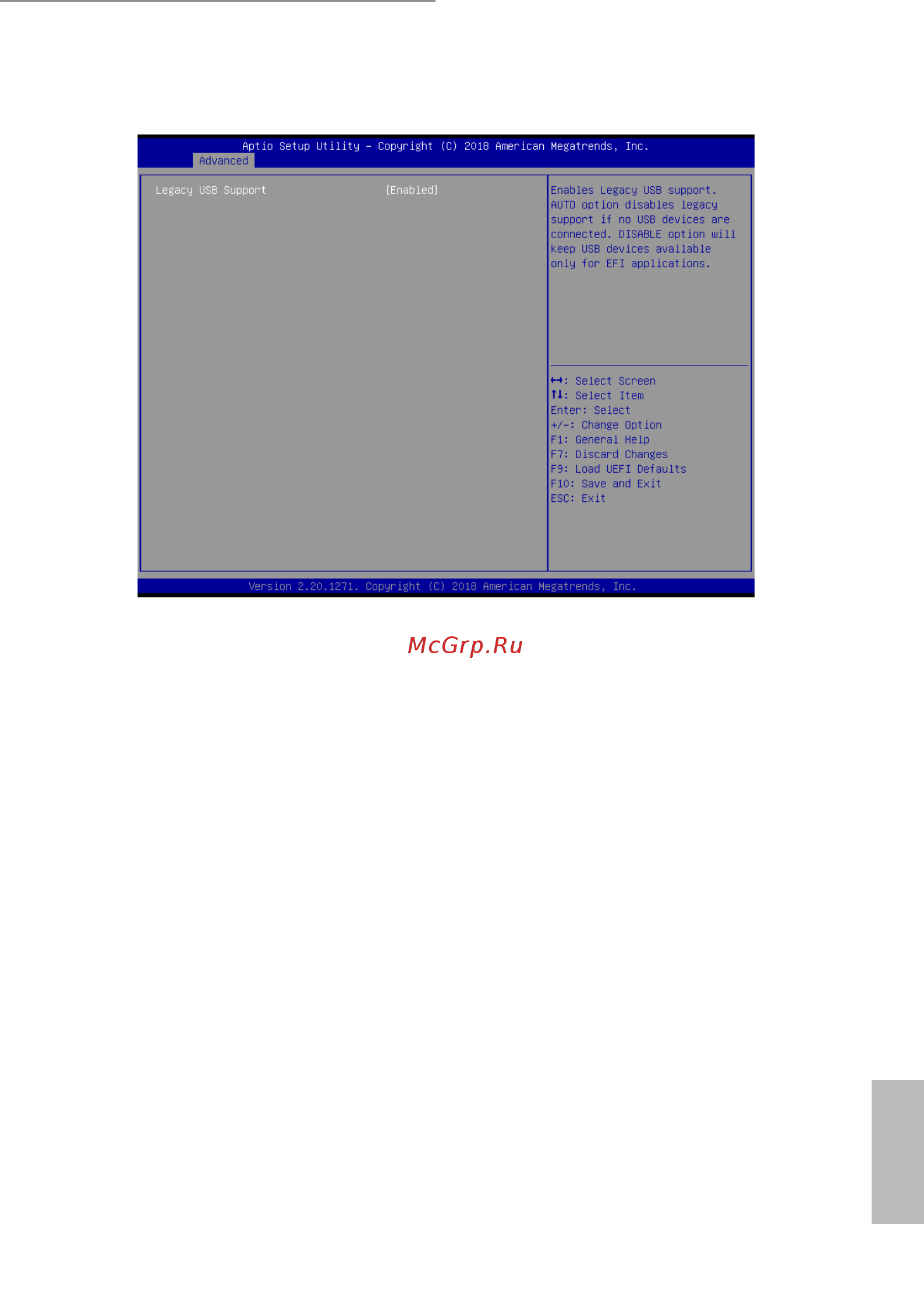

3.3.7 USB Conguration
Legacy USB Support
Use this option to enable or disable legacy support for USB devices. e default value is
[Enabled].
