3.2 Main Screen

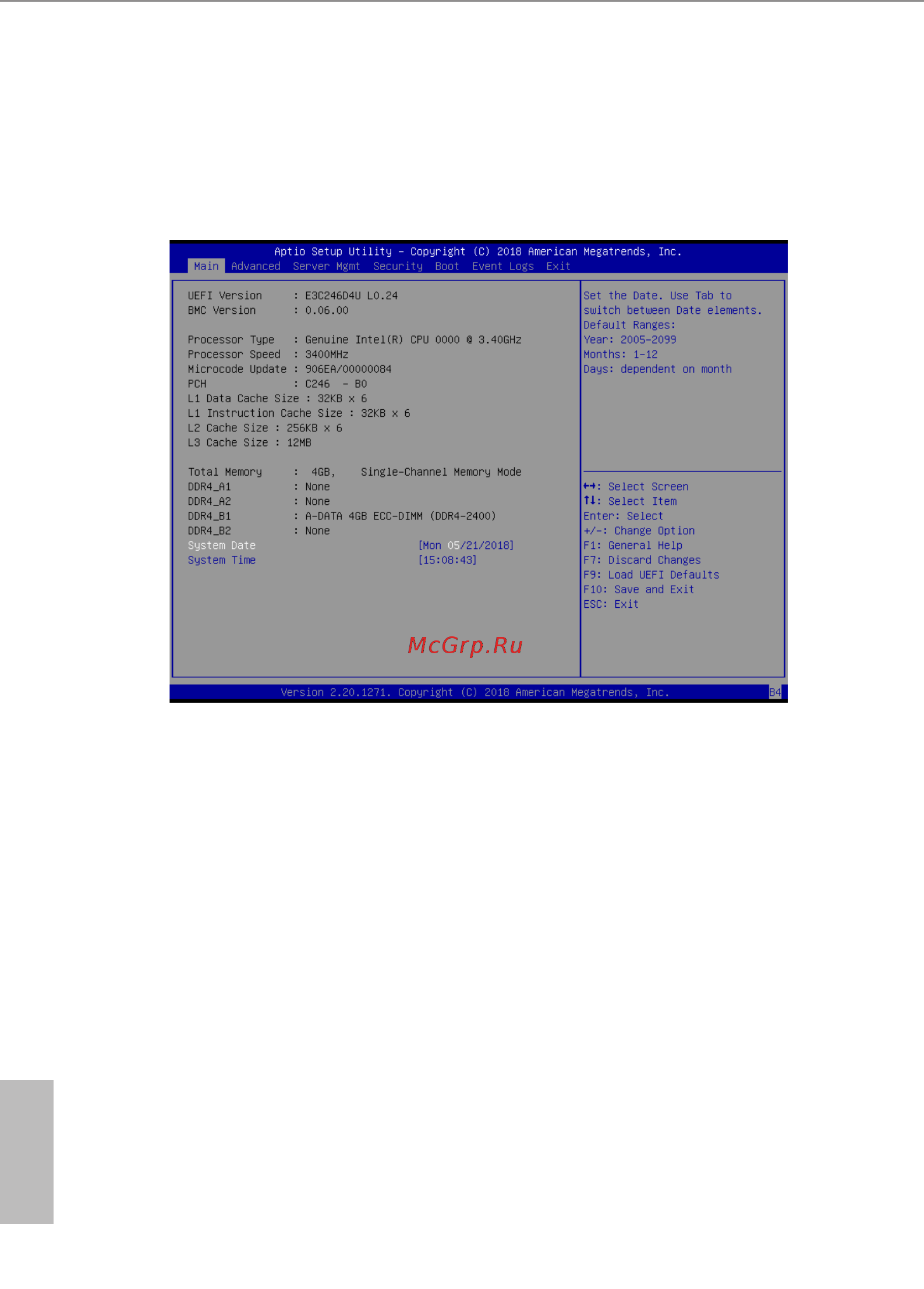

Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the
system overview. e Main screen provides system overview information and allows you
to set the system time and date.
Note: e screenshots in this user manual are examples and for references only. e actual images may
slightly vary depending on the model and the version you use.
