![ASRock EPC612D8A-TB [102/102] English](/views2/1695358/page102/bg66.png)
96 97
English

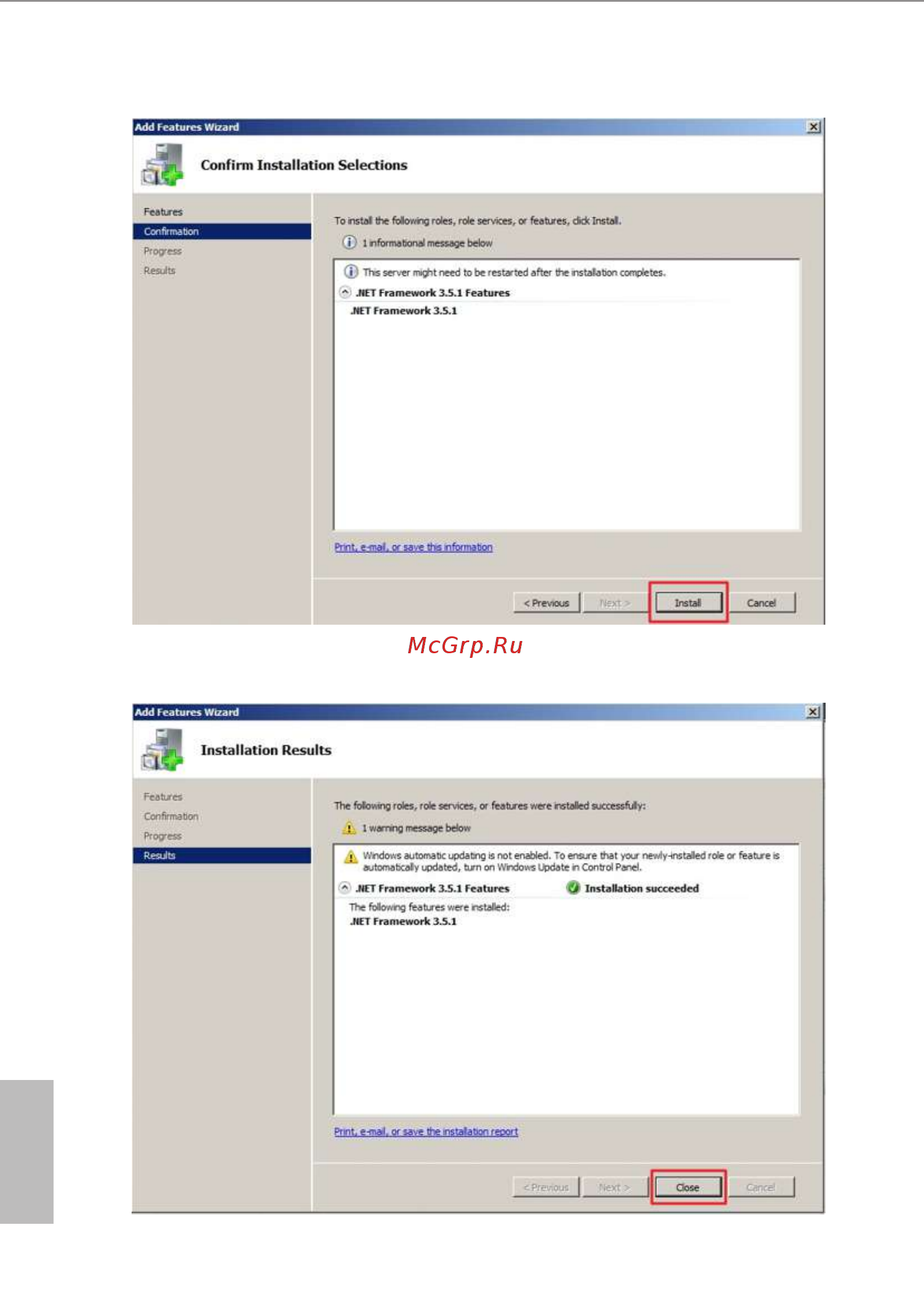

5. Click Install to start installing .Net Framework 3.5.1.
6. Aer the installation completes, click Close.
