English

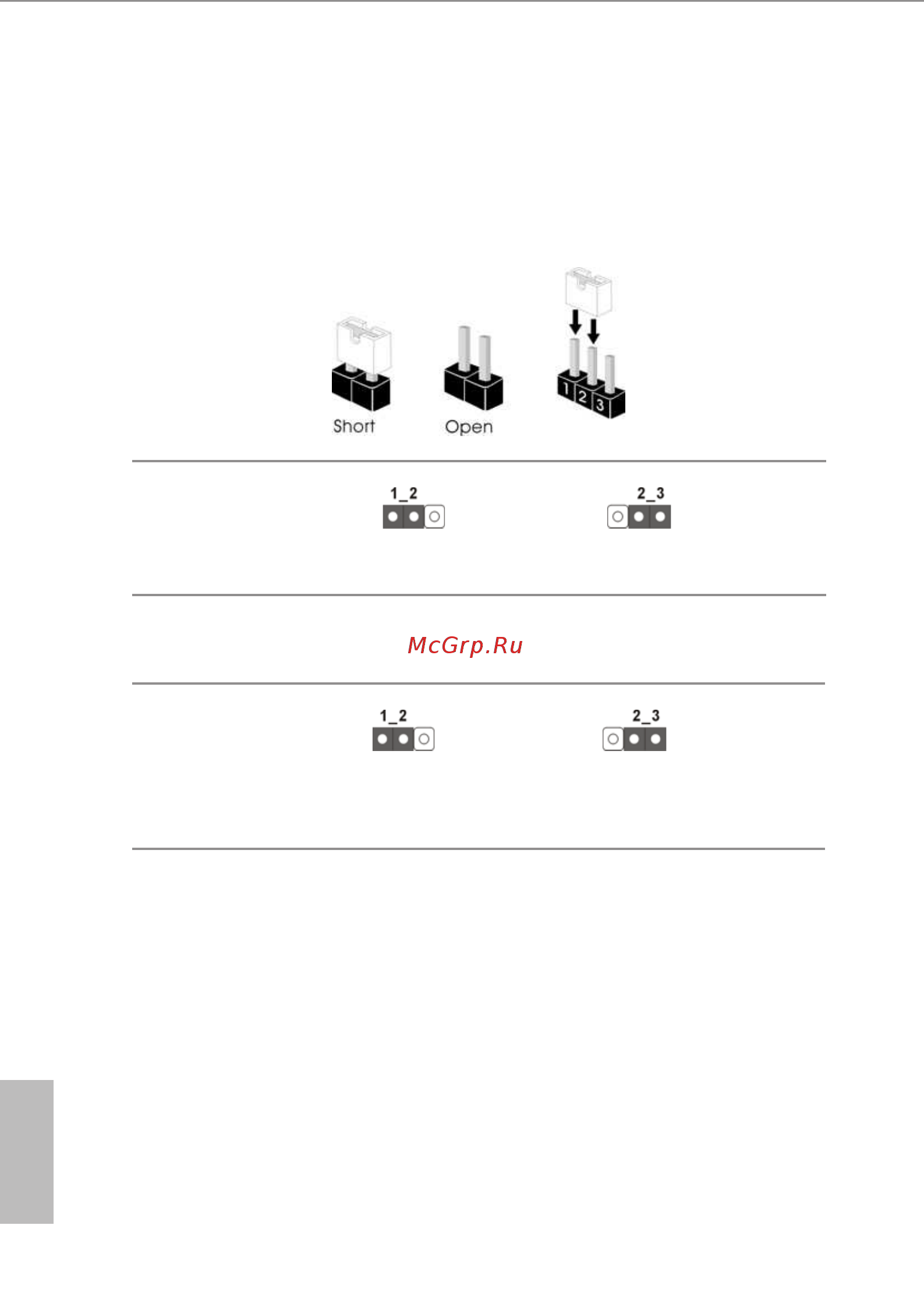

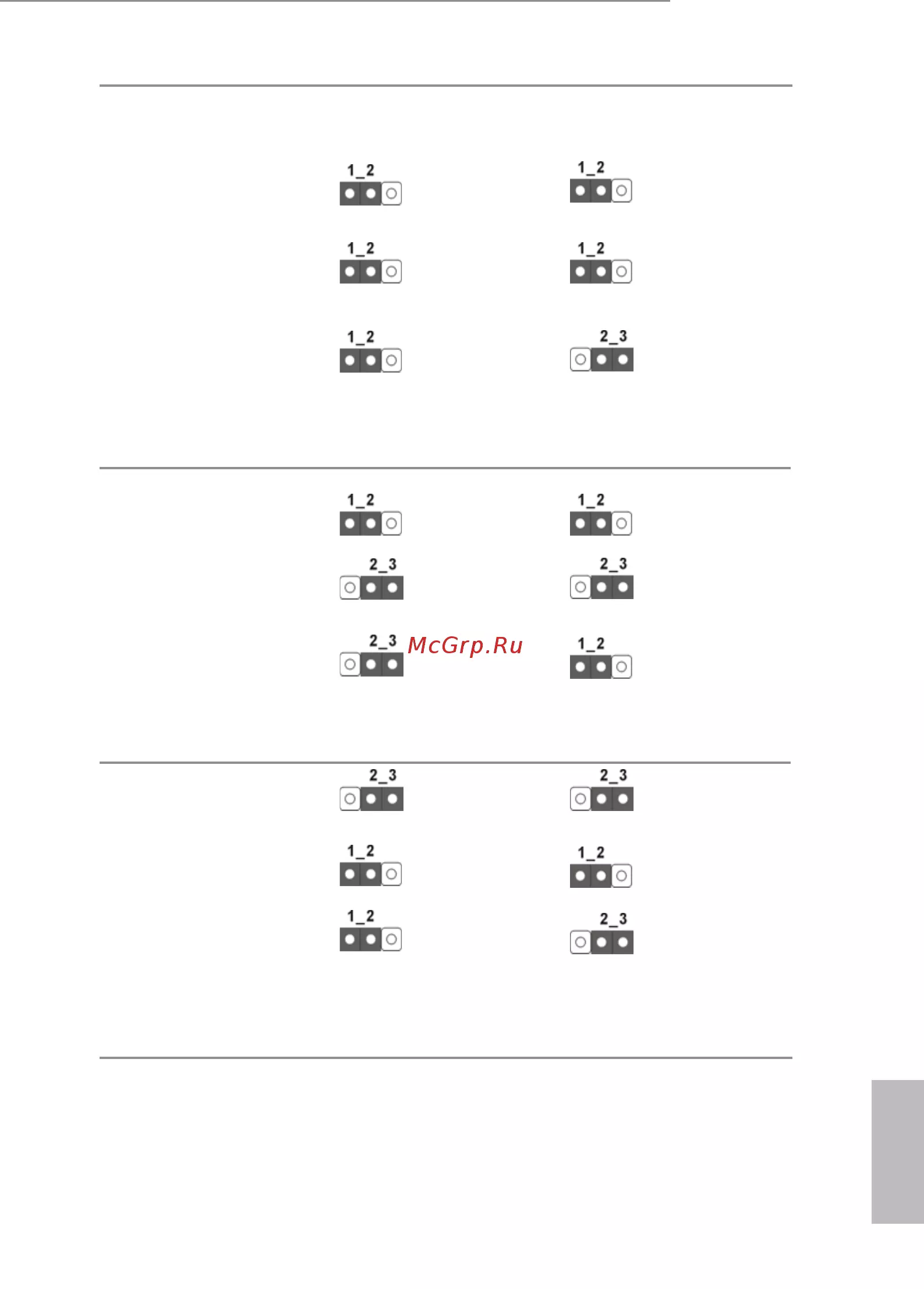

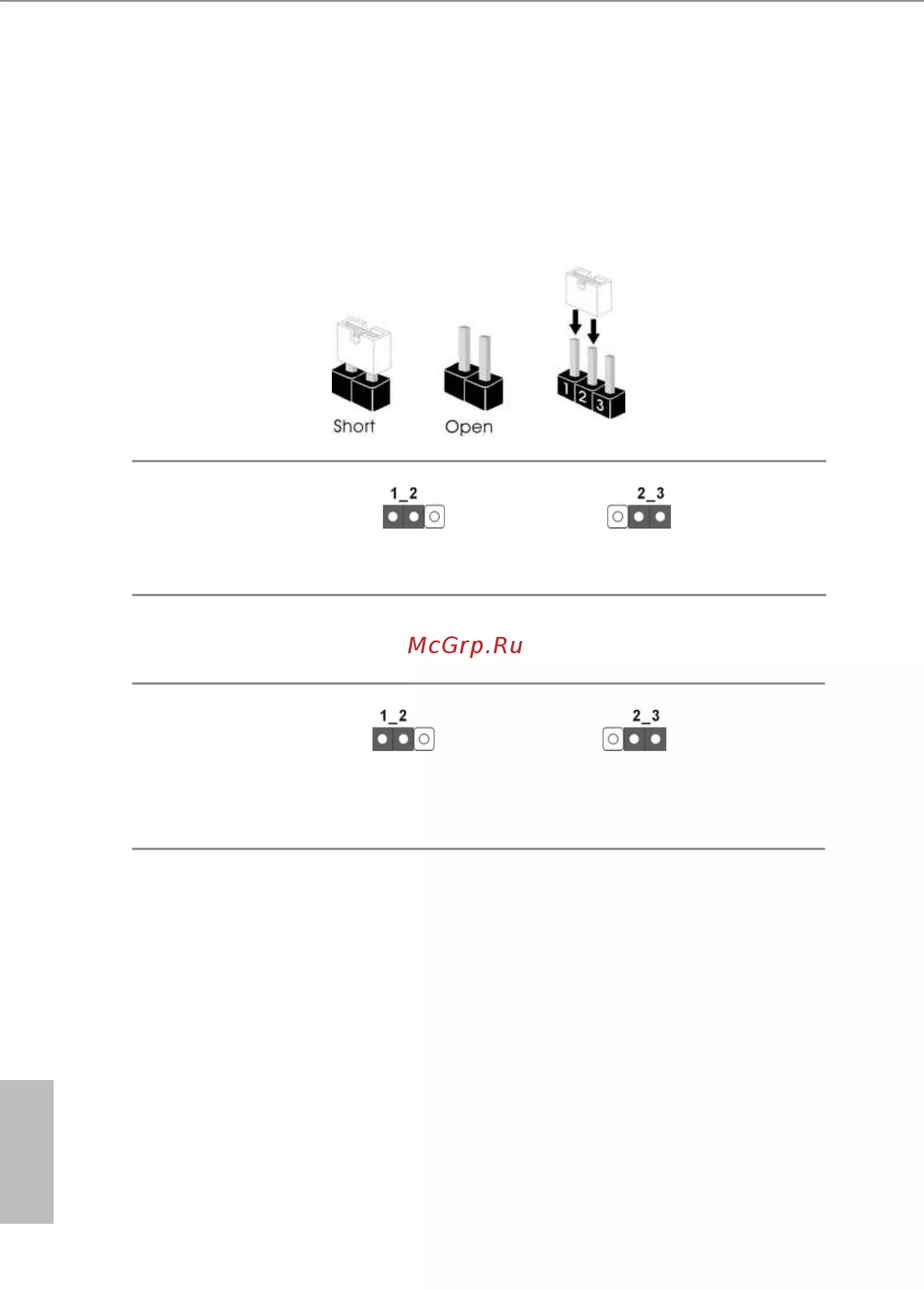

2.7 Jumper Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on

the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper

is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”

when a jumper cap is placed on these 2 pins.

SATA DOM Power Jumper*

(3-pin SATAPWR1)

(No. 25)

SATA DOM

SATA Cable (Default)

*SATAPWR1 allows you to select the internal voltage source for the SATA DOM

connected on the SATA_0 connector (No.24).

CPU PECI Mode Jumper

(3-pin PECI1)

(No. 44)

Reserved Only

CPU PECI connect to BMC

(Default)
