76 77
English

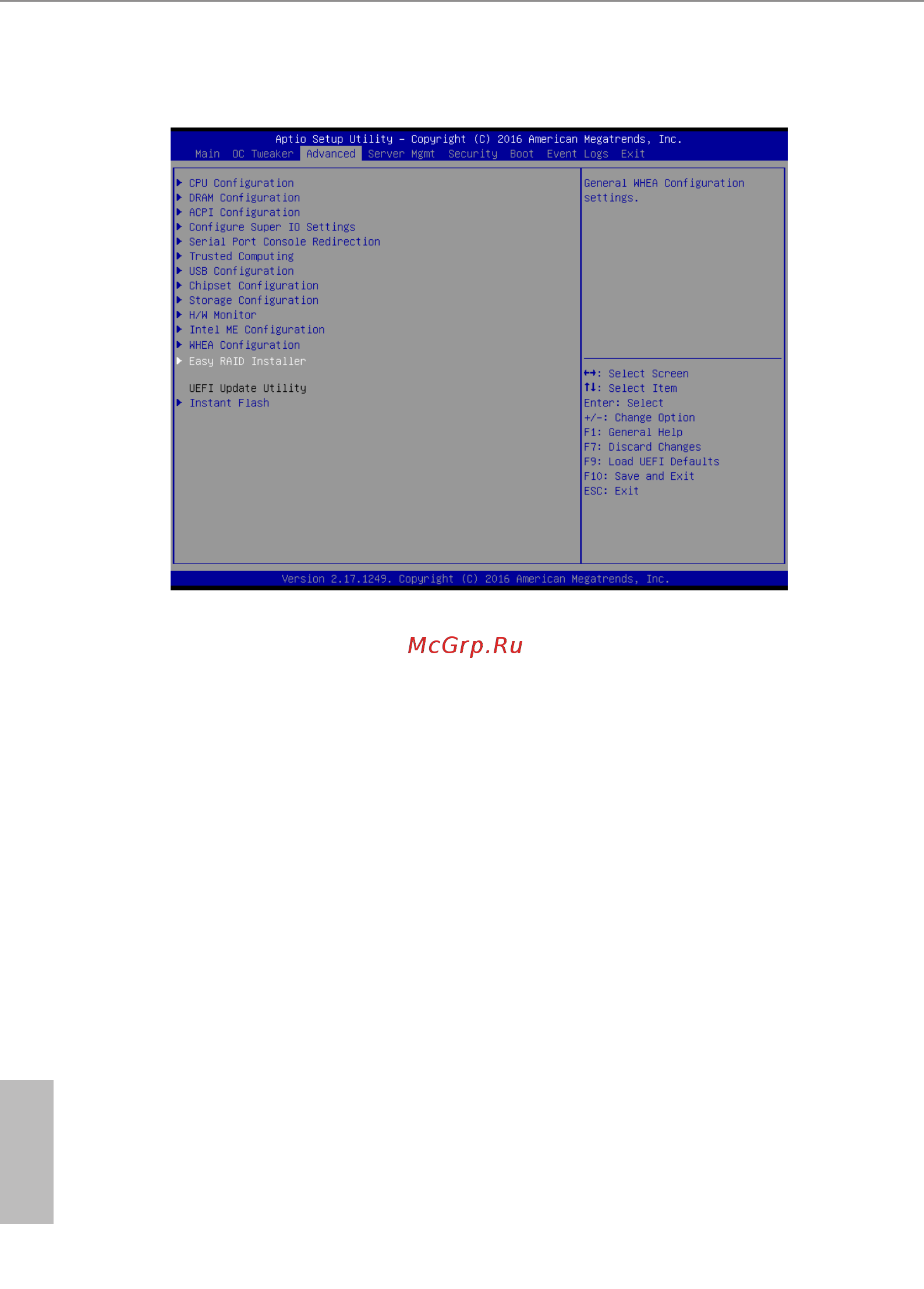

3.4.13 Easy RAID Installer
Easy RAID Installer can help you to copy the RAID driver from a support CD to your USB
storage device. Aer copying the RAID driver to your USB storage device, please change
“SATA Mode” to “RAID”, then you can start installing the OS in RAID mode.
