EPC612D8 Series
52 53
English
Setting wrong values in this section may cause the system to malfunction.

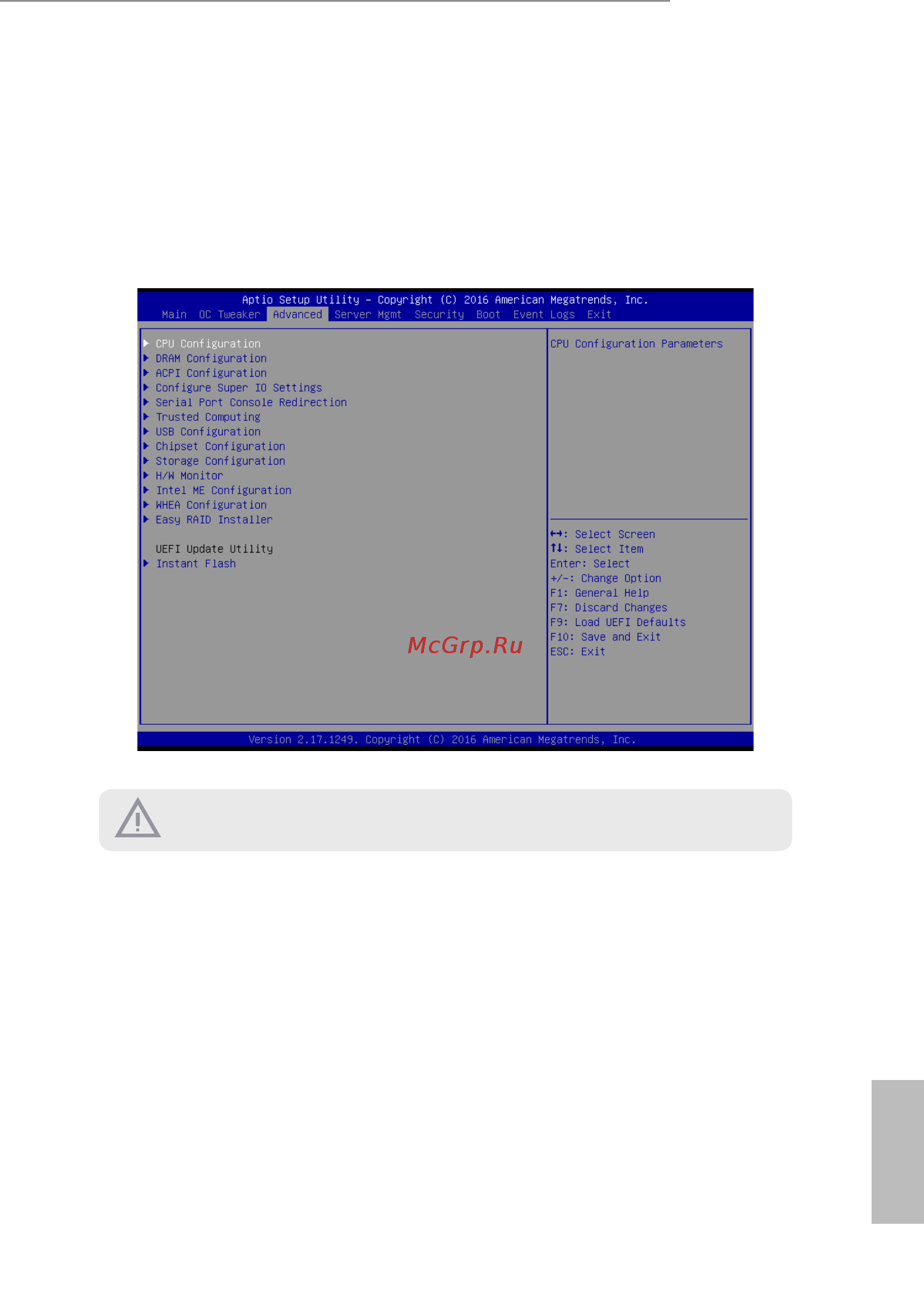

3.4 Advanced Screen
In this section, you may set the congurations for the following items: CPU Conguration,
DRAM Conguration, ACPI Conguration, Congure Super IO Settings, Serial Port Con-
sole Redirection, Trusted Computing, USB Conguration, Chipset Conguration, Storage
Conguration, H/W Monitor, Intel ME Conguration, Easy RAID Installer and Instant
Flash.
