EPC612D8 Series
74 75
English

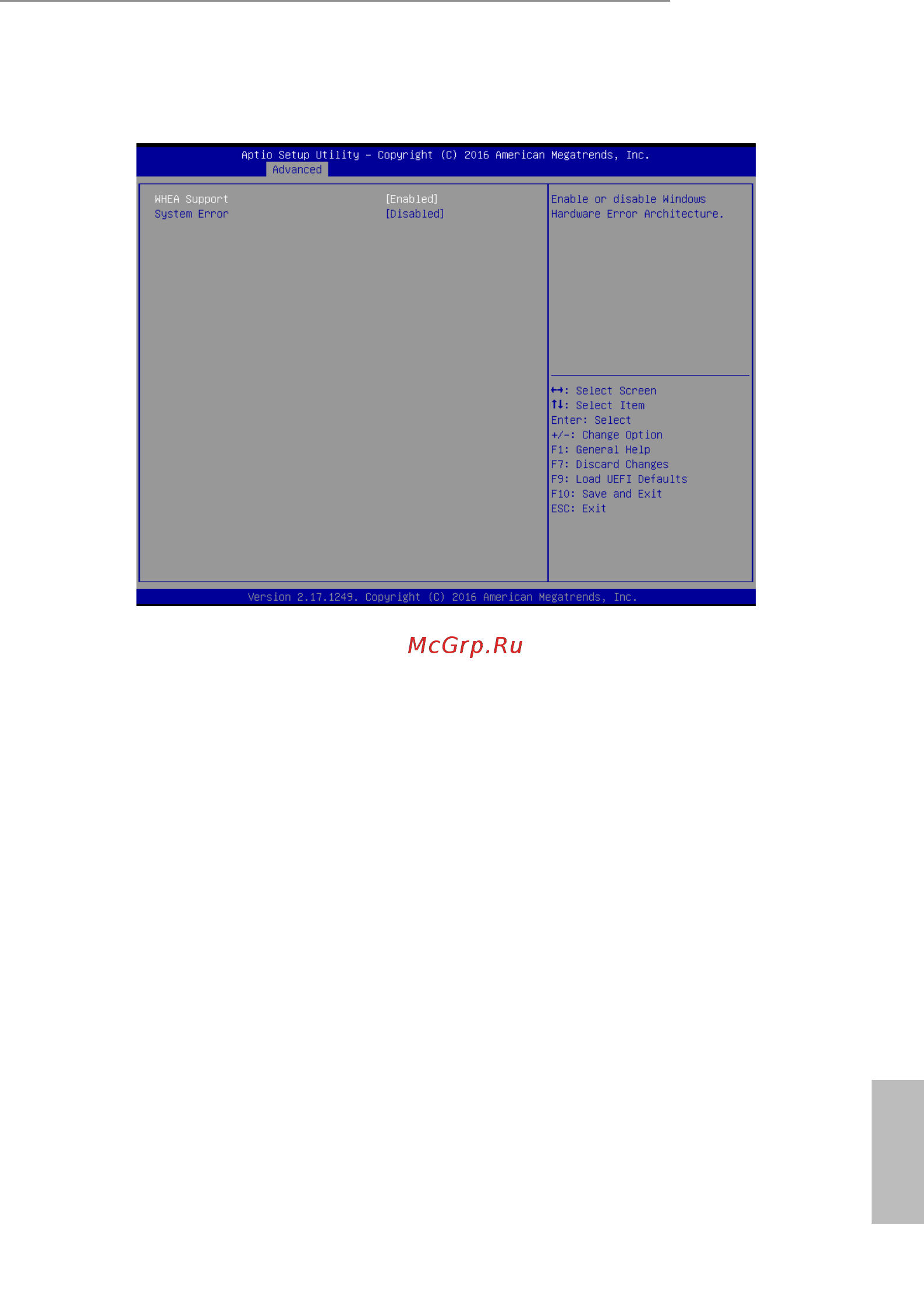

3.4.12 WHEA Conguration
WHEA Support
Use this item to enable or disable Windows Hardware Error Architecture.
System Error
Use this item to enable or disable System Error feature. When it is set to [Enabled], you can
congure Memory Error and PCIE Error log features.
