66 67
English

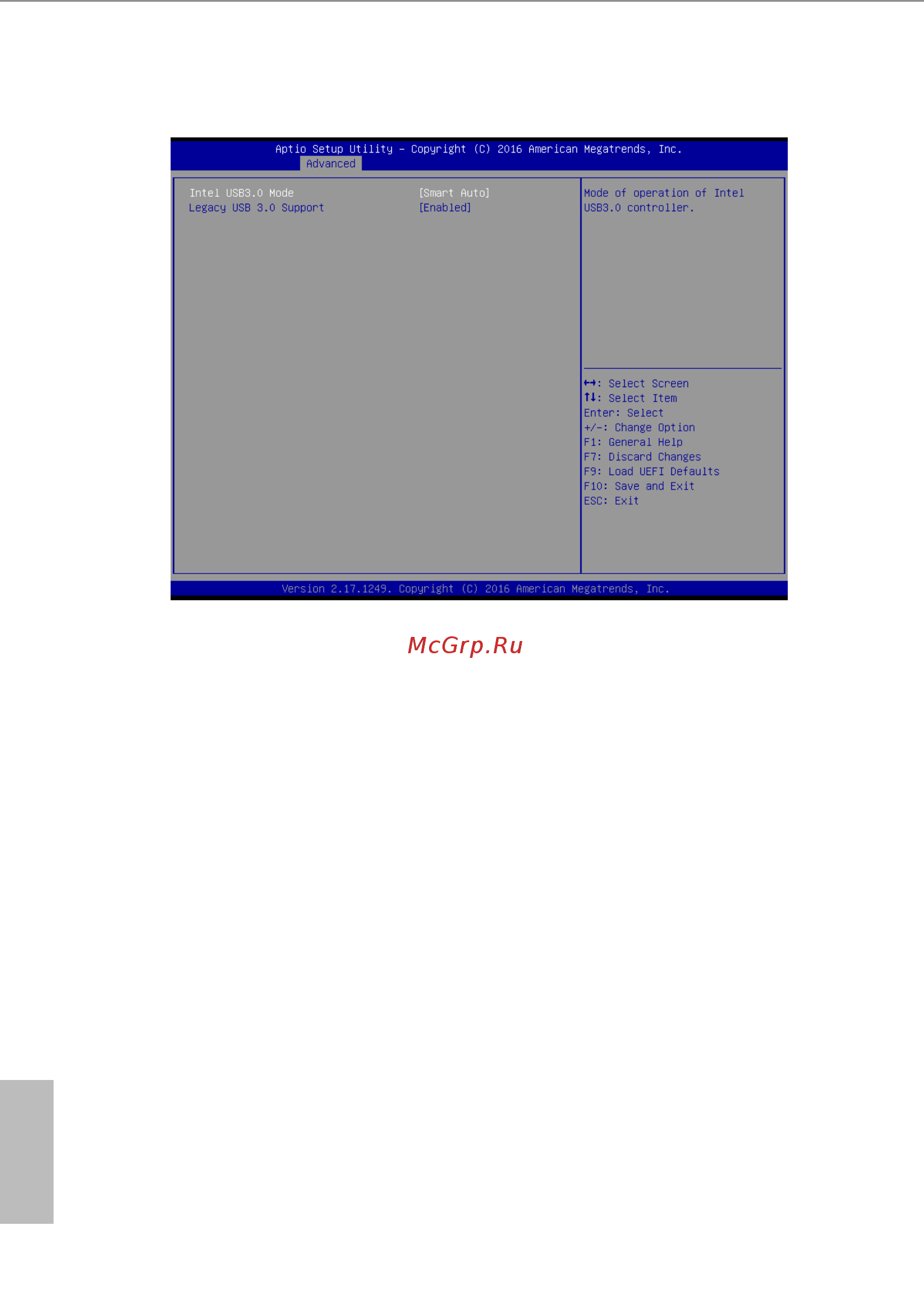

3.4.7 USB Conguration
Intel USB3.0 Mode
Use this item to select the mode of operation of Intel USB3.0 controller.
Legacy USB 3.0 Support
Use this item to enable or disable Legacy OS Support for USB 3.0 devices.
