EPC612D8 Series
72 73
English

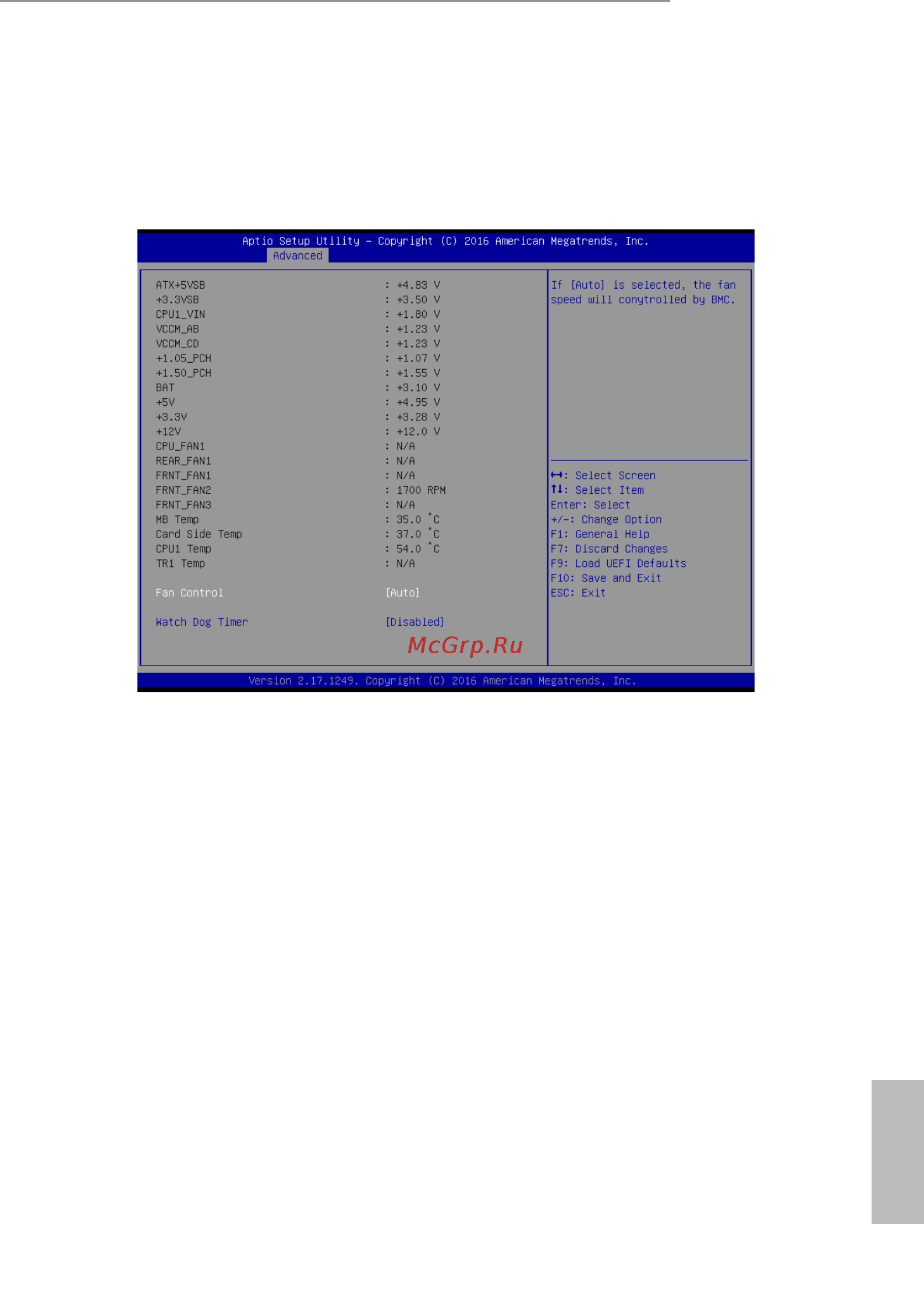

3.4.10 H/W Monitor Screen
In this section, it allows you to monitor the status of the hardware on your system, includ-
ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed,
chassis fan speed, and the critical voltage.
Fan Control
If [Auto] is selected, the fan speed will controlled by BMC.
Watch Dog Timer
is allows you to enable or disable the Watch Dog Timer. e default value is [Disabled].
