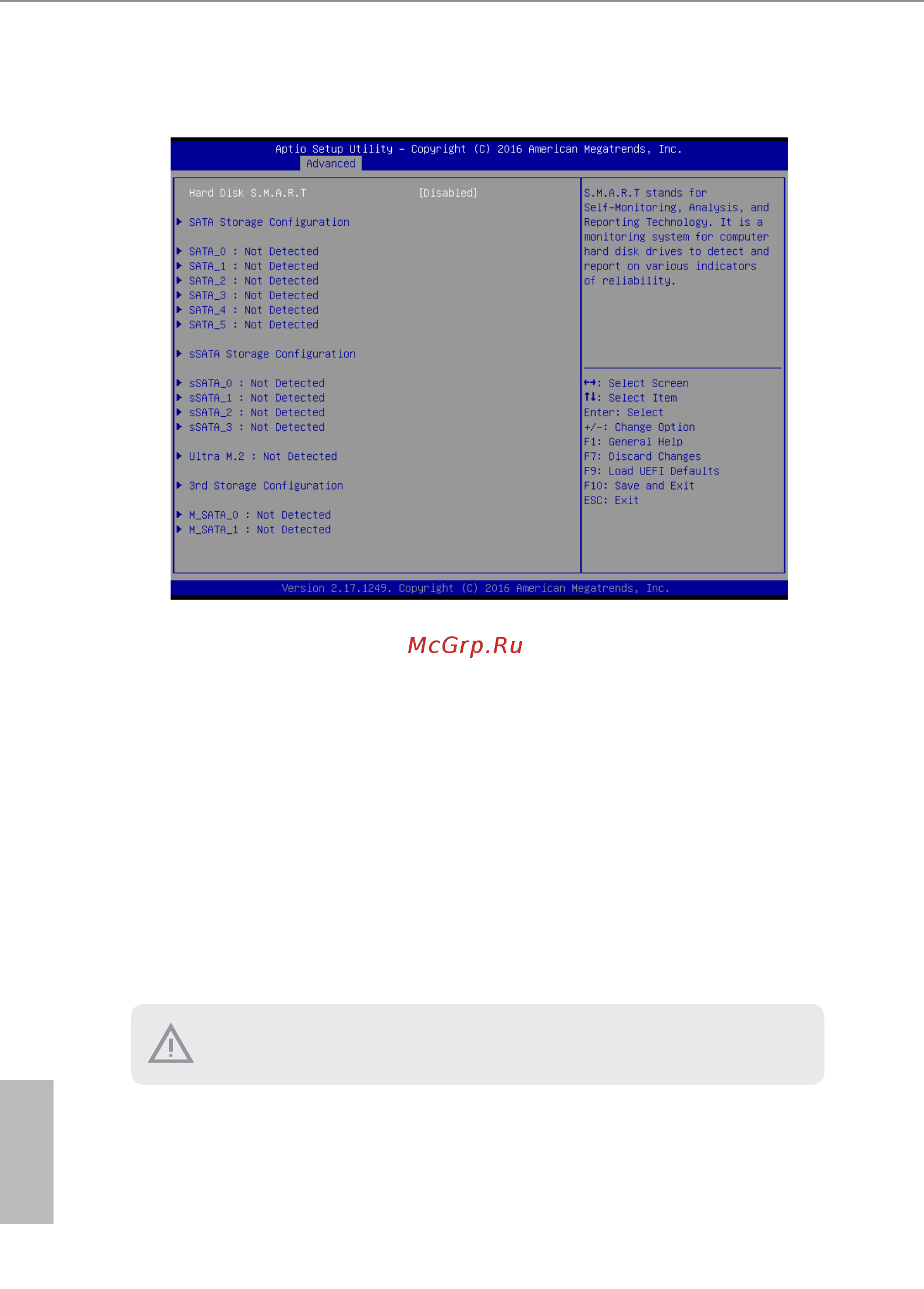

![ASRock EPC612D8A-TB [76/102] Storage configuration](/views2/1695358/page76/bg4c.png)
70 71
English
3.4.9 Storage Conguration
Hard Disk S.M.A.R.T.
Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting
Technology) feature. Conguration options: [Disabled] and [Enabled].
SATA Storage Conguration
SATA Controller
Use this item to enable or disable SATA Controller.
SATA Mode Selection
Use this to select SATA mode. Configuration options: [Disabled], [IDE Mode], [AHCI
Mode] and [RAID Mode]. e default value is [AHCI Mode].
AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will
improve SATA disk performance but IDE mode does not have these advantages.
SATA Aggressive Link Power Mgmt
Use this item to congure SATA Aggressive Link Power Management.
