![ASRock EPC612D8A-TB [80/102] Intel me configuration](/views2/1695358/page80/bg50.png)
74 75
English

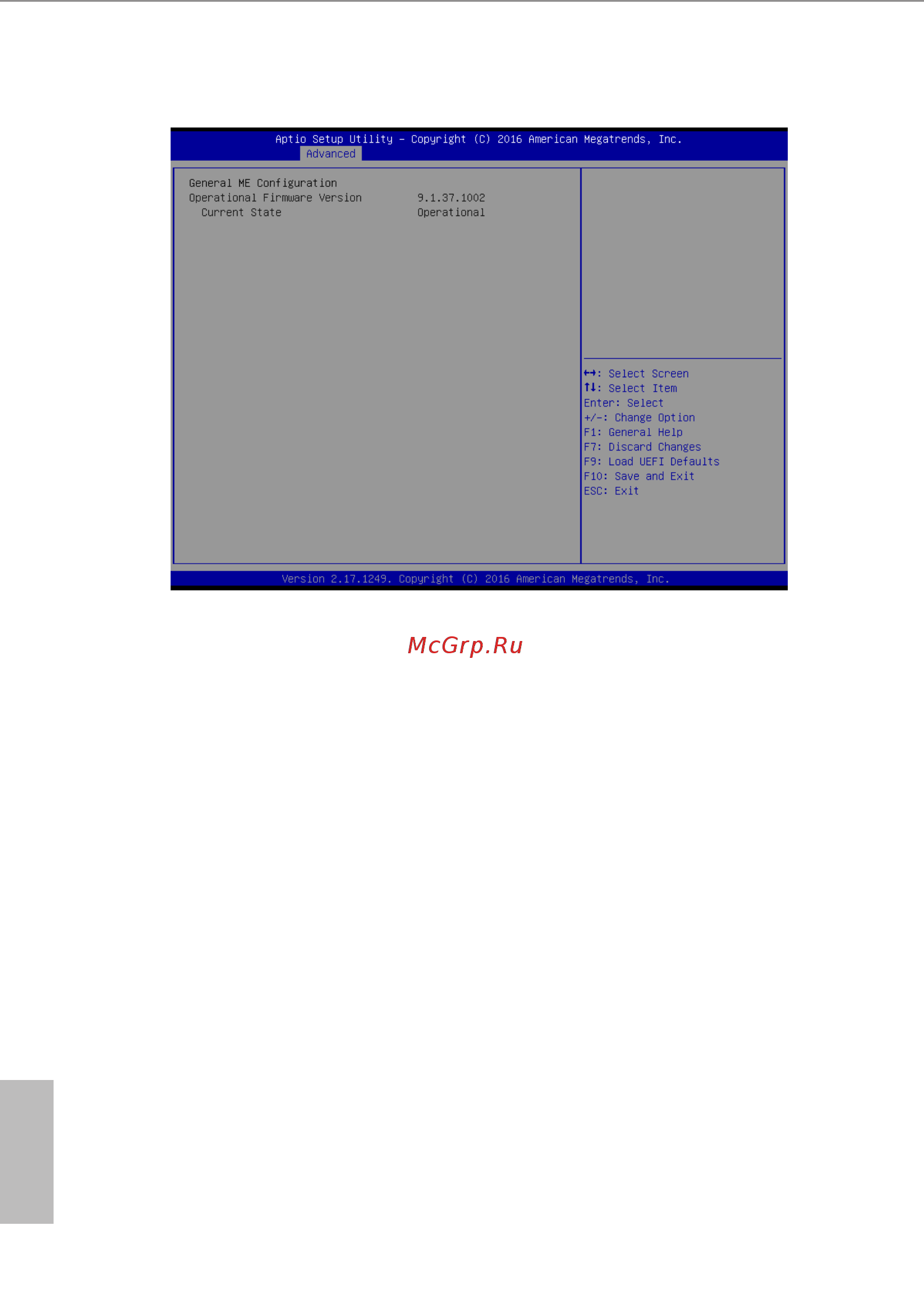

3.4.11 Intel ME Conguration
ME Subsystem screen displays the Intel ME Subsystem Configuration information, such
as Operational Firmware Version, ME Firmware, ME Firmware Type, ME Firmware SKU
and ME File System Integrity Vaalue.
