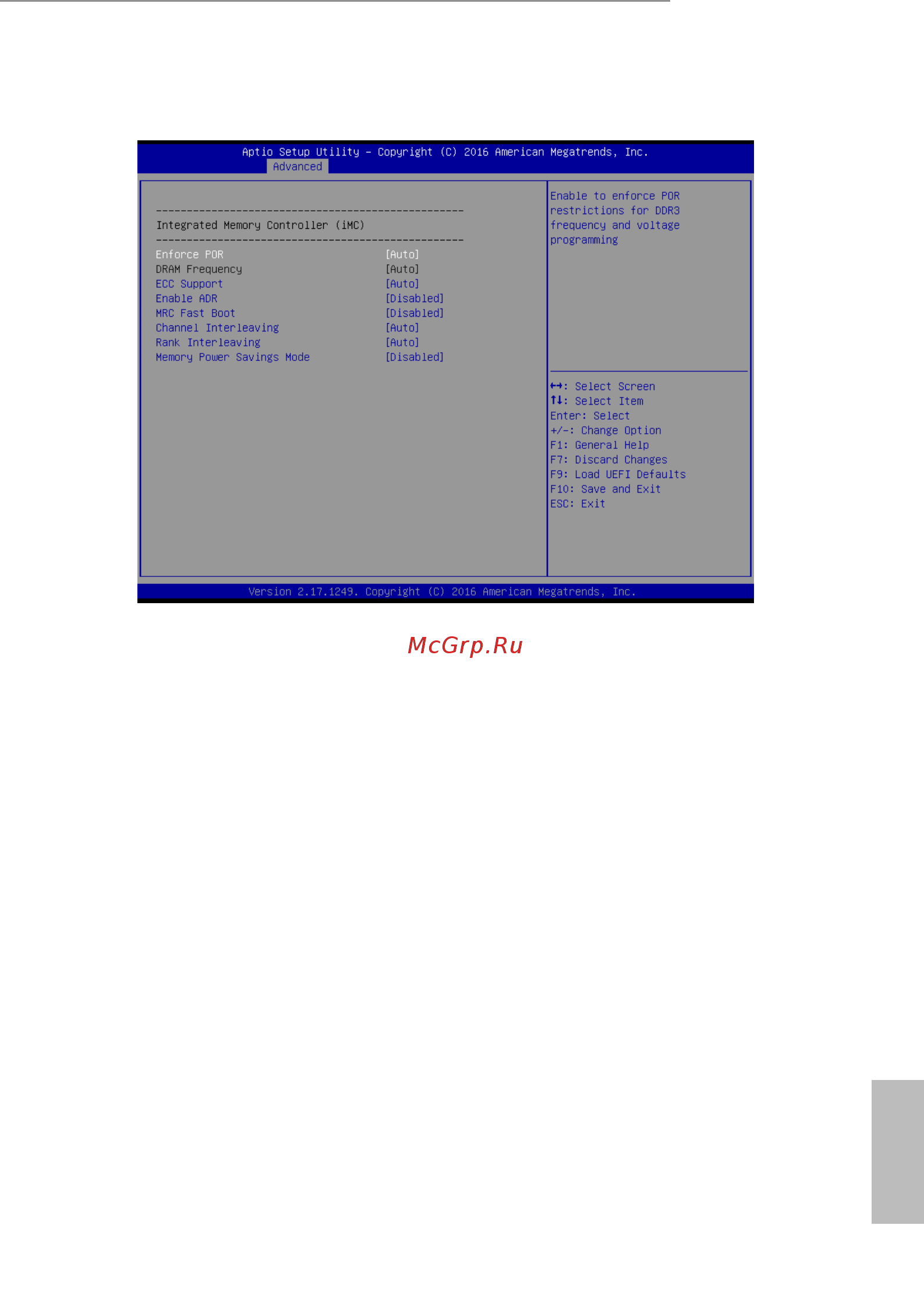

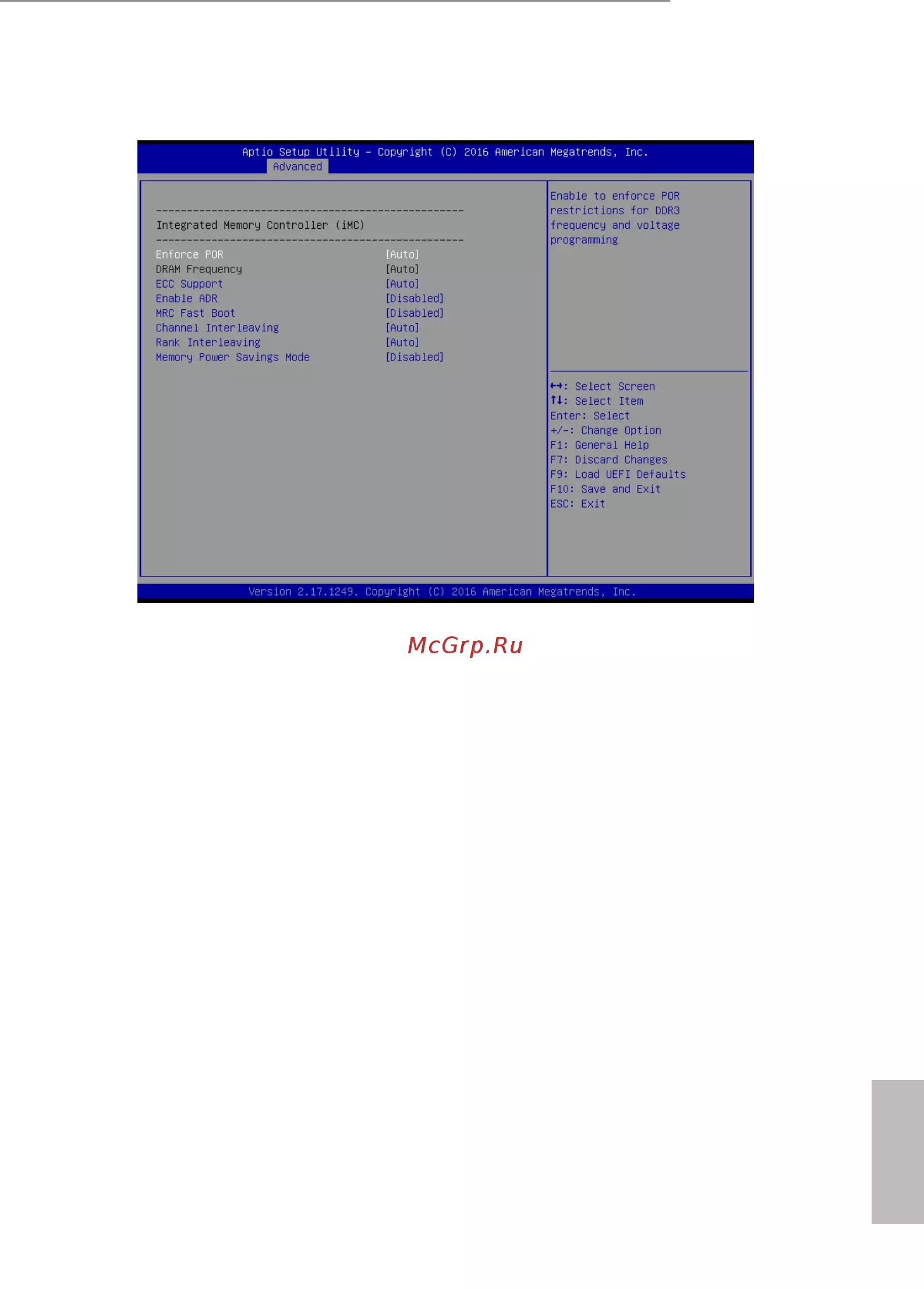

3.4.2 DRAM Conguration
Enforce POR
Enable to enforce POR restrictions for DDR4 frequency and voltage programming.
DRAM Frequency
If [Auto] is selected, the motherboard will detect the memory module(s) inserted and as-
sign the appropriate frequency automatically.
ECC Support
is allows you to enable or disable the DDR ECC support feature.
Enable ADR
Use this item to enable the detecting and enabling of ADR.
MRC Fast Boot
When enabled, portions of memory reference code will be skipped when possible to
increase boot speed.
Channel Interleaving
Use this item to select Channel Interleaving setting.
