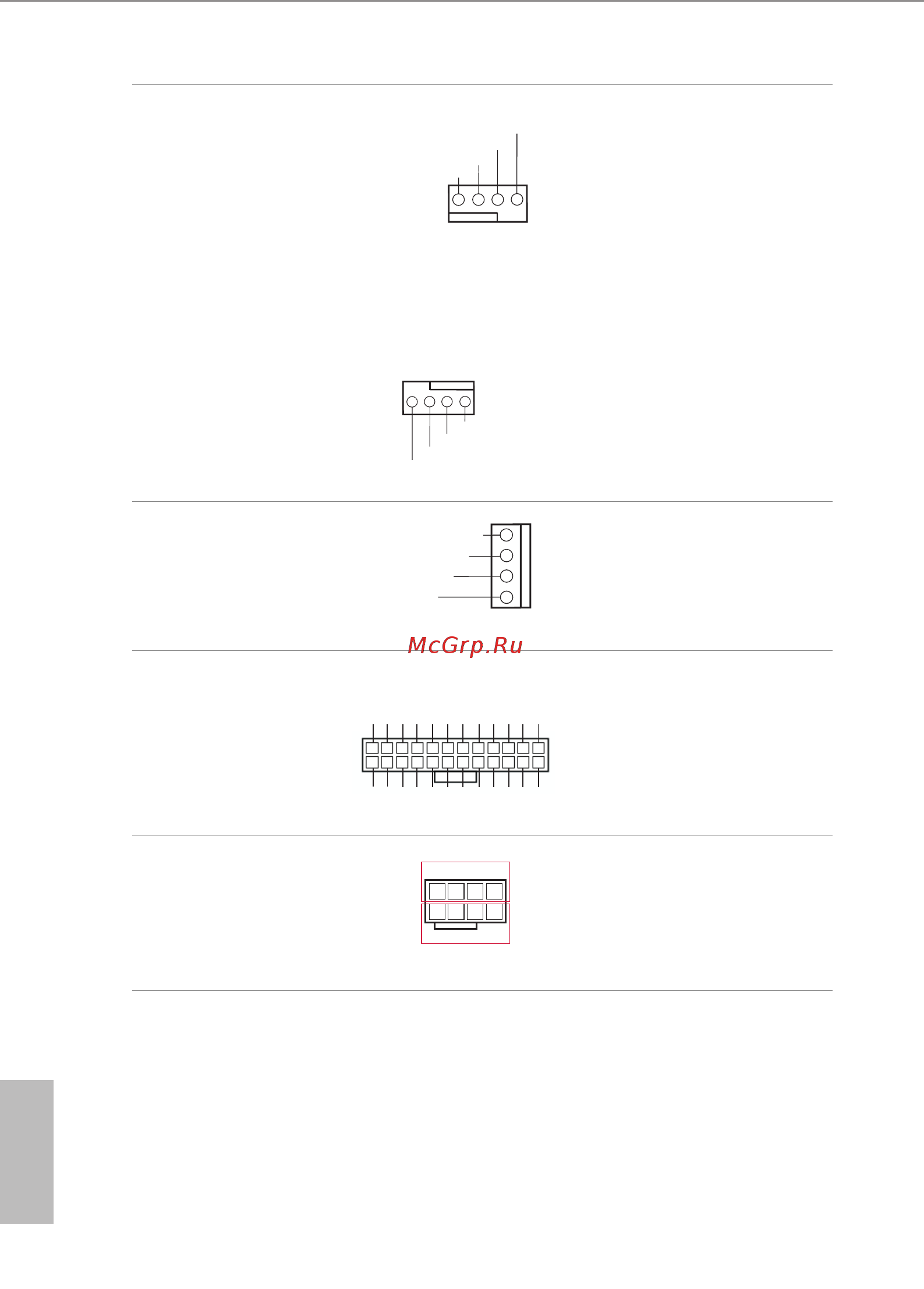

Front and Rear Fan
Connectors
(4-pin FRONT_FAN1)
(No. 14)
(4-pin FRONT_FAN2)
(No. 13)
(4-pin FRONT_FAN3)
(No. 32)
(4-pin R EAR _FAN1)
(see p.8 , No. 49)
(see p.11, No. 47)
FAN_SPEED
FAN_SPEED_CONTROL
GND
FAN_VOLTAGE
1234
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
4 3 2 1
Please connect fan cables to the
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
SATA Power Connectors
(4-pin SATA_PWR1)
(No. 30)
GND
+5V
GND
+12V
Please connect a SATA
power cable.
ATX Power Connector
(24-pin ATXPWR1)
(No. 5)
is motherboard provides a
24-pin ATX power connector.
To use a 20-pin ATX power
supply, please plug it along Pin
1 and Pin 13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(No. 3)
4
8
1
5
+12V2
GND
is motherboard provides
a 8-pin ATX 12V power
connector.
3V
3V
GND
GND
5V
5V
GND
PWROK_PS
5VSB
12V
12V
3V
121
13
24
3V
-12V
GND
PSON#
GND
GND
GND
5V
5V
5V
GND
N/A
