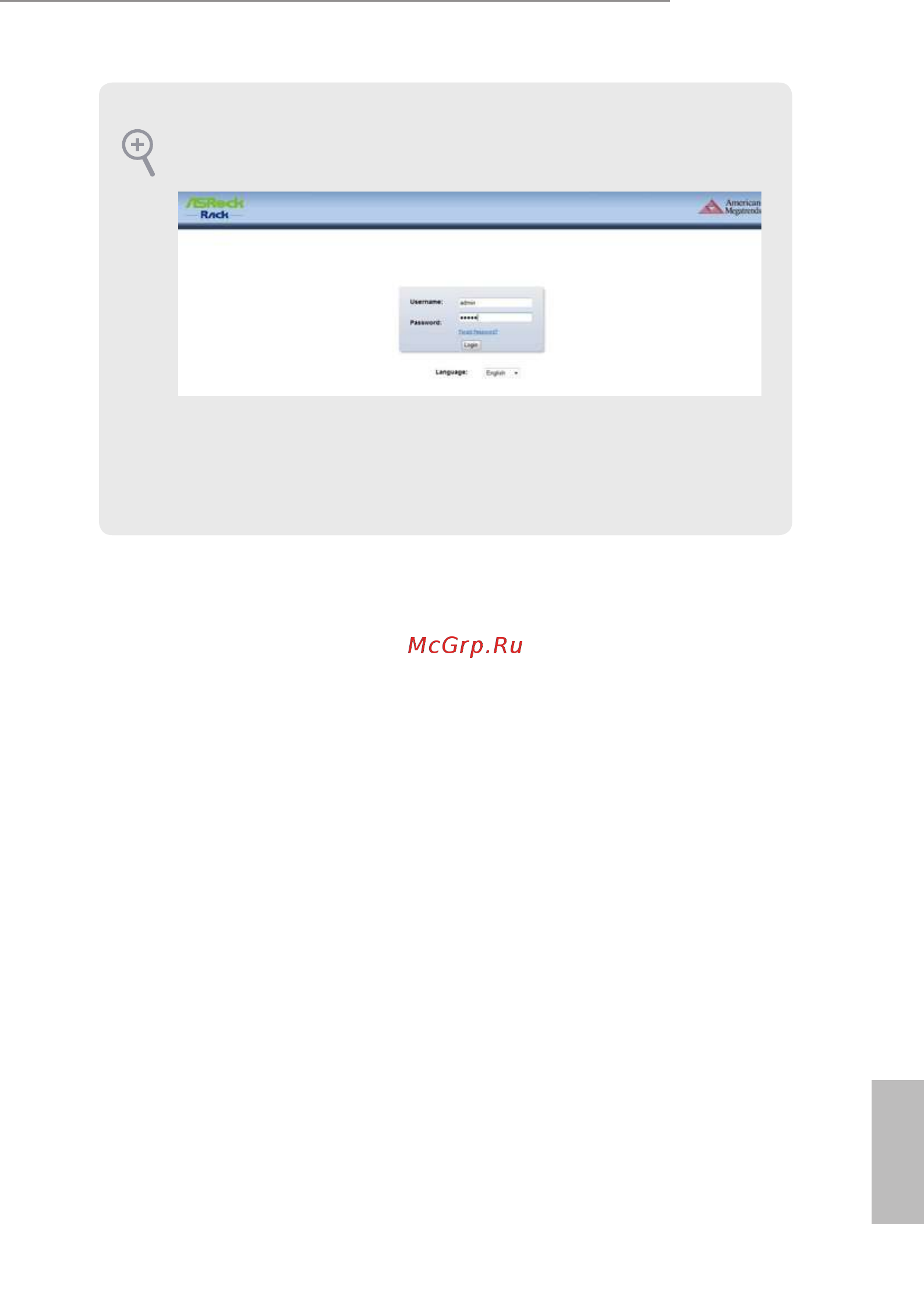

![ASRock EPC612D8A-TB [87/102] Use this to restore bmc mac from the backup](/views2/1695358/page87/bg57.png)
EPC612D8 Series
80 81
English
e default login information for the IPMI web interface is:
Username: admin
Password: admin
For more instructions on how to set up remote control environment and use the IPMI man-
agement platform, please refer to the IPMI Conguration User Guide or go to the Support
website at: http://www.asrockrack.com/support/ipmi.asp
BMC Mac Backup Tool
Use this to restore BMC Mac from the backup.
