Daikin REYQ96MTJU [168/273] J4 malfunction of heat exchanger gas pipe thermistor r81 82t
![Daikin REYQ96MTJU [168/273] J4 malfunction of heat exchanger gas pipe thermistor r81 82t](/views2/1711282/page168/bga8.png)
SiUS39-602 Troubleshooting by Indication on the Remote Controller
Troubleshooting 157

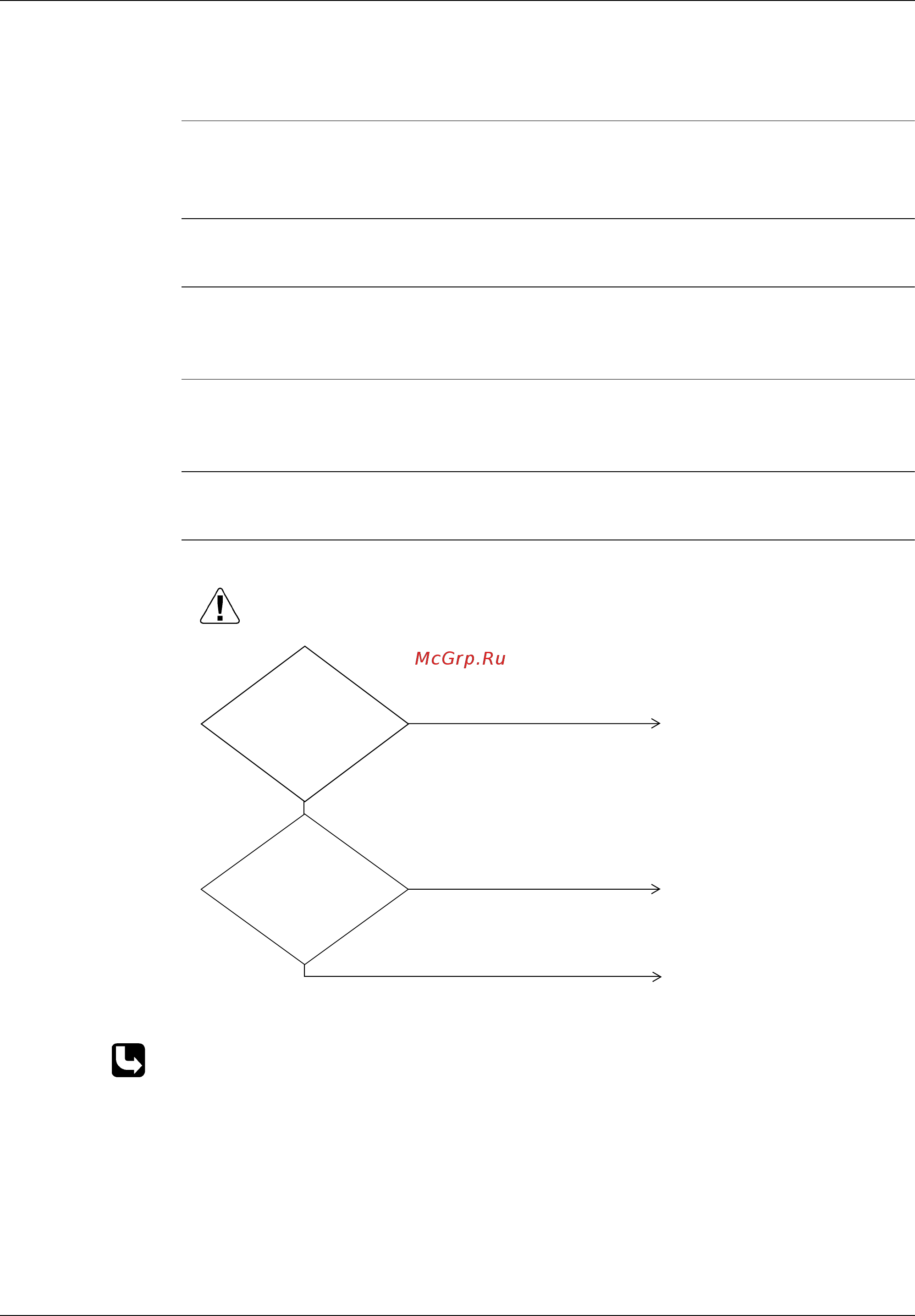

2.26 “J4” Malfunction of Heat Exchanger Gas Pipe Thermistor
(R81, 82T)
Remote
Controller
Display
J4
Applicable
Models
REYQ72M, 96M
Method of
Malfunction
Detection
Malfunction is detected according to the temperature detected by heat exchanger gas pipe
thermistor.
Malfunction
Decision
Conditions
When the heat exchanger gas pipe thermistor is short circuited or open.
Supposed
Causes
Faulty heat exchanger gas pipe thermistor (R81, 82T)
Faulty outdoor unit PC board
Troubleshooting
∗
1: Refer to thermistor resistance / temperature characteristics table on P.239.
(V3075)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Is the
resistance
measured after
removing the thermistor
(R81 or 82T) from outdoor
unit PC board normal?
(3.5 kΩ to
360 kΩ)
∗1
Replace outdoor unit PC board
(A1P).
Connect thermistor and operate
unit again.
NO
NO
Replace thermistor (R81 or 82T).
YES
YES
Is
the connector
for heat exchanger
gas pipe thermistor
connected to X37A on
outdoor unit PC
board (A1P)?
