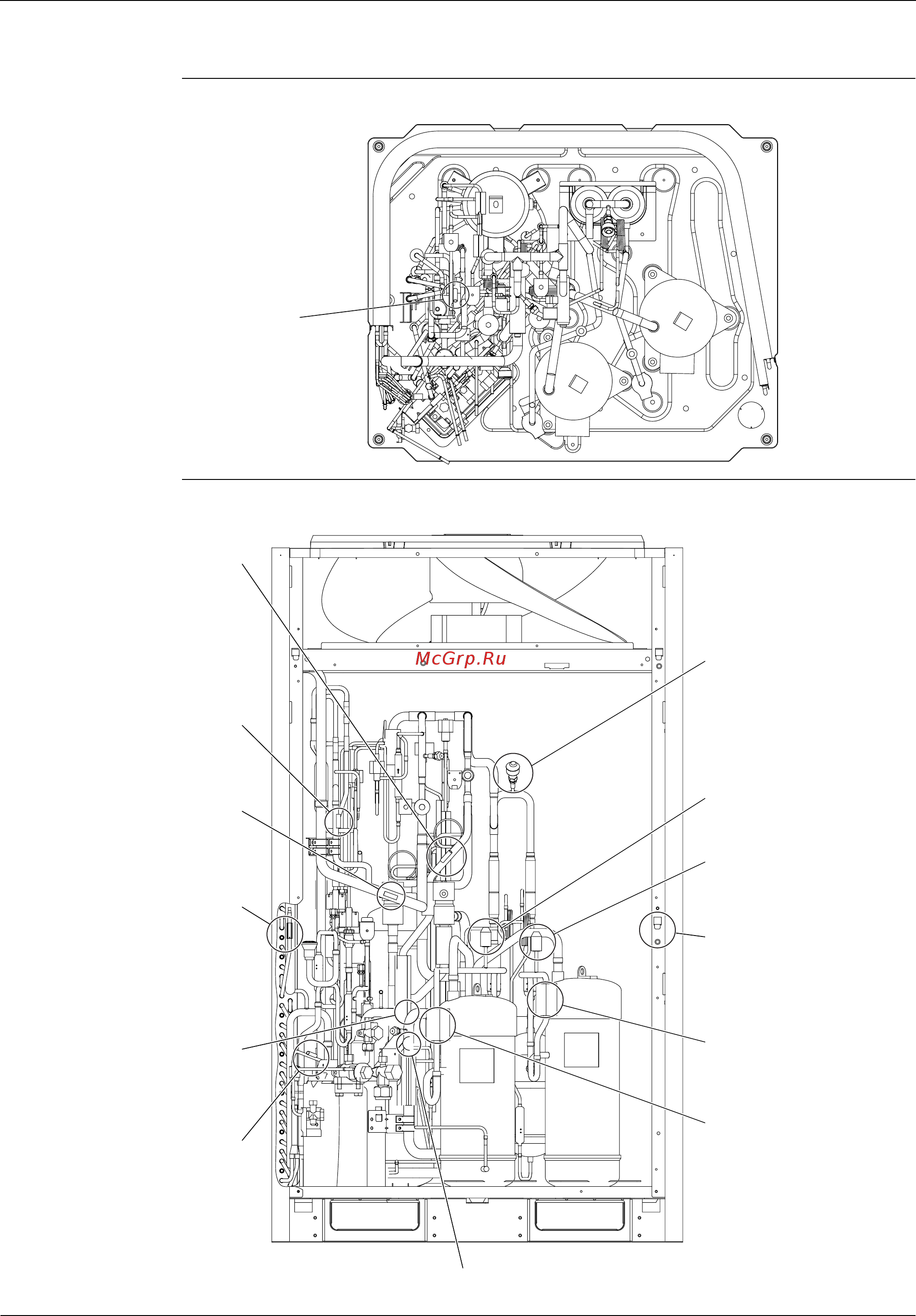

Functional Parts Layout SiUS39-602
30 Refirgerant Circuit
2.1.2 Sensor, Pressure Switch Relating
Plan
Front View
Thermistor
(Receiver outlet liquid pipe)
R6T
Thermistor
(Sub heat exchanger gas pipe)
R82T
Thermistor
(Oil equalizer pipe)
R7T
Pressure sensor (Low pressure) S2NPL
Thermistor
(Heat exchanger deicer)
R4T
Thermistor
(Main heat exchanger gas pipe)
R81T
Thermistor
(Suction pipe)
R2T
Thermistor
(Sub cooling heat exchanger outlet)
R5T
Pressure sensor
(High pressure)
S1NPH
Pressure switch
(High pressure INV)
S1PH
Pressure switch
(High pressure STD1)
S2PH
Thermistor
(Discharge pipe STD1)
R32T
Thermistor
(Discharge pipe INV)
R31T
Thermistor
(Ambient air temperature)
R1T
