Daikin REYQ96MTJU [171/273] Malfunction of receiver outlet liquid pipe thermistor r6t
![Daikin REYQ96MTJU [171/273] Malfunction of receiver outlet liquid pipe thermistor r6t](/views2/1711282/page171/bgab.png)

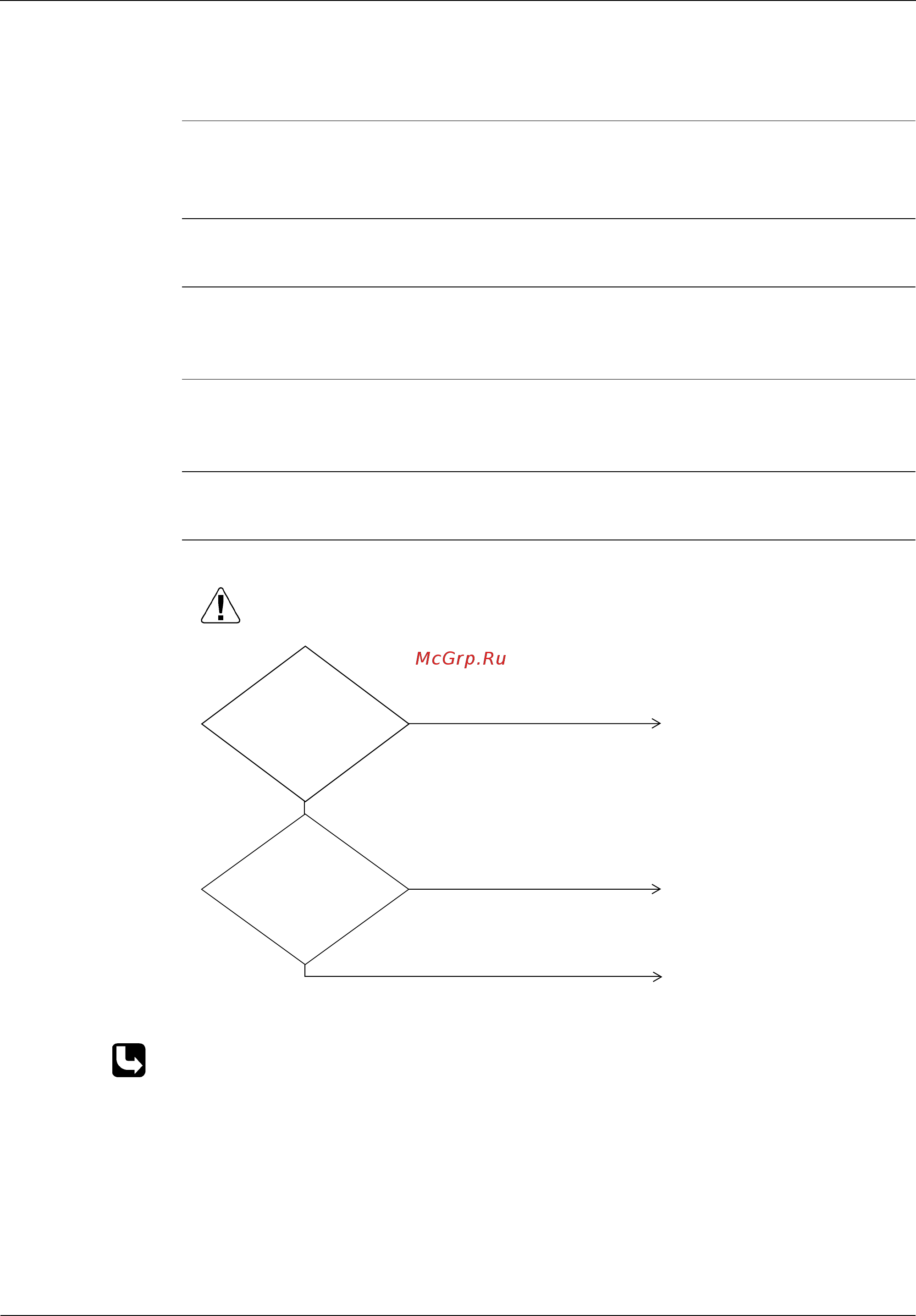

Troubleshooting by Indication on the Remote Controller SiUS39-602
160 Troubleshooting
2.29
“
J7
”
Malfunction of Receiver Outlet Liquid Pipe
Thermistor (R6T)
Remote
Controller
Display
J7
Applicable
Models
REYQ96M
Method of
Malfunction
Detection
Malfunction is detected according to the temperature detected by receiver outlet liquid pipe
thermistor.
Malfunction
Decision
Conditions
When the receiver outlet liquid pipe thermistor is short circuited or open.
Supposed
Causes
Faulty receiver outlet liquid pipe thermistor (R6T)
Faulty outdoor unit PC board
Troubleshooting
∗
1: Refer to thermistor resistance / temperature characteristics table on P.239.
(V3075)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Is the
resistance
measured after
removing the thermistor
(R6T) from outdoor unit PC
board normal?
(3.5 kΩ to
360 kΩ)
∗1
Replace outdoor unit PC board
(A1P).
Connect thermistor and operate
unit again.
NO
NO
Replace thermistor (R6T).
YES
YES
Is
the connector
for receiver
outlet liquid pipe thermistor
connected to X37A on
outdoor unit PC
board (A1P)?
