Daikin REYQ96MTJU [252/273] Pressure sensor
![Daikin REYQ192MTJU [252/273] Pressure sensor](/views2/1711282/page252/bgfc.png)
SiUS39-602 Pressure Sensor
Appendix 241
7. Pressure Sensor
High Pressure (PH)
Low Pressure (P
L)
P
H : Detected Pressure [High Side]
P
L : Detected Pressure [Low Side]
V
H : Output Voltage [High Side] VDC
VL : Output Voltage [Low Side] VDC
PH = 1.38V-0.69
P
L = 0.57V-0.28
P
H : High pressure
V
L : Low pressure
V : Voltage (V)

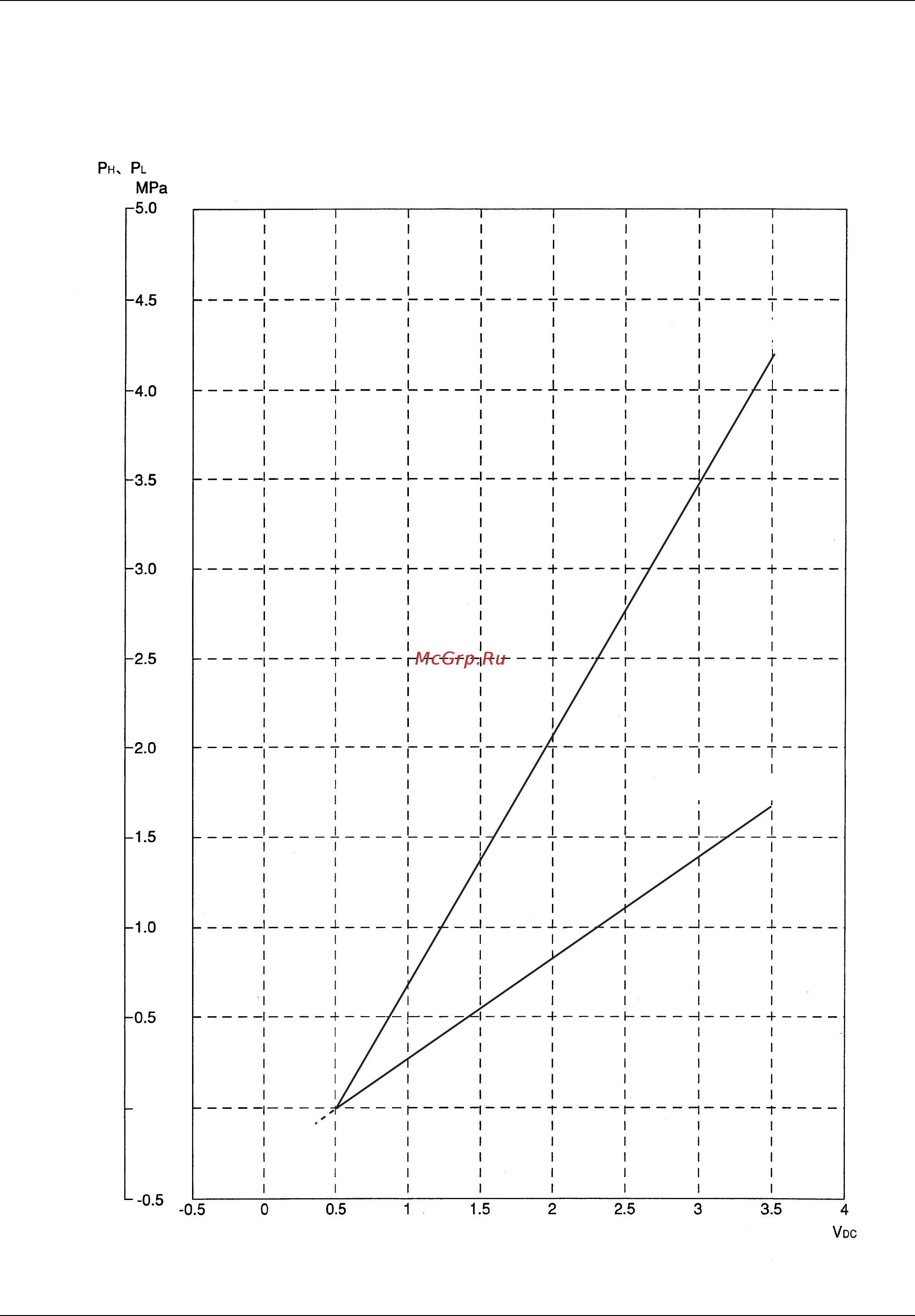

Output Voltage (VH, VL)
Detected Pressure
(V3053)
psi
652
580
507
435
362
290
217
145
72
0
-72
725
