![Daikin REYQ96MTJU [229/273] Piping diagrams](/img/pdf.png)

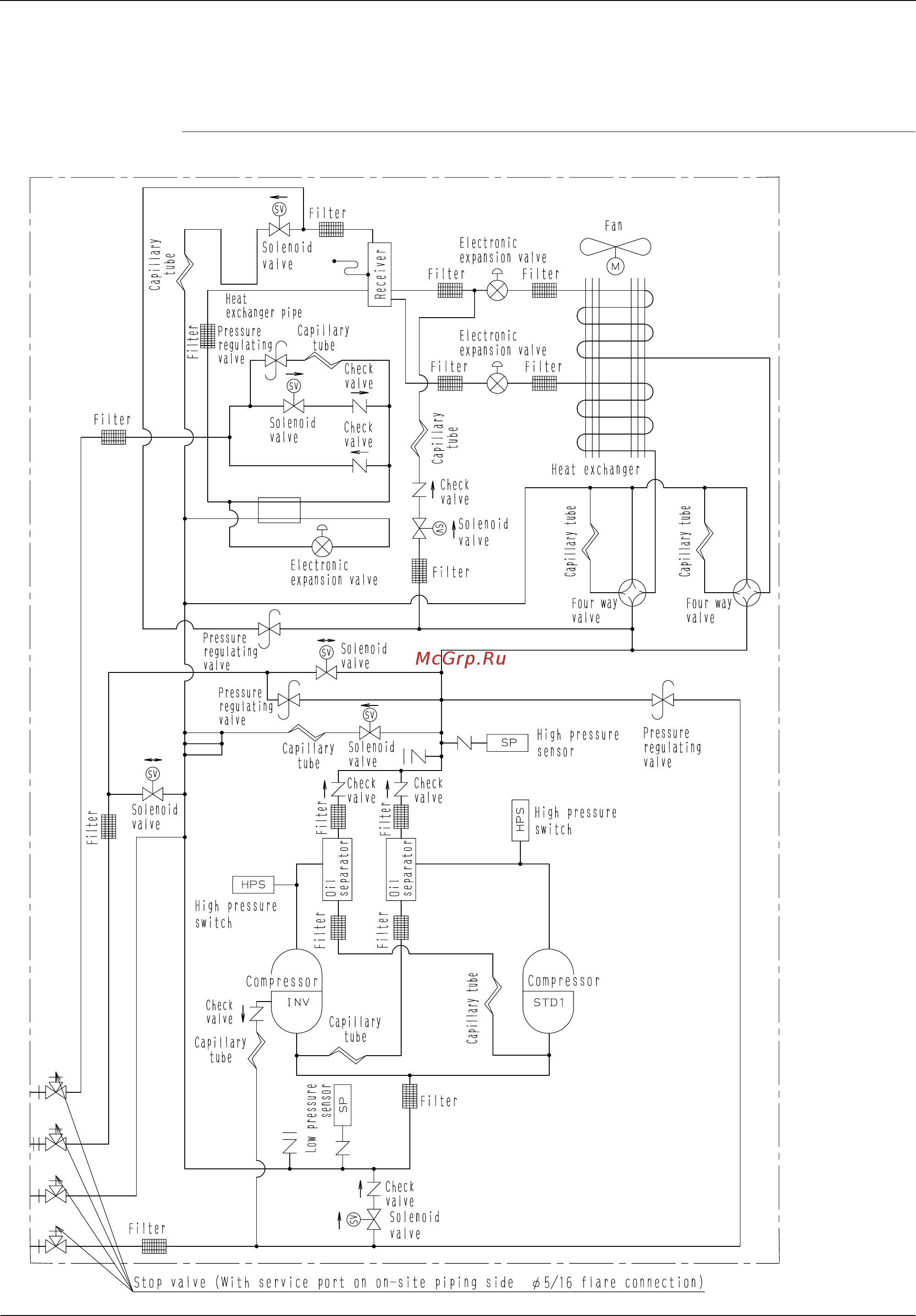

Daikin REYQ96MTJU [229/273] Piping diagrams
![Daikin REYQ96MTJU [229/273] Piping diagrams](/views2/1711282/page229/bge5.png)
