SiUS39-602 Basic Control
Function 43

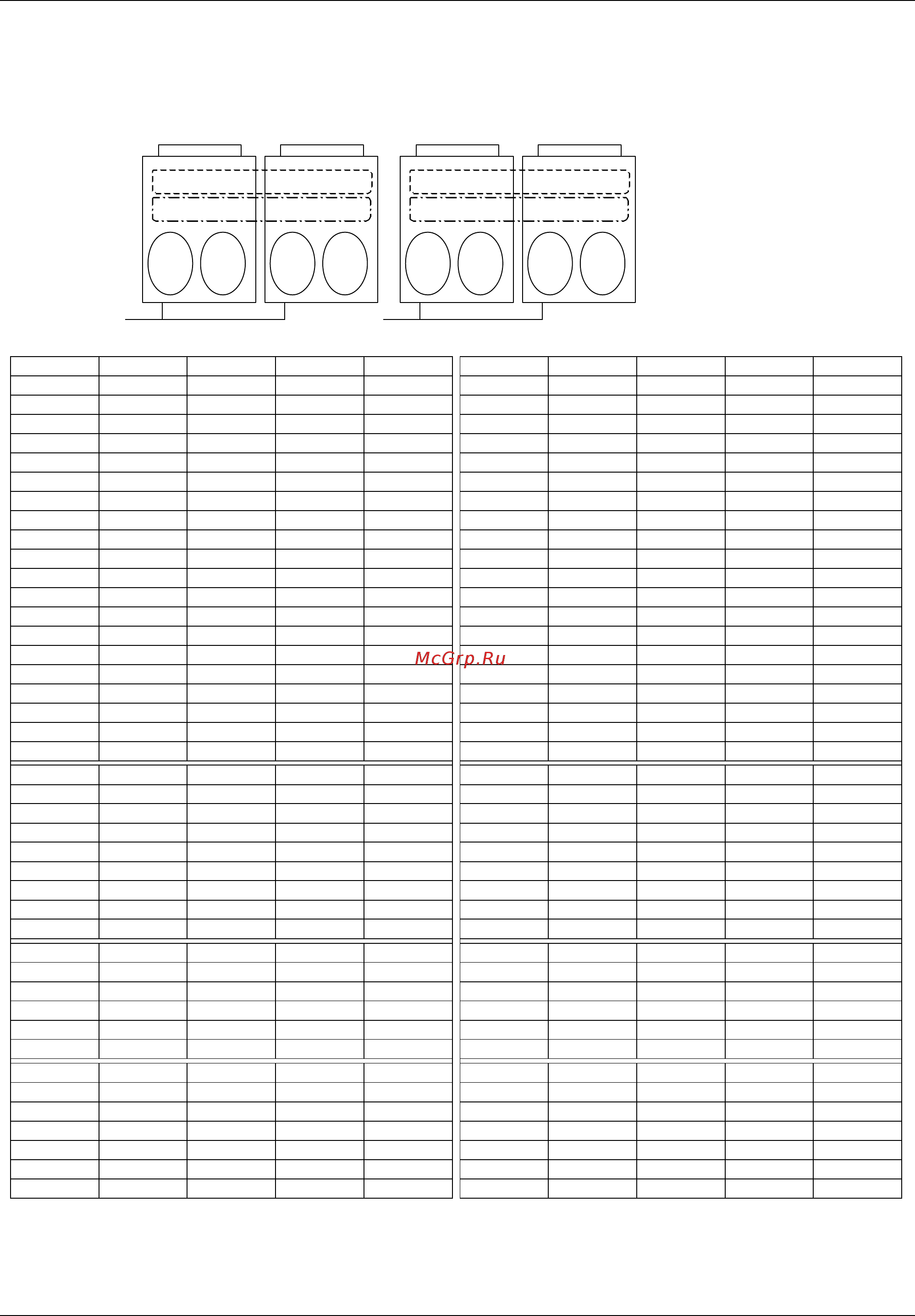

Compressor Operating Priority
INV: Inverter compressor
STD1: Standard compressor 1
Each compressor operates in the following order of priority.
REYQ168M
INV STD1
No. 1 No. 3
INV STD1
No. 2 No. 4
No. 2 No. 4 No. 1 No. 3
REYQ144M
INV STD1
No. 1 No. 3
INV STD1
No. 2 No. 4
No. 2 No. 4 No. 1 No. 3
REYQ144M
STEP
Master unit INV
Slave unit INV STD unit No.1 STD unit No.2
1 52Hz OFF OFF OFF
2 57Hz OFF OFF OFF
3 62Hz OFF OFF OFF
4 68Hz OFF OFF OFF
5 74Hz OFF OFF OFF
6 81Hz OFF OFF OFF
7 88Hz OFF OFF OFF
8 96Hz OFF OFF OFF
9 104Hz OFF OFF OFF
10 110Hz OFF OFF OFF
11 116Hz OFF OFF OFF
12 124Hz OFF OFF OFF
13 133Hz OFF OFF OFF
14 143Hz OFF OFF OFF
15 158Hz OFF OFF OFF
16 165Hz OFF OFF OFF
17 177Hz OFF OFF OFF
18 189Hz OFF OFF OFF
19 202Hz OFF OFF OFF
20 210Hz OFF OFF OFF
21 52Hz 189Hz OFF OFF
22 74Hz 189Hz OFF OFF
23 96Hz 189Hz OFF OFF
24 116Hz 189Hz OFF OFF
25 133Hz 189Hz OFF OFF
26 158Hz 189Hz OFF OFF
27 177Hz 189Hz OFF OFF
28 202Hz 189Hz OFF OFF
29 210Hz 189Hz OFF OFF
30 52Hz 189Hz ON OFF
31 88Hz 189Hz ON OFF
32 124Hz 189Hz ON OFF
33 158Hz 189Hz ON OFF
34 189Hz 189Hz ON OFF
35 210Hz 189Hz ON OFF
36 52Hz 189Hz ON ON
37 88Hz 189Hz ON ON
38 124Hz 189Hz ON ON
39 158Hz 189Hz ON ON
40 189Hz 189Hz ON ON
41 210Hz 189Hz ON ON
42 210Hz 210Hz ON ON
∗
• Compressors are operated in the order of descending priorities.
• Compressors may operate in a pattern other than those listed in above tables subject to the operating conditions.
• “Master unit”, and “slave unit” in this section are the names for control, and they will be transferred according to the
priority of rotation system.
REYQ168M
STEP
Master unit INV
Slave unit INV STD unit No.1 STD unit No.2
1 52Hz OFF OFF OFF
2 57Hz OFF OFF OFF
3 62Hz OFF OFF OFF
4 68Hz OFF OFF OFF
5 74Hz OFF OFF OFF
6 81Hz OFF OFF OFF
7 88Hz OFF OFF OFF
8 96Hz OFF OFF OFF
9 104Hz OFF OFF OFF
10 110Hz OFF OFF OFF
11 116Hz OFF OFF OFF
12 124Hz OFF OFF OFF
13 133Hz OFF OFF OFF
14 143Hz OFF OFF OFF
15 158Hz OFF OFF OFF
16 165Hz OFF OFF OFF
17 177Hz OFF OFF OFF
18 189Hz OFF OFF OFF
19 202Hz OFF OFF OFF
20 210Hz OFF OFF OFF
21 52Hz 189Hz OFF OFF
22 74Hz 189Hz OFF OFF
23 96Hz 189Hz OFF OFF
24 116Hz 189Hz OFF OFF
25 133Hz 189Hz OFF OFF
26 158Hz 189Hz OFF OFF
27 177Hz 189Hz OFF OFF
28 202Hz 189Hz OFF OFF
29 210Hz 189Hz OFF OFF
30 52Hz 189Hz ON OFF
31 88Hz 189Hz ON OFF
32 124Hz 189Hz ON OFF
33 158Hz 189Hz ON OFF
34 189Hz 189Hz ON OFF
35 210Hz 189Hz ON OFF
36 52Hz 189Hz ON ON
37 88Hz 189Hz ON ON
38 124Hz 189Hz ON ON
39 158Hz 189Hz ON ON
40 189Hz 189Hz ON ON
41 210Hz 189Hz ON ON
42 210Hz 210Hz ON ON
