Ordering an imaging unit
To order an imaging unit, contact the place where you purchased the printer.
Checking the status of parts and supplies
From the control panel, navigate to:
> Status/Supplies > > Supplies >
Configuring supply notifications
1 Open a web browser, and then type the printer IP address in the address
field.
Notes:
• View the printer IP address on the printer home screen. The IP address appears as four sets of
numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the web page correctly.
2 Click Settings > Device > Notifications.
3 From the Supplies menu, click Custom Supply Notifications.
4 Select a notification for each supply item.
5 Apply the changes.
Replacing parts and supplies
Replacing the toner cartridge

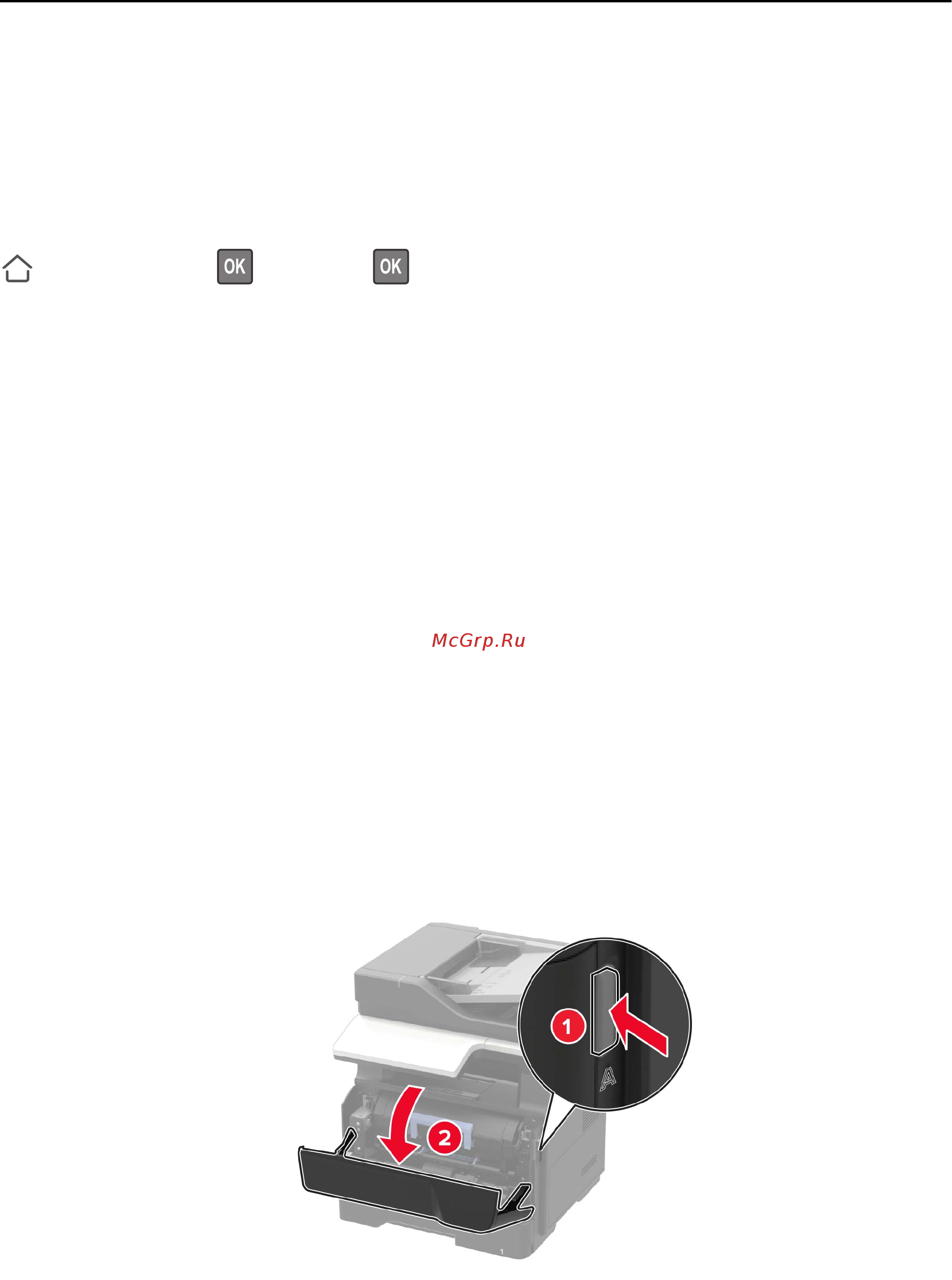

1 Open the front door.
Maintaining the printer 116
