Konica Minolta BizHub 3622 [136/202] Paper jam in the standard bin

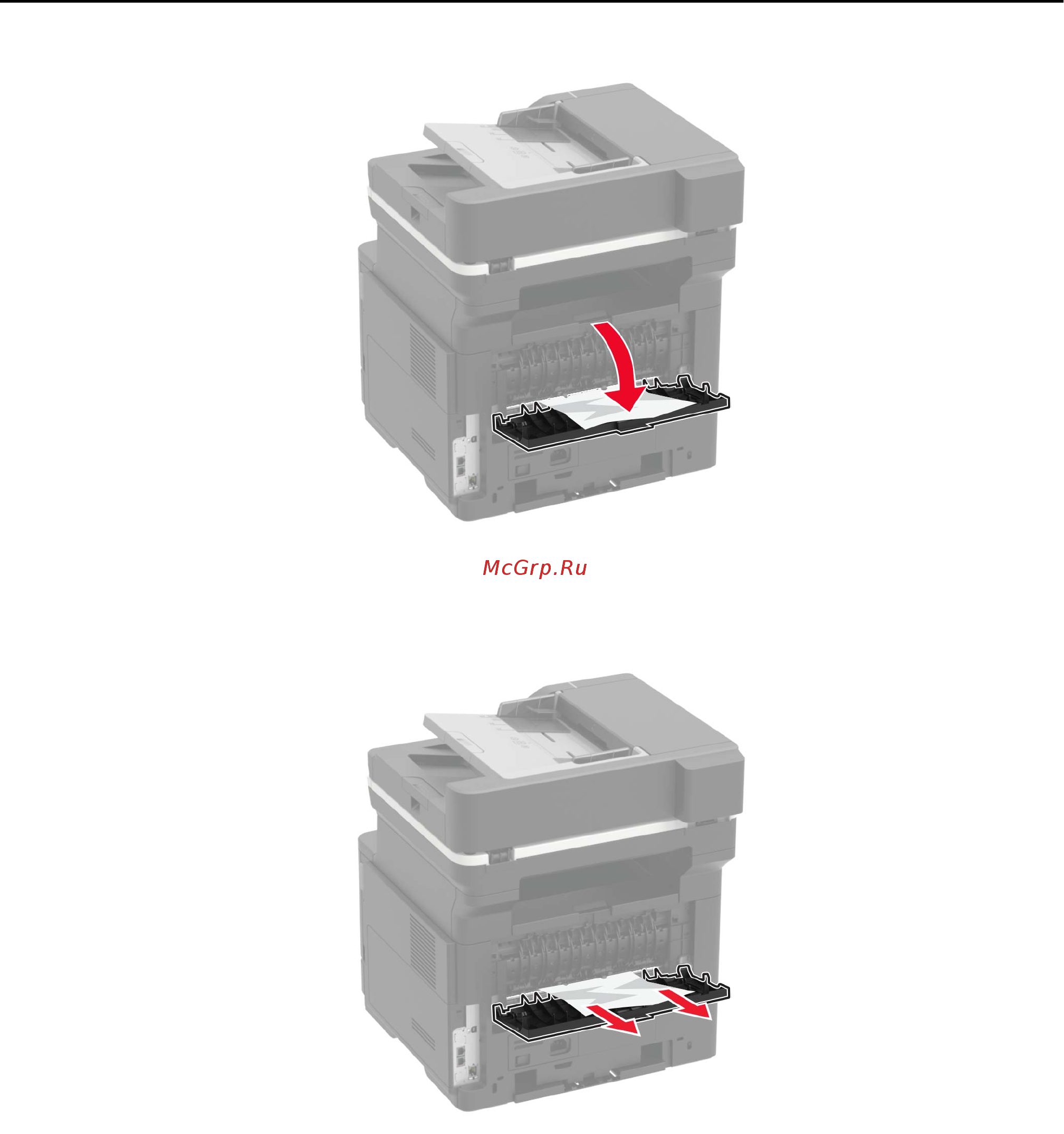

2 Remove the jammed paper.

Note: Make sure that all paper fragments are removed.

3 Close the rear door.

Paper jam in the standard bin

Remove the jammed paper.

Note: Make sure that all paper fragments are removed.

Clearing jams 136
