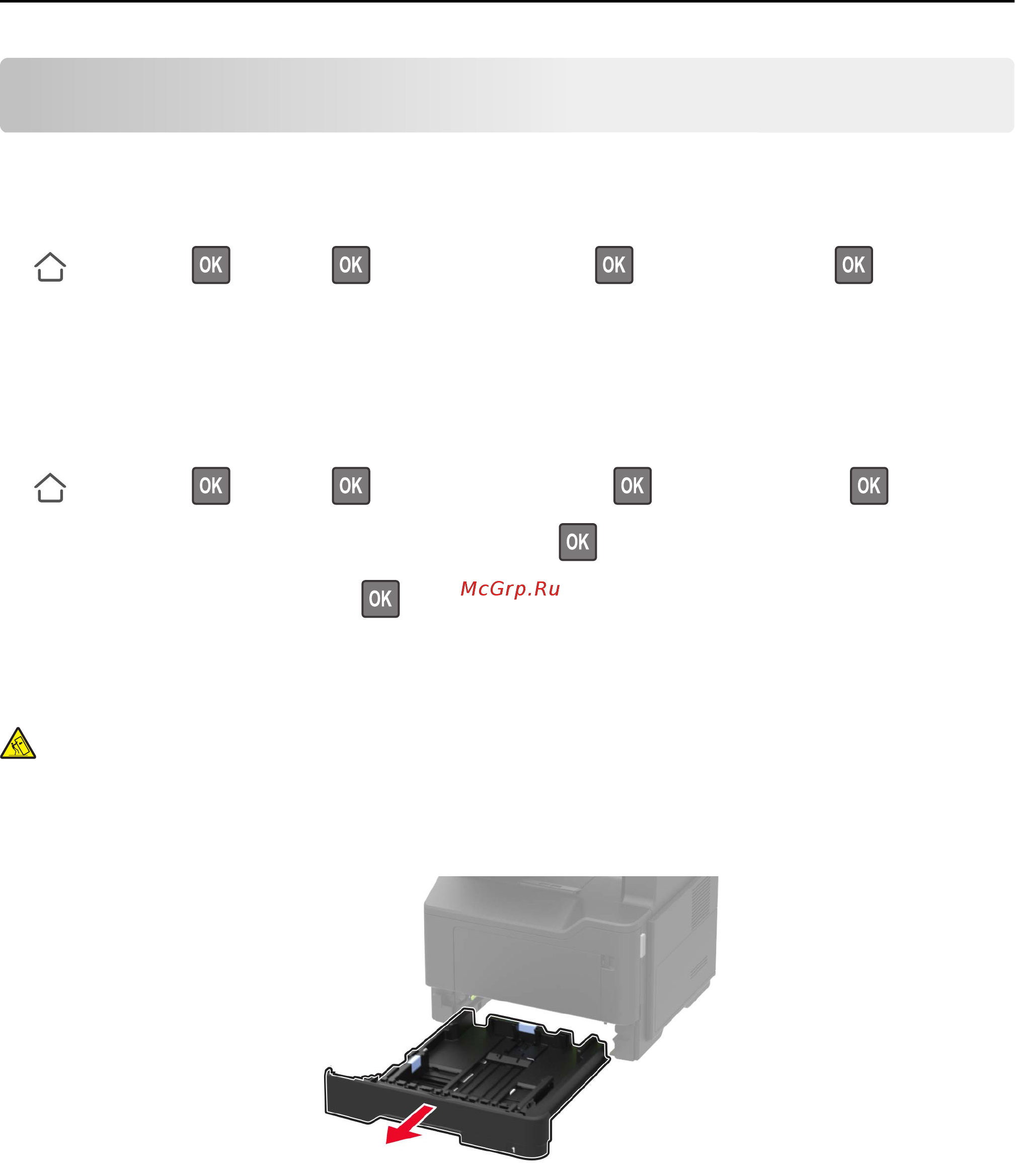

![Konica Minolta BizHub 3622 [15/202] Loading paper and specialty media](/img/pdf.png)
Konica Minolta BizHub 3622 [15/202] Loading paper and specialty media
![Konica Minolta BizHub 3622 [15/202] Loading paper and specialty media](/views2/1712901/page15/bgf.png)
Loading paper and specialty media
Setting the size and type of the specialty media
1 From the control panel, navigate to:
> Settings > > Paper > > Tray Configuration > > Paper Size/Type >
2 Select a paper source, and then configure the size and type of the specialty media.
Configuring Universal paper settings
1 From the control panel, navigate to:
> Settings > > Paper > > Media Configuration > > Universal Setup >
2 Select Portrait Width or Portrait Height, and then press .
3 Adjust the settings, and then press .
Loading trays
CAUTION—TIPPING HAZARD: To reduce the risk of equipment instability, load each tray separately.
Keep all other trays closed until needed.
1 Remove the tray.
Note: To avoid paper jams, do not remove trays while the printer is busy.
Loading paper and specialty media 15
