Konica Minolta BizHub 3622 [121/202] Replacing the pick tires
![Konica Minolta BizHub 3622 [121/202] Replacing the pick tires](/views2/1712901/page121/bg79.png)

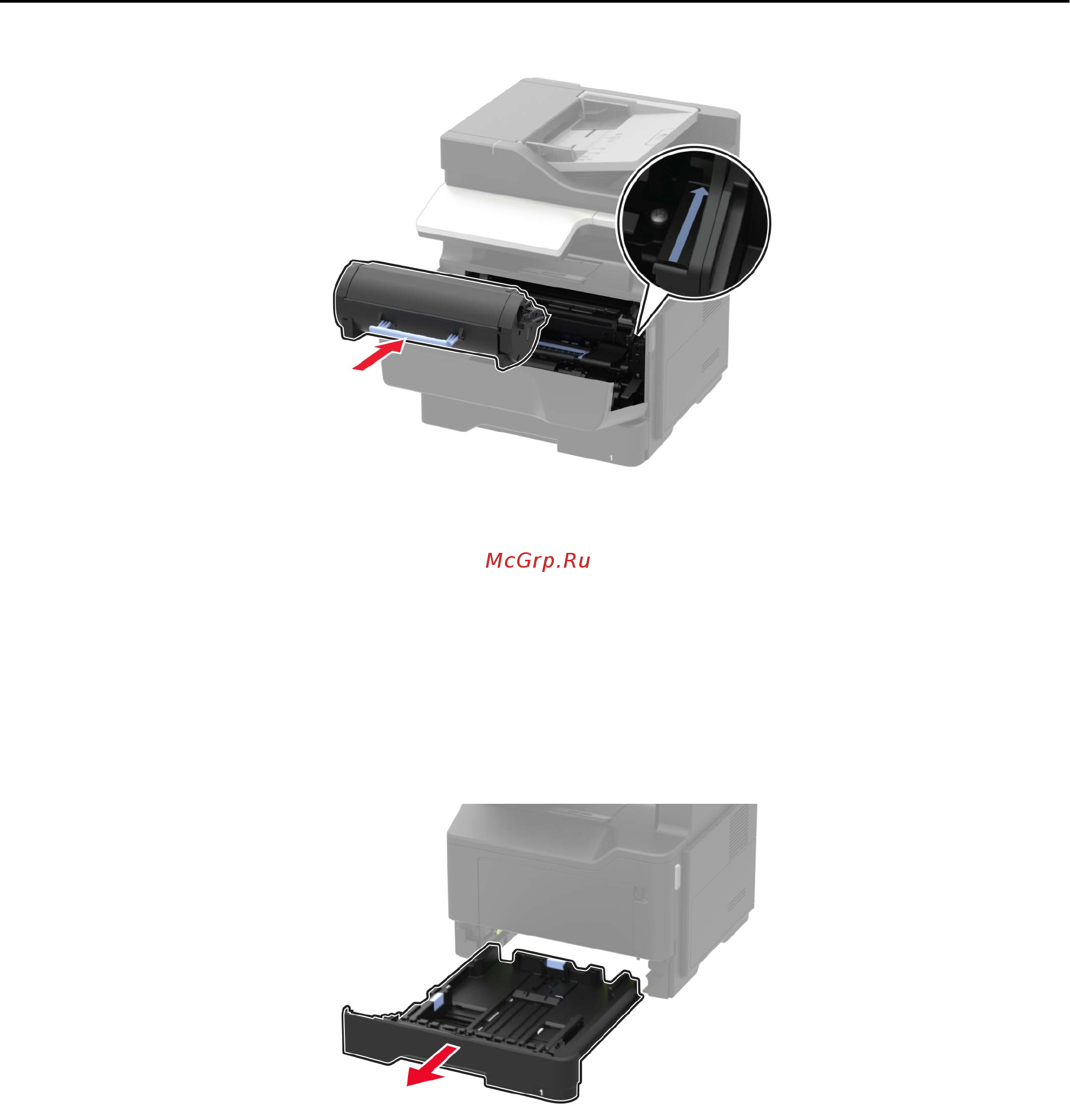

7 Close the front door.
Note: Dispose of the used imaging unit according to your local regulations. Do not burn the imaging unit.
Replacing the pick tires
1 Turn
o
the printer.
2 Unplug the power cord from the electrical outlet, and then from the printer.
3 Remove the tray.
Maintaining the printer 121
