Konica Minolta BizHub 3622 [13/202] Using the control panel
![Konica Minolta BizHub 3622 [13/202] Using the control panel](/views2/1712901/page13/bgd.png)

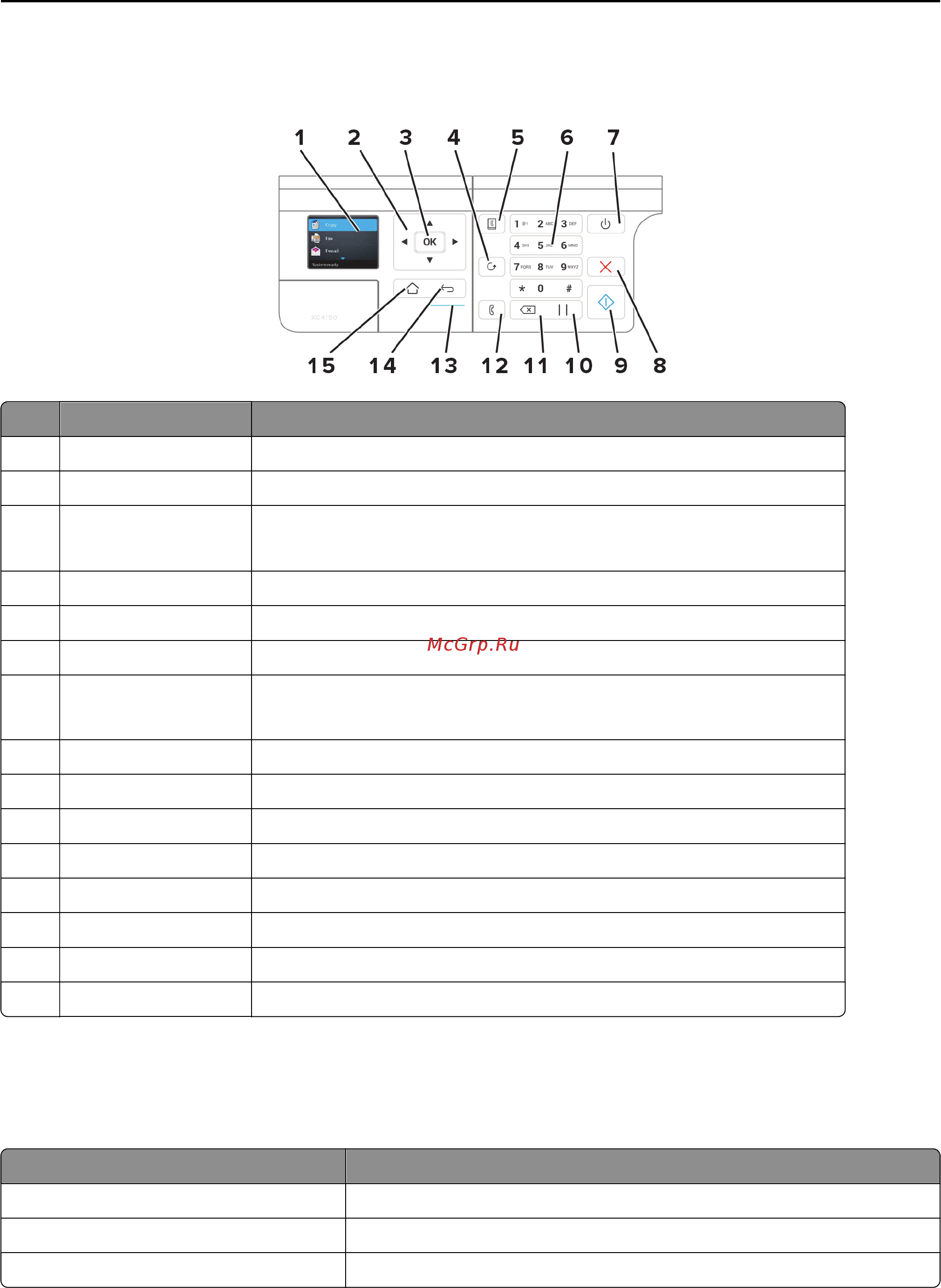

Using the control panel
Use the To
1 Display View printing options, printer status, and error messages.
2 Arrow buttons Scroll through the menus or move between screens and menu options.
3 Select button
• Select menu options.
• Save the settings.
4 Redial button View the last number dialed.
5 Address book button View the stored addresses.
6 Numeric keypad Enter numbers or symbols in an input field.
7 Sleep button Enable Sleep mode.
Note: To enable Sleep mode, press the button twice.
8 Stop or Cancel button Stop the current printer task.
9 Start button Start a printer task, depending on which mode is selected.
10 Pause button Place a dial pause in a fax number.
11 Backspace button Move the cursor backward and delete a character in an input field.
12 Fax button Send faxes.
13 Indicator light Check the printer status.
14 Back button Return to the previous screen.
15 Home button Go to the home screen.
Understanding the status of the sleep button and
indicator light
Indicator light Printer status
O The printer is o or in Hibernate mode.
Blue The printer is ready or processing data.
Red The printer requires user intervention.
Learning about the printer 13
