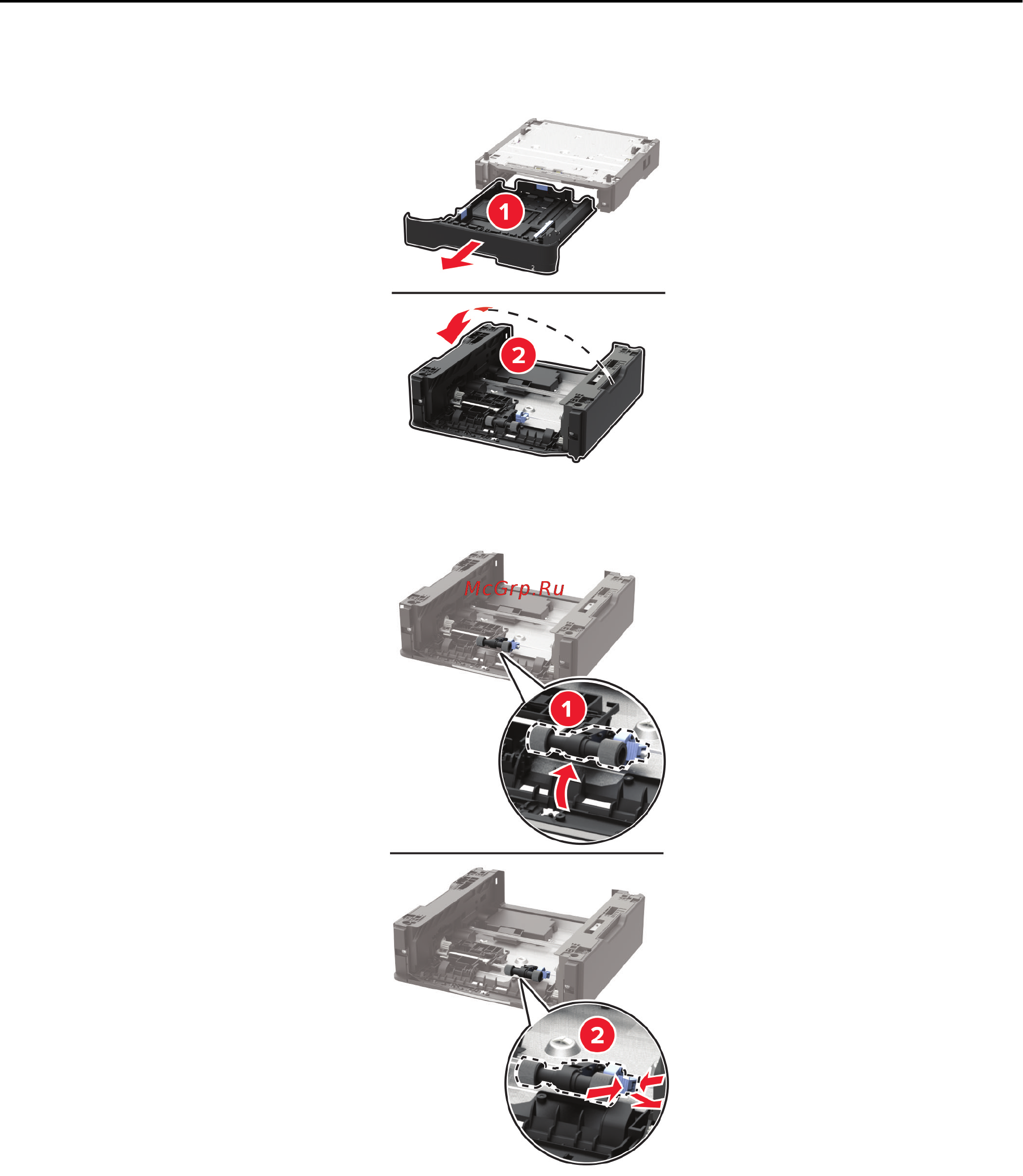

4 Remove the tray insert, and then flip the tray base.
5 Remove the used pick roller assembly.
6 Unpack the new pick roller assembly.
Maintaining the printer 125
