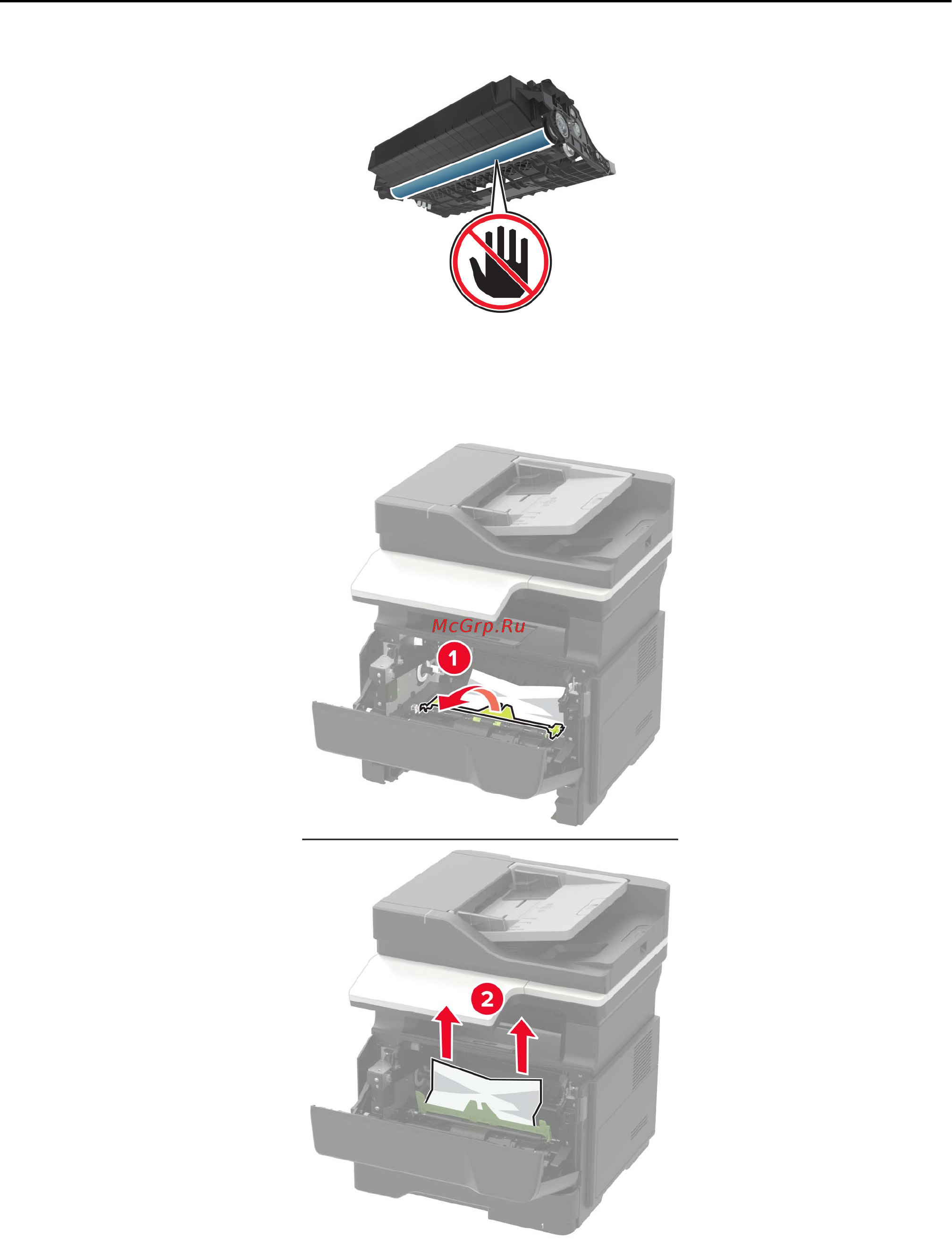

5 Remove the jammed paper.
Note: Make sure that all paper fragments are removed.
6 Insert the imaging unit.
Clearing jams 134
