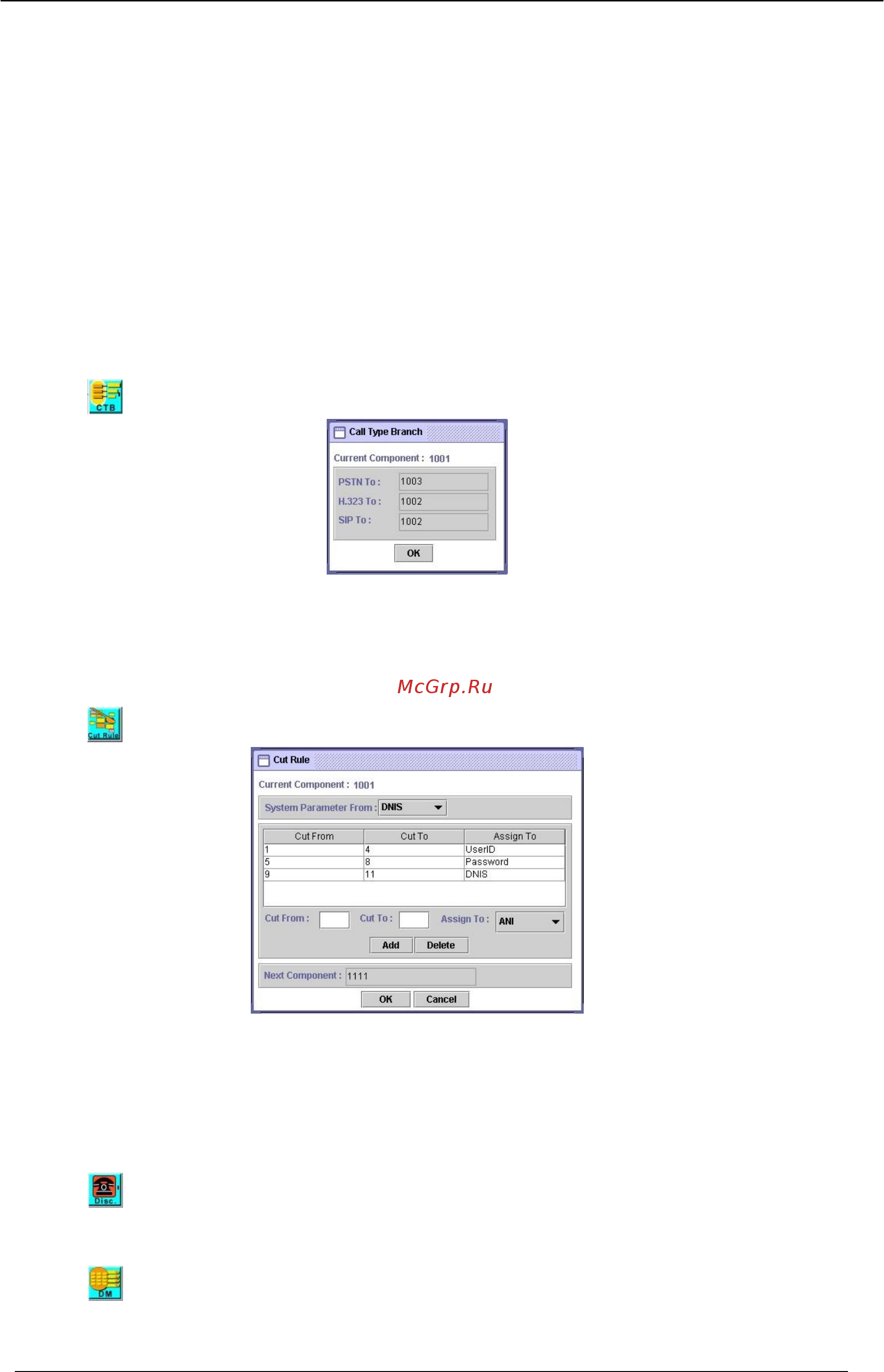

VIP-2100 User’s manual - 31 -

-DNIS: Called number

-ANI: Calling number

-IP: In coming IP address

-User: User ID

o Allow To: If it is met the ACL defined

o Disallow To: If it is not met the ACL defined

• CTB: Call Type Branch

o PSTN To: Route for PSTN call

o H.323 To: Route for H.323 call

o SIP To: Route for SIP call

• Cut Rule: Cut a system variable into different parts

o Cut From: Cut start digit from (start from 1)

o Cut To: Cut end digit to

o Assign To: Store the cutted result into

• Disconnect: Disconnect the call

• DM: Digit Manipulation
