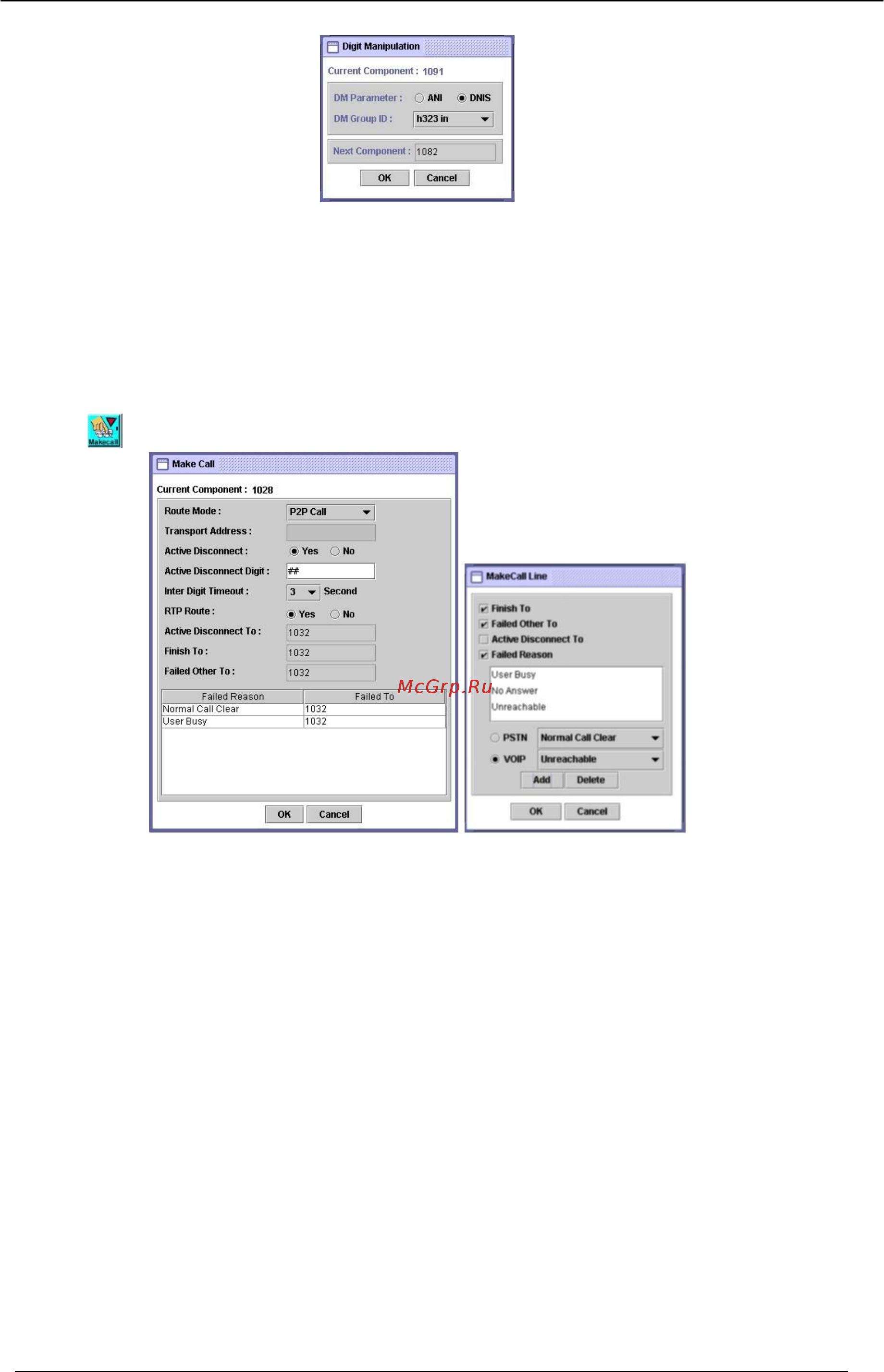

VIP-2100 User’s manual - 32 -
o DM Parameter: Manipulation ANI or DNIS
o DM Group ID: Apply to DM group
• MakeCall: Make Call to PSTN or H.323/SIP site
o Route Mode: Gatekeeper Call or P2P Call or PSTN…etc. (for PSTN
incoming call, please select the Gatekeeper, P2P Call, or SIP Proxy
call TA; for H.323/SIP incoming call, please select the PSTN call)
o Transport Address: When used for “H.323 TA” routing mode, the
format used is “Ipaddr:port” (e.g. 192.168.111.50:1720)
o Active Disconnect: Enable PSTN user can actively disconnect the
call or not
o Active Disconnect Digit: The DTMF digit to be tread as the
disconnect trigger. Only can be used “Active Disconnect” enable
o Active Disconnect To: The next component when active disconnect
is occurred
o Inter Digit Timeout: The max time to in seconds to wait between two
digits.
o RTP Route: Voice RTP routing over VIP-2100 or not, for VoIP to
VoIP call
o Finish To: Successfully connect to remote site
o Failed Other to: The next component when default failed call
o Failed Reason: Failed reason selection
o Failed To: When the failed reason occurred go to
